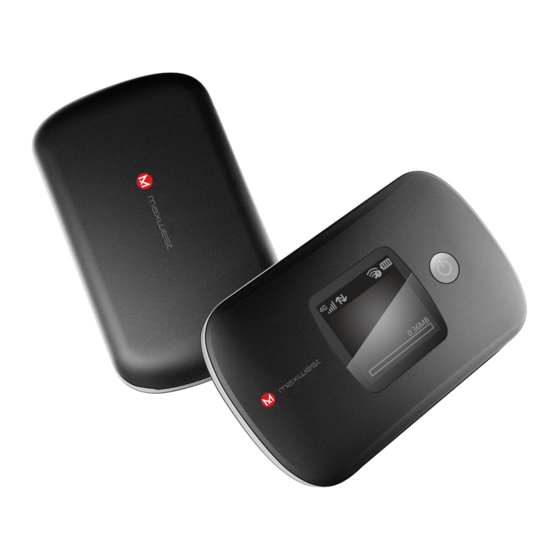

Summary of Contents for MaxWest MX-HUB

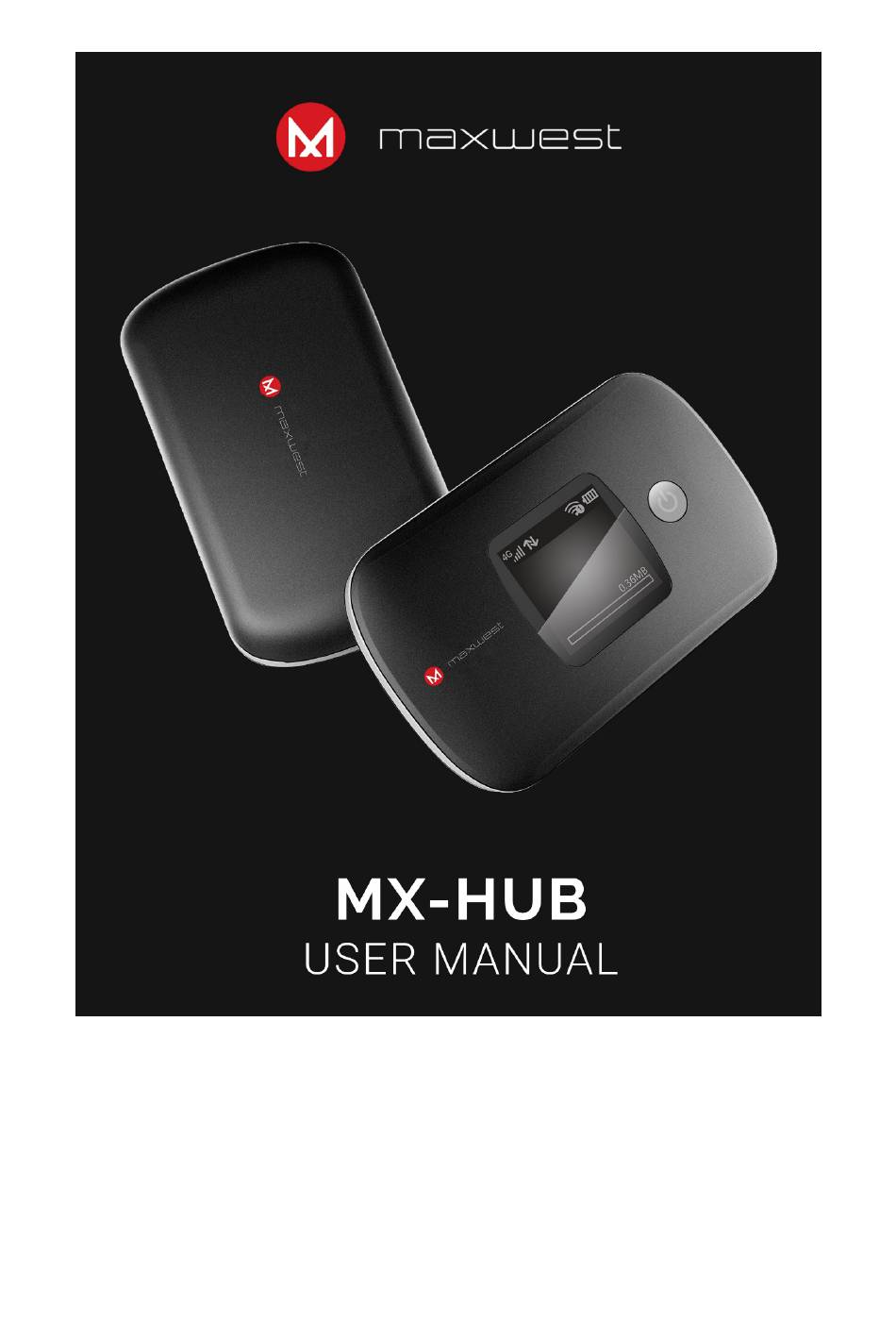

- Page 1 ...
- Page 2 Quick Start Guide ...
- Page 3 Note: This User Guide provides the basic operations of the MX‐HUB. ...
- Page 4 1. Menu button 2. Signal and Roaming status icon 3. Network mode 4. Wi‐Fi signal icon 5. Unread message icon 6. Battery icon 7. Power Button 8. MicroUSB 9. Battery cover ...
- Page 5 Display layout and icon Icon Description Signal and Roaming status icon Network mode icon Data flow icon Wi‐Fi signal and number of access users Thenumber of unread messages，maximum is 100 Battery capacity icon, if battery capacity is lower than 20%, this icon is red. Network Name Statistics, used/total WPS status indicator Install SIM Card and Battery 1. Power off the MX‐HUB 2. Remove the back cover and battery ...
- Page 6 3. Insert the SIM card into card slot in the correct position 4. Install back cover and battery Note： DO NOT remove SIM card when powered on as this may damage the card and MX‐HUB Setting up Wi‐Fi connection or wired connection 1. Press and hold the“power” button for 3 seconds until the welcome logo is displayed on the LCD, and Wi‐Fi is on. 2. Set up Wi‐Fi connection or wired connection as below 3. Make sure MX‐HUB Wi‐Fi function is on 4. Select Start> Control Panel> Network Connections> Wireless Network Connection 5. Click “View available wireless networks” to show a list of available Wi‐Fi networks. 6. Select the wireless network connection with the “MX‐HUB‐XXXX” Wi‐Fi’s SSID and click “Connect”. If the security mechanism is applied, you need to enter the correct network key. The SSID and network key label is available at the battery removal divot. Note:XXXX is the last 4 digits of MAC address(Capital or number).Max Length 32bits. How to change the SSID &Password 1. Log in to http://192.168.1.1or http://mifi.homeand enter the management page. 2. Select Settings>Wireless>WLAN Settings, then you will see “Wi‐FiName(SSID)” and “Password”, Make sure you delete the old name and password and enter the new name and password as you require.
- Page 7 2. Open the browser, and enter http://192.168.1.1or http://mifi.homein the address box. 3. Enter username and password, and click “Login”. The administrator has the right to check and modify configuration permission. Note: The default user name and password is admin. Charging your MX‐HUB method: Charging by power adapter 1. Use compatible power adapter(5V, 1000mA) 2. Power adapter is a selective accessory. method: Charging by connecting to computer or laptop. Please use the proper cable to connect the MiFi to the computer or laptop. Note: If the MX‐HUB hasn’t been used for a long time, please charge the battery before using. Restore Factory Settings If you are uncertain of which Wi‐Fi settings you have configured or changed, you can restore the factory defaults that come with the MiFi to reconfigure the device Wi‐Fi settingby two options: 1. Log into Device Management Website to restore to factory default settings. 2. Press and hold “Reset” button for 5 seconds, and MX‐HUB will be activated again and restored to factory settings. Note: Reset button will delete all the device’s user‐defined Wi‐Fi settings and restore Admin setting and Wi‐Fi Setting to factory default. ...
- Page 8 Q: What to do if I forgot Wi‐Fi Key? A: You can reset the device to factory defaults by press Power key for 8 seconds. Q: What to do if “PIN lock” or “PUK lock”? A: The SIM card is locked. Log into the Web page and Enter your PIN code or PUK code you got from the operator. Note: If you entered wrong PIN 3 times, then PUK is needed, and if the wrong PUK entered 10 times, the SIM card will be locked forever. Q: Data connectionfailed. A: You have nonetwork coverage.Try moving location until youget good reception. Q: The modem cannot connect to the internet when overseas A: You don’t have international roamingenabled on your plan. Consult your service providerbefore you go overseas toenable roaming. Note: 1. Caution: Risk of explosion if battery is replaced with an incorrect or unapproved type. Use batteries must dispose according to the manufacturer’s instructions. 2. The product shall only be connected using a USB interface of version USB 2.0. 3.
- Page 9 Warning Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class ...
Need help?
Do you have a question about the MX-HUB and is the answer not in the manual?
Questions and answers
Replacement battery & part number
The replacement battery part number for the MaxWest MX-HUB is BLP751.
