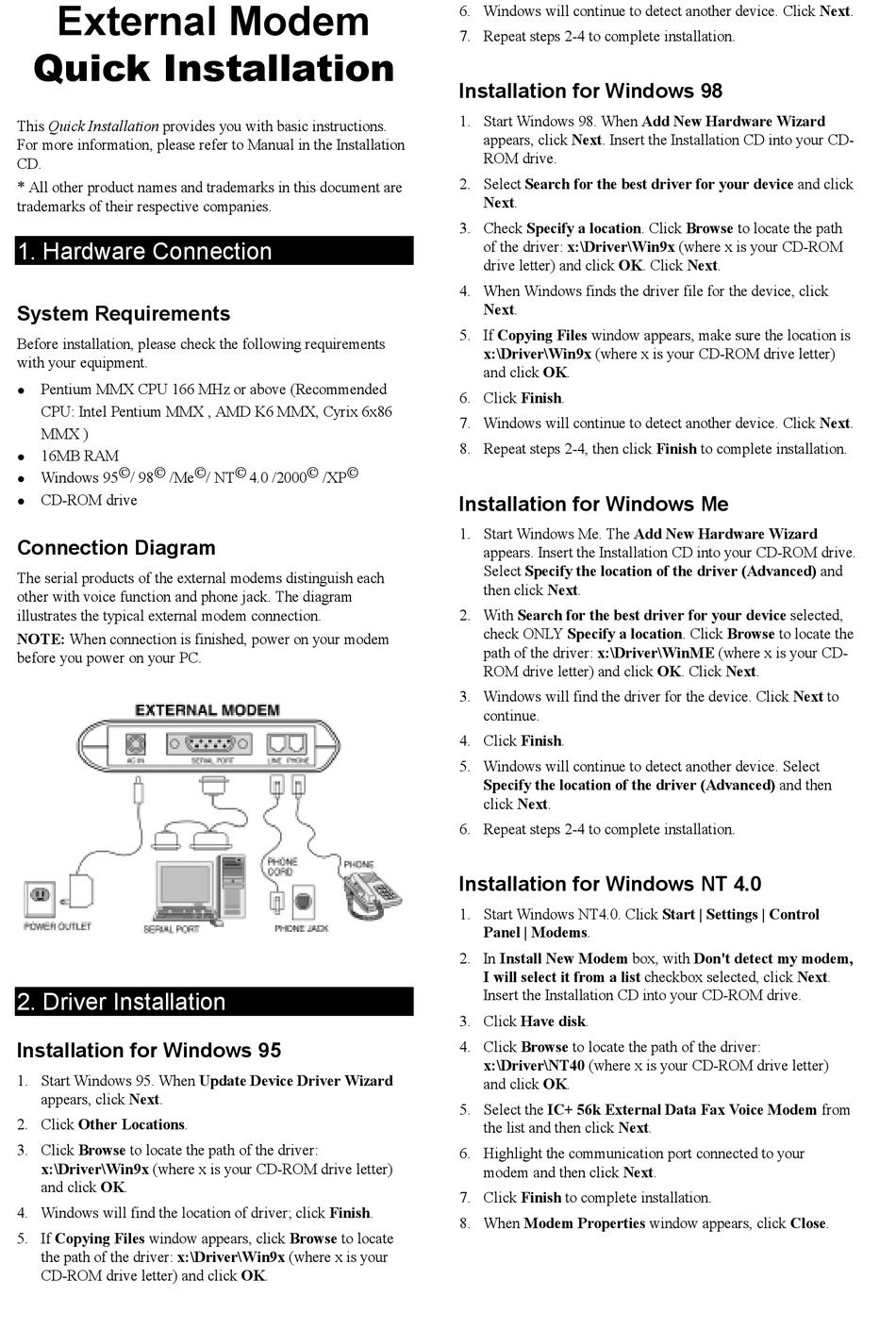

Airlinkplus AME001 Quick Installation Manual

External Modem

Quick Installation

This Quick Installation provides you with basic instructions.
For more information, please refer to Manual in the Installation
CD.
* All other product names and trademarks in this document are
trademarks of their respective companies.
1. Hardware Connection

System Requirements

Before installation, please check the following requirements
with your equipment.
Pentium MMX CPU 166 MHz or above (Recommended
!
CPU: Intel Pentium MMX , AMD K6 MMX, Cyrix 6x86
MMX )
16MB RAM
!
Windows 95 / 98 /Me / NT 4.0 /2000 /XP
!
CD-ROM drive
!

Connection Diagram

The serial products of the external modems distinguish each
other with voice function and phone jack. The diagram
illustrates the typical external modem connection.
NOTE: When connection is finished, power on your modem
before you power on your PC.
2. Driver Installation
Installation for Windows 95
1. Start Windows 95. When Update Device Driver Wizard
appears, click Next.
2. Click Other Locations.
3. Click Browse to locate the path of the driver:
x:\Driver\Win9x (where x is your CD-ROM drive letter)
and click OK.
4. Windows will find the location of driver; click Finish.
5. If Copying Files window appears, click Browse to locate
the path of the driver: x:\Driver\Win9x (where x is your
CD-ROM drive letter) and click OK.
6. Windows will continue to detect another device. Click Next.
7. Repeat steps 2-4 to complete installation.
Installation for Windows 98
1. Start Windows 98. When Add New Hardware Wizard
appears, click Next. Insert the Installation CD into your CD-
ROM drive.
2. Select Search for the best driver for your device and click
Next.
3. Check Specify a location. Click Browse to locate the path
of the driver: x:\Driver\Win9x (where x is your CD-ROM
drive letter) and click OK. Click Next.
4. When Windows finds the driver file for the device, click
Next.
5. If Copying Files window appears, make sure the location is
x:\Driver\Win9x (where x is your CD-ROM drive letter)
and click OK.
6. Click Finish.
7. Windows will continue to detect another device. Click Next.
8. Repeat steps 2-4, then click Finish to complete installation.

Installation for Windows Me

1. Start Windows Me. The Add New Hardware Wizard
appears. Insert the Installation CD into your CD-ROM drive.
Select Specify the location of the driver (Advanced) and
then click Next.
2. With Search for the best driver for your device selected,
check ONLY Specify a location. Click Browse to locate the
path of the driver: x:\Driver\WinME (where x is your CD-
ROM drive letter) and click OK. Click Next.
3. Windows will find the driver for the device. Click Next to
continue.
4. Click Finish.
5. Windows will continue to detect another device. Select
Specify the location of the driver (Advanced) and then
click Next.
6. Repeat steps 2-4 to complete installation.
Installation for Windows NT 4.0
1. Start Windows NT4.0. Click Start | Settings | Control
Panel | Modems.
2. In Install New Modem box, with Don't detect my modem,
I will select it from a list checkbox selected, click Next.
Insert the Installation CD into your CD-ROM drive.
3. Click Have disk.
4. Click Browse to locate the path of the driver:
x:\Driver\NT40 (where x is your CD-ROM drive letter)
and click OK.
5. Select the IC+ 56k External Data Fax Voice Modem from
the list and then click Next.
6. Highlight the communication port connected to your
modem and then click Next.
7. Click Finish to complete installation.
8. When Modem Properties window appears, click Close.
