Summary of Contents for Abra AK-130

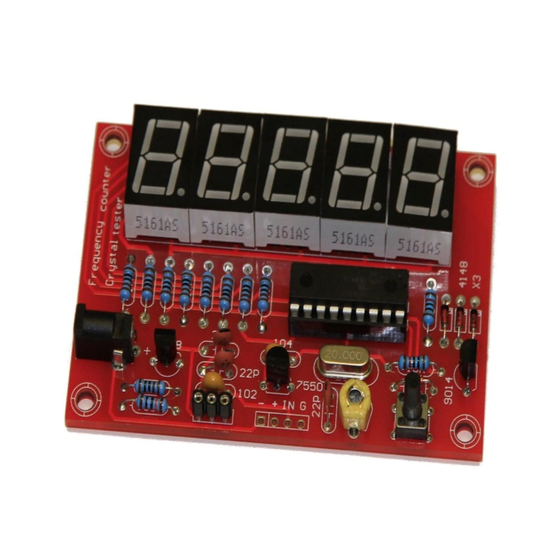

- Page 1 D.I.Y FREQUENCY COUNTER/CRYSTAL TESTER Level: Intermediate AK-130...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Parts List ..............................2 Soldering Guide ............................3 Wiring Guide .............................. 4 Features Guide ............................4 Appendix ..............................5 PARTS LIST Please make sure that the following pieces are included in your kit Components PCB Reference Number Quantity 1kΩ... -
Page 3: Soldering Guide
SOLDERING GUIDE 1. Turn on the soldering iron to 360º F - 370º F (182º C - 188º C) using Tin-Lead 60/40 solder. 2. Flip the board on the side where all the schematics are shown. Then, place the IC socket on the board where the white rectangle marked TB-244746/PIC16F628 can be seen. -
Page 4: Wiring Guide
WIRING GUIDE 1. First, either plug in an adapter in the Female DC Barrel Jack or connect the power wire (red wire) of a battery holder (preferably 9V Battery Holder) to the positive sign on the board and the ground wire (black wire) of the battery holder to the negative sign on the board. -
Page 5: Appendix
For example, if we have Brown, Black and Red, the value of the resistor will be 10 multiplied by 100 which gives 1k, which is the resistor in our case. You can download the manual from abra-electronics.com and search for AK-130. Vous pouvez télécharger le Manuel sur abra-electronics.com en cherchant pour AK-130.
