HPSDR HERCULES Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
...the Making of
HERCULES
High Performance Software Defined Radio
Open Source Hardware and Software Project
Project Description: http://openhpsdr.org
Hardware Project #6

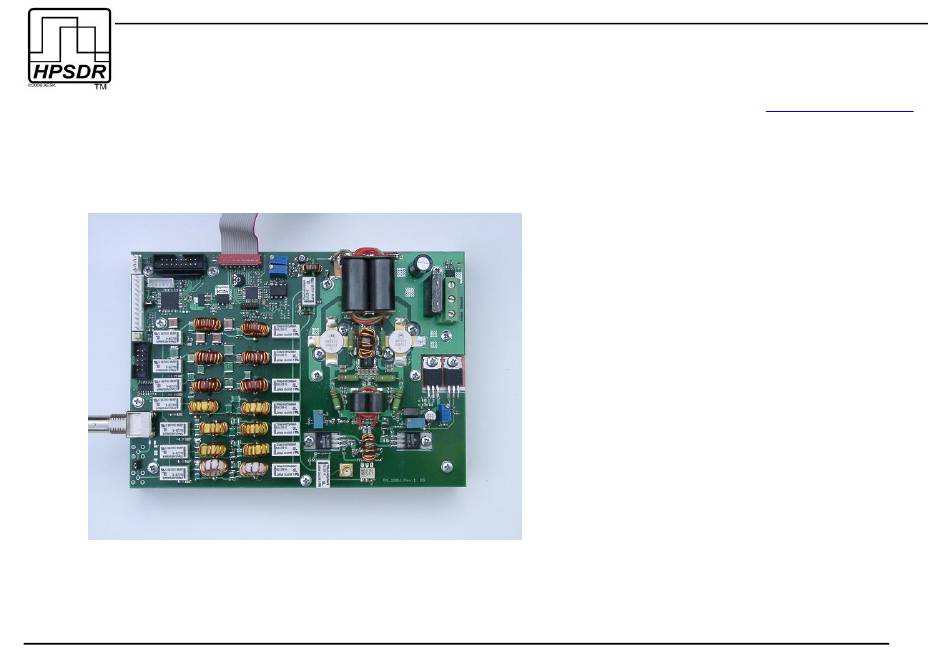

HERCULES Board
Part #2
The Making of HERCULES
Schematics / Board Design
Gerd Loch, DJ8AY
Text
Horst Gruchow, DL6KBF
Graphics and Layout
Horst Gruchow, DL6KBF
1
© DL6KBF 2010 Ver. 1.3
DJ8AY100W PA for PENELOPE incl. Low Pass Filtering for 160m to 6m --- MicroProcessor Controlled and Protected
