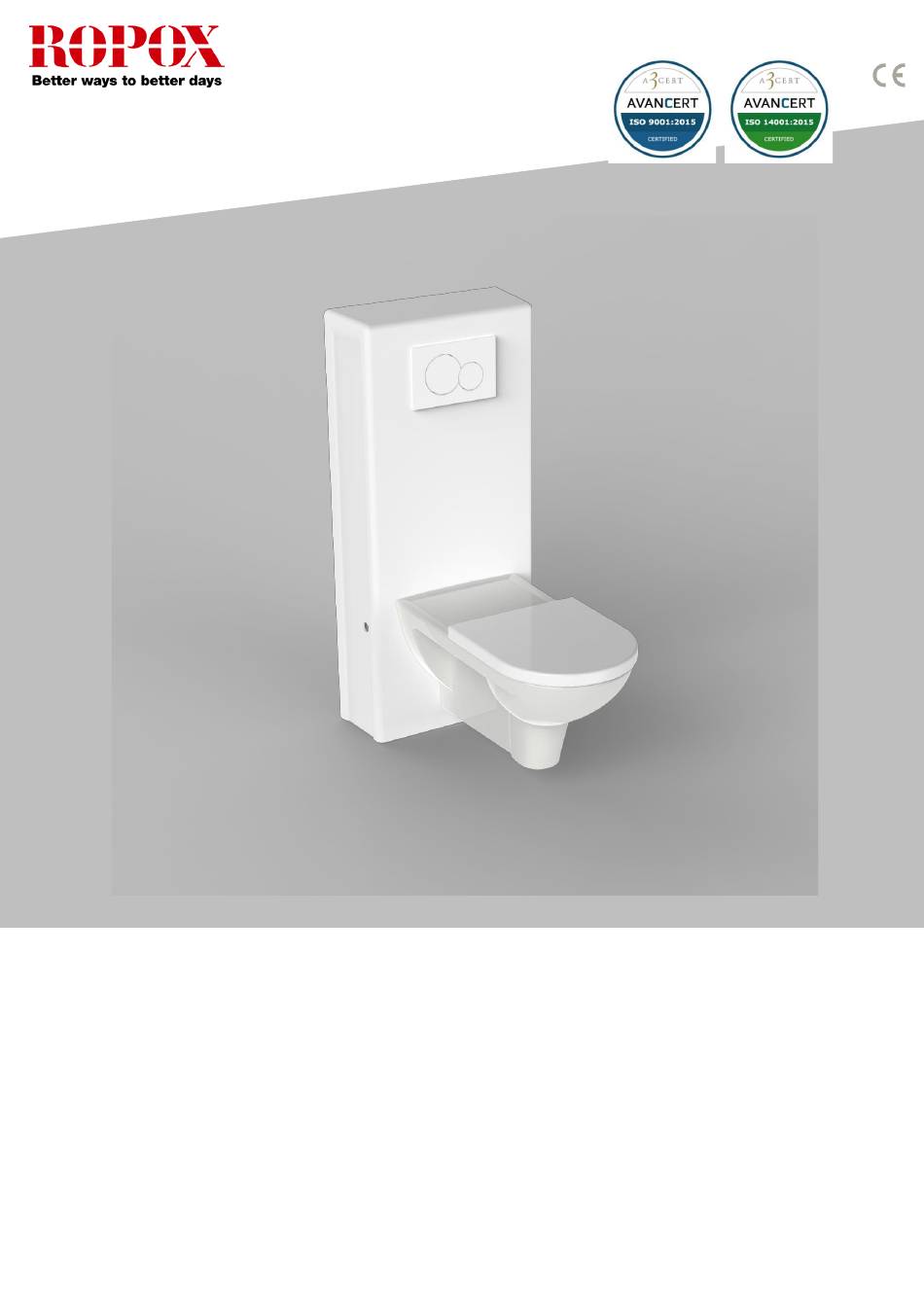

ROPOX Toilet lifter Electric
User manual
This manual should always be in close proximity of the
product.
TF 200.06.0006_ENG / Date 26-04-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-45027 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ropox 40-45027

  • Page 1 ROPOX Toilet lifter Electric User manual This manual should always be in close proximity of the product. TF 200.06.0006_ENG / Date 26-04-2021...
  • Page 2: Table Of Contents

    TF 200.06.0006_ENG Table of content Symbols used in this manual ........................3 General safety ............................3 Product Unit label ........................5 General requirements ..........................6 3.1 Product information ........................6 3.2 Product description ........................7 3.3 Intended use..........................7 3.4 Intended operator .......................... 7 3.5 Essential performance ........................
  • Page 3: Symbols Used In This Manual

    TF 200.06.0006_ENG 1. Symbols used in this manual Warning Symbol Indication of potentially hazardous situation. If not avoided it can result in serious injury or death. Caution Symbol Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices.
  • Page 4 The information in this manual is based on correct installation in accordance with installation instructions for this product. Ropox cannot be held liable if the product is used in any way that differs from stated in this manual and/or installation instruction.
  • Page 5: Product Unit Label

    TF 200.06.0006_ENG 2.1 Product Unit label This product is CE-marked in accordance with: European Medical Device Directive 93/42/EEC, including amendments incorporated in Directive 2007/47/EEC. European Medical Device Regulation (EU)2017/745 Council Directive 2006/42/EC on machinery Council Directive 2011/65/EU, RoHS Manufacturer name and address Date of production Stock number Serial number...
  • Page 6: General Requirements

    TF 200.06.0006_ENG 3. General requirements 3.1 Product information Manufacturer: Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Email: Info@ropox.com Product models Part number Model Configuration 40-45027 Toilet lifter Electric Expected service life 5 year according to ISO...
  • Page 7: Product Description

    Ryglæn, Short (56cm Toilet) 3.2 Product description The ROPOX toilet lifter electric can be set in heights ranging from 405-655mm by the use of the wireless handset. Height adjustment will meet different sitting height needs various patient heights. 3.3 Intended use The ROPOX height adjustable toilet lifter is intended to be used in both homecare and professional healthcare environments.
  • Page 8: Product Dimensions

    TF 200.06.0006_ENG 3.8 Product dimensions...
  • Page 9: Instructions For Use

    TF 200.06.0006_ENG 4. Instructions for use 4.1 Installation of product 4.1.1 Installation interface...
  • Page 10: Construction

    TF 200.06.0006_ENG 4.1.2 Construction Notification! The toilet lifter is supplied with a set of 6 screws and rawlplugs suitable for mounting in a concrete wall. The fitter should always consider the material, condition, and strength of the wall and use screws and rawlplugs suitable for the specific wall type. Caution! Maximum pulling force per screw is 44kg, at 400kg max user weight according to ISO 17966: 2016...
  • Page 11: Mounting The Product

    TF 200.06.0006_ENG 4.1.3 mounting the product. a. Line up frame with threaded foots. Mark holes 6X and drill holes for appropriate rawl plugs b. Connect water hose on wall outlet and electric outlet before securing frame to the wall c. Secure frame to wall...
  • Page 12 TF 200.06.0006_ENG d. Mount the drain bellow as instructed below Drain finished at floor level: Flex pipe is mounted on the drain adapter with a hose clamp, which is then pressed into the drain. Make sure the bellow is not twisted...
  • Page 13 TF 200.06.0006_ENG Mount the bellow as shown below for correct flow...
  • Page 14: Pair Bluetooth

    TF 200.06.0006_ENG 4.1.4 Pair Bluetooth Notification! Pair the remote to the product and test full stroke before continuing installation !
  • Page 15 TF 200.06.0006_ENG Notification! When pairing is complete test product stroke. Make sure all cables, water connection and drain connection travels freely. The electrical connection shall travel unhindered, and may not get intangled in other installations.
  • Page 16 TF 200.06.0006_ENG e. Cut threaded rods to length and secure them in the frame. f. Mount inner covers 1 and 2...
  • Page 17 TF 200.06.0006_ENG g. Mount outer cover...
  • Page 18 TF 200.06.0006_ENG h. Shorten Ferrule and flush pipe to length and mount them...
  • Page 19 TF 200.06.0006_ENG i. Mount the toilet and press pad j. Finish the installation by checking: 1. Rigidity test, sit on the toilet and check screw connections are firm. 2. Check full travel of the product goes unhindered 3. Check flushing and leaks.
  • Page 20: Operating The Product

    TF 200.06.0006_ENG 4.2 Operating the product Operating the product is done by using the wireless handset. Pairing should be done prior operation. Warning! The product should always be able to travel the full range of actuation without colliding with objects. Failing to do so will compromise the product stability. Special care should be taken in ensuring that no children or adults are sited under the product as severer injury from entrapment may occur.
  • Page 21: Installation Of Accessories

    TF 200.06.0006_ENG 4.4 Installation of accessories 4.4.1 Installation of height adjustable toilet support arms a. attach housing to the profile with 3x M6x12 and 1x M6x16. Use a locking nut on M6x16. b. Mount M6 buttonhead screws on both sides. Leave about 5mm clearence between underside of screw head to the plastic cover.
  • Page 22 TF 200.06.0006_ENG c. Slide the assembly on the two screw heads and attach the assembly with the two M6x30 as shown on the next image.
  • Page 23 TF 200.06.0006_ENG...
  • Page 24 TF 200.06.0006_ENG d. Slide in the cover and end rubber cap...
  • Page 25 TF 200.06.0006_ENG...
  • Page 26: Installation Of Backrest

    TF 200.06.0006_ENG 4.4.2 Installation of backrest If Ropox Back Support, long is ordered together with Ropox Toilet Lifter, there will be pre-drilled holes in the cover cap. If the back support is ordered later for subsequent mounting, please see the dimension drawing for the location of holes.
  • Page 27: Trouble Shooting

    TF 200.06.0006_ENG 5. Trouble shooting Product wont work Check pairing of handset Check that all wires are pressed in sockets. Product stop working Check batteri on handset. 6. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product.
  • Page 28: Periodic Maintenance

    8. Components part list Notification! Ropox will make parts list and circuit diagrams available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel.
  • Page 29: Electromagnetic Compatibility

    TF 200.06.0006_ENG 10. Electromagnetic compatibility 10.1 Suitable Environments The device is suitable for use at home, at daycare centres, at day centres for persons with physical or mental disabilities or at hospitals except near active HF surgical equipment and the RF shielded room of an medical electrical system for magnetic resonance imaging, where the intensity of electromagnetic disturbances is high.
  • Page 30: Accident Reporting

    TF 200.06.0006_ENG 11 Accident reporting The manufacturer of this product recommends any accident with this product that meets all of the following criteria reported to the appropriate authority as well as to the manufacturer. 1. There has been or could have been an event 2.
