Summary of Contents for Midstream Titan Series

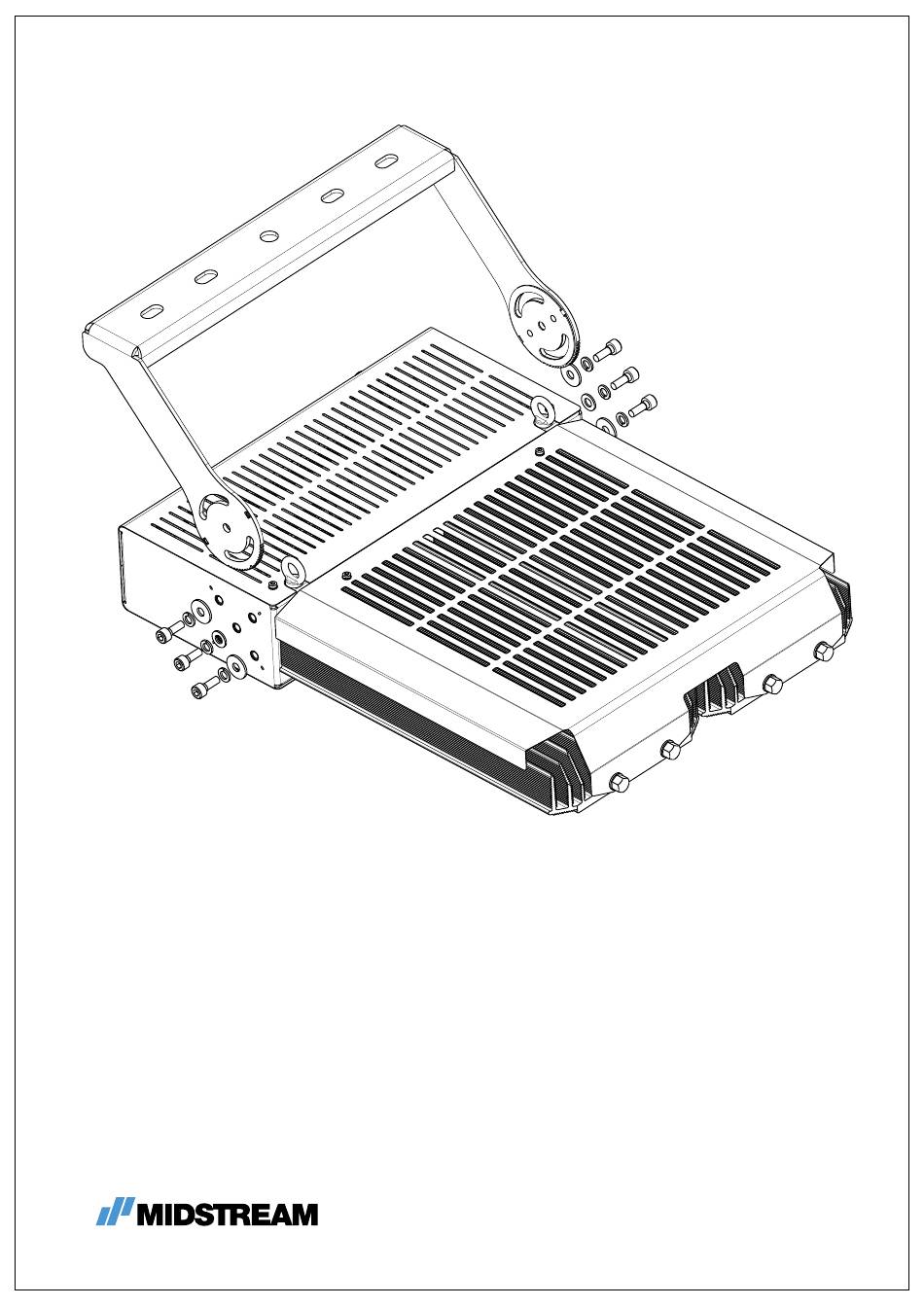

  • Page 1 INSTALLATION GUIDANCE Titan Series...

  • Page 2: Safety Instructions

    The luminaire is not to be Hard hats, safety placed face down on any shoes, Hi-Vis vest and surface other than the safety gloves must provided foam pad always be worn TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...

  • Page 3: Mounting Accessories

    MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent.

  • Page 4: Electrical Connection

    Insert the socket into the housing until the inner part Insert the gasket. Do not apply mains voltage through the “clicks” in and then insert the gasket. control System plug. This will damage the luminaire. TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...
  • Page 5 Connect the safety The luminaire bracket can be oriented as shown in the cable to the holding frame. following pictures, choose the more suitable configuration to your application. INSERT SAFETY CABLE LEFT --OR-- RIGHT TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...

  • Page 6: Electrical Specifications

    If in doubt, consult your local waste disposal facility. TITAN 160 TITAN 220 TITAN 320 TITAN 420 TITAN 560 TITAN 720 Weight 12.5kg 13.6kg 20kg 24kg 24kg 34kg Windage Area 0.038 m 0.043 m 0.045 m 0.049 m 0.049 m 0.085 m TITAN SERIES INSTALLATION GUIDANCE midstreamlighting.com +44 (0) 207 584 8310...
  • Page 7 For translations, digital versions or more information please head to https://www.midstreamlighting.com/installation-guides European HQ Midstream Ltd. Wessex House, 1 Chesham Street, London SW1X 8ND, United Kingdom Te: +44 207 584 8310 E: info@midstreamlighting.com US HQ Midstream Lighting Ltd. 66 West Flagler Street,...

This manual is also suitable for:

Titan 160Titan 220Titan 320Titan 420Titan 560Titan 720
