Space Saver Anchor Instructions • Model GT-102
ANCHOR
HOLE
LOCATION
View from top

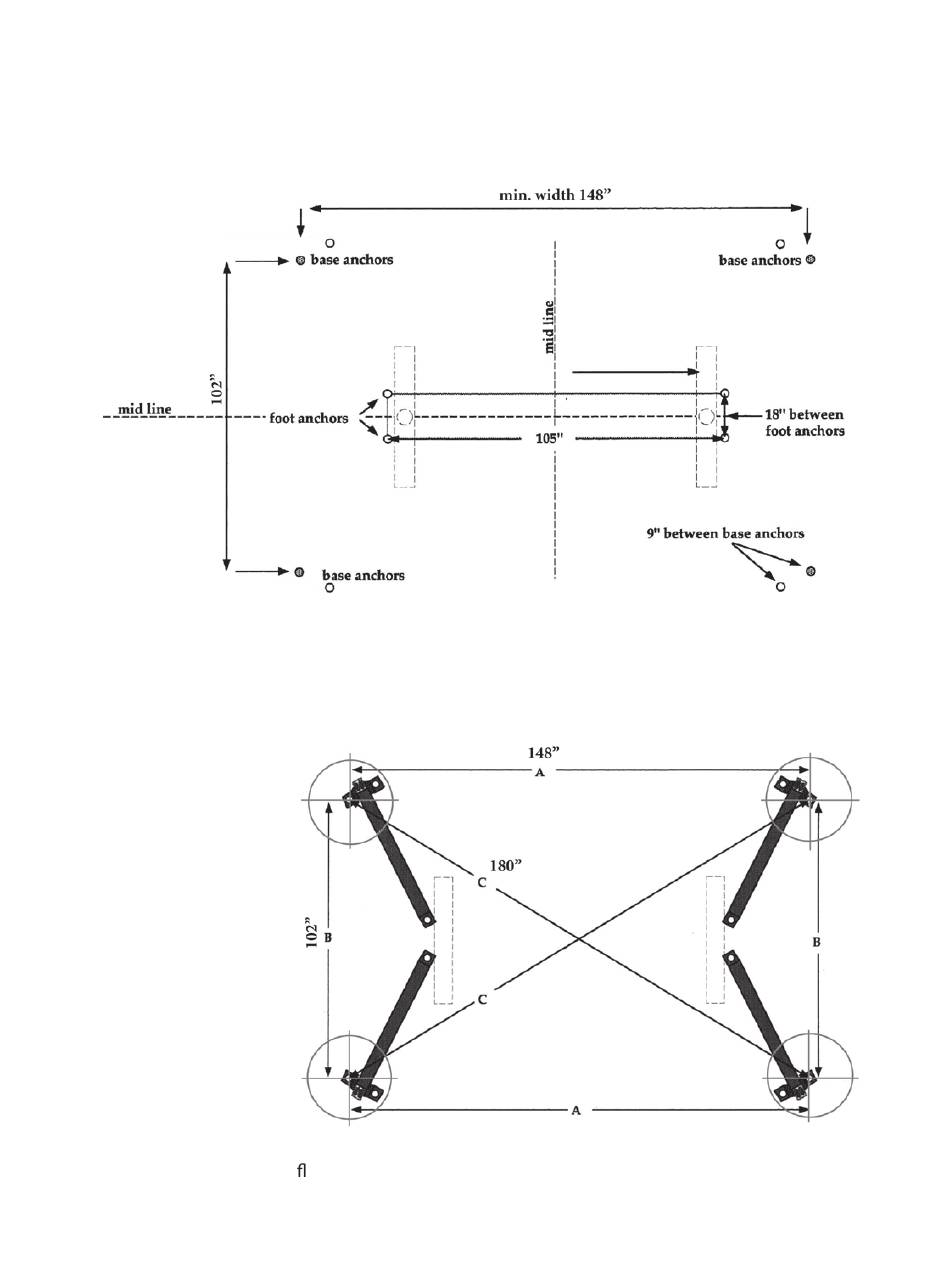

STEP 1 - After determining where the apparatus will be placed, draw a rectangle 18" x 105" centered
where the bases will be. The foot anchors should be placed in the corners of this rectangle.
STEP 2 - Once the foot anchors are in, loosely bolt in the feet of all four Space Saver arms.
Swing the arms into approximate position.
LOCATION OF
BASE ANCHORS
AND MOUNTING
THE ARMS
View from top
STEP 3 - Using the outside base plate holes (crossed circles) measure the distances for A, B and C.
When A = A, B = B and C = C the oor layout is correct. A common dimension is A = 148", B = 102" and C = 180".
Mark the eight base plate holes through the base plates (9" between base anchors) and mount the base anchors.
STEP 4 - Finish bolting in the arms (3 anchors per arm and tighten.
