Summary of Contents for Ronix 3411

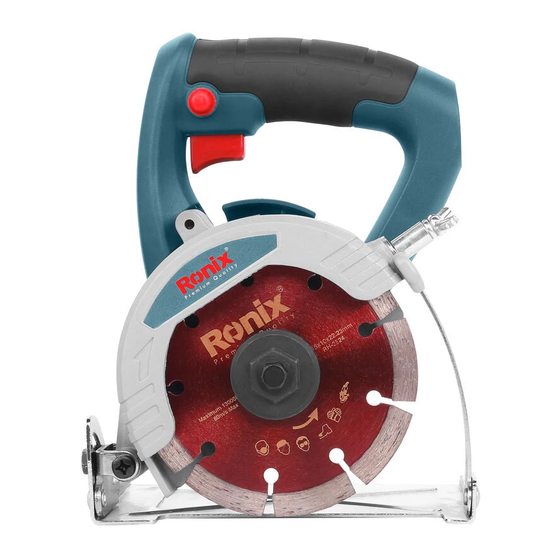

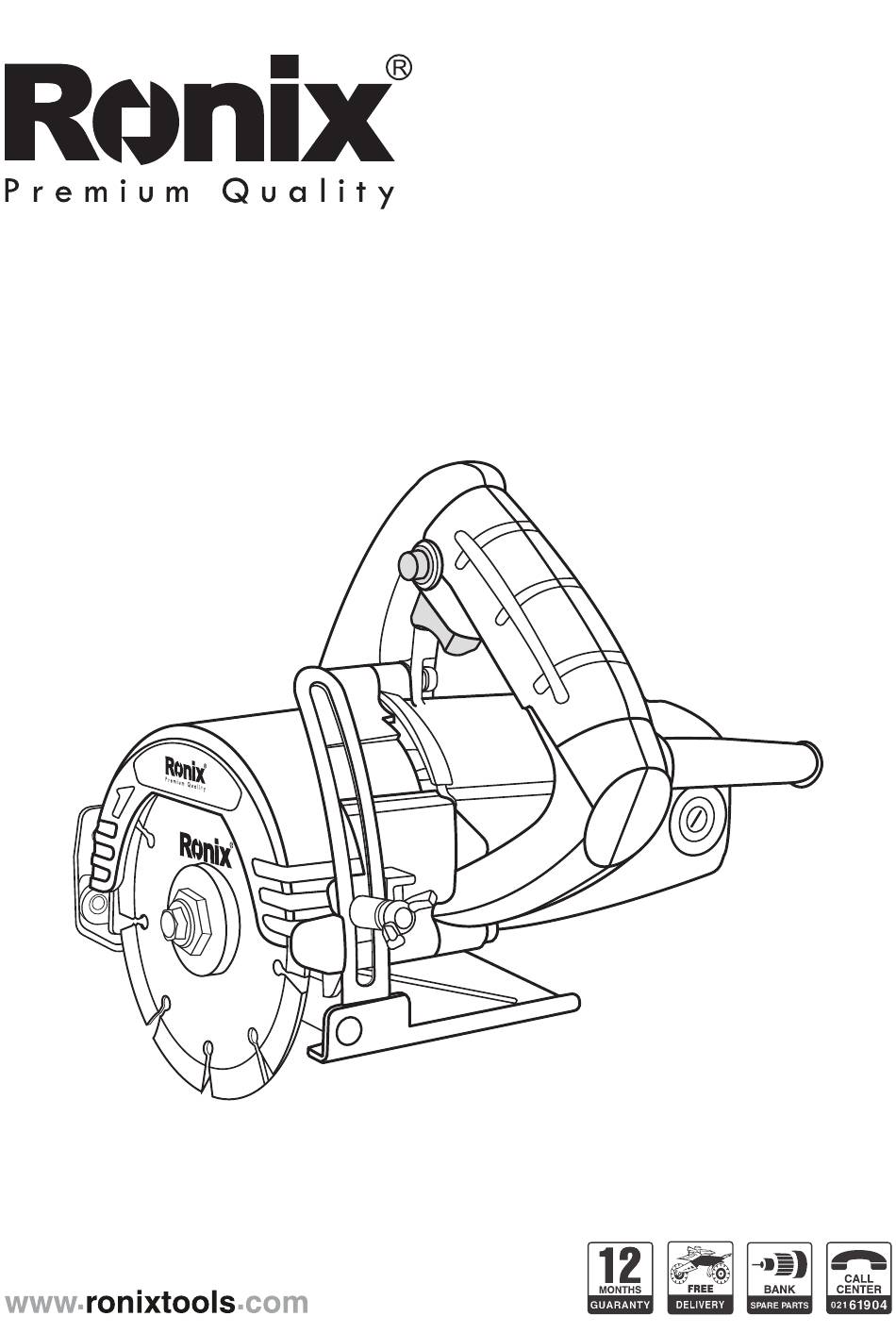

- Page 1 MARBLE CUTTER 3411...
-
Page 2: Specification
SPECIFICATION Model 3411 Rated power 1500W Rated voltage 220V Frequency 50HZ No Load Speed 14000RPM Dia. of saw blade O I 115mm max cutting capacity 34mm Net. Weight 3 Kg PARTS LIST Lock on button Switch trigger Fix screw of... -
Page 3: Work Area
NOTE Please keep this instruction manual for future reference. Operating Instructions Please read the operation instructions meticulously and pay particular attention to the safety instructions. WARNING! When working with electrical device the following prevention and safety instructions are to be observed to avoid fires, electric shocks and physical injuries. -
Page 4: Personal Safety
shock if your body is earthed or grounded. - Do not expose power tools to rain wet conditions. Water entering a power tool will increase the risk of electric shock. - Do not abuse the cord. Never use the cord of carrying, pulling or unplugging the power tool. - Page 5 Use of the power tool for operations different from intended could result in a hazardous situation. SERVICE - Have your power tool Serviced by a qualified repair person at RONIX SERVICE using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
-
Page 6: Special Safety Information
- This tool meets the relevant safety requirements! - During operating, wear hearing protection to avoid damage to your hearing! SPECIAL SAFETY INFORMATION NOTE Please read the following instructions first before turning on power - The working site shall be neat, operating field also requires a neat environment;... -
Page 7: Operation And Use
OPERATION & USE ASSEMBLY AND ADJUSTMENTS WARNING! Prior to assembly and adjustment, always unplug tool. - To remove and install the blade 1) Place saw on a stable surface. 2) To remove the blade, hold the outer flange, using the wrench provided. Remove the blade screw by turning it clockwise. - Page 8 ADJUST THE DEPTH GAUGE FOR STRAIGHT CUTS 1) Release the depth adjustment knob. 2) Pull the base plate to the desired position. 3) Tighten the knob. ADJUSTING CUTTING WIDTH 1) User can get the desired width by adding or reducing the adjusting flange in the middle of two diamond-cutting discs.
- Page 9 RECYCLING Meaning of crossed – out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
