Summary of Contents for InoTec inoMIX S16

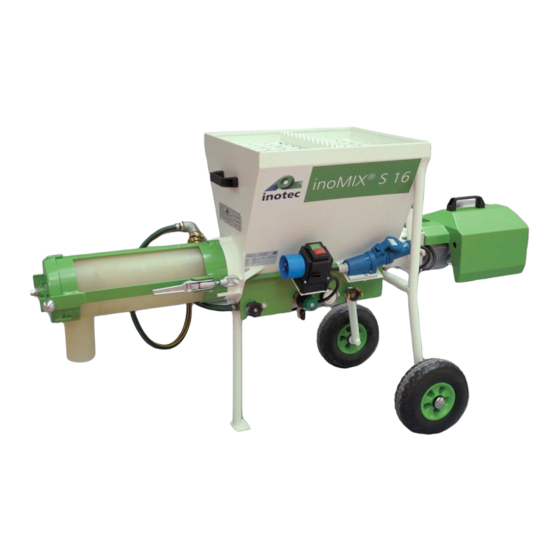

- Page 1 Operating Manual inoMIX S16 continuous mixer Read this entire original operating manual before starting work.
- Page 2 Thank you for trusting INOTEC. By purchasing you have opted for a quality product. If you have any suggestions or any issues, we would be delighted to hear your suggestions for improvement and your feedback. Speak to the sales representative assigned to you or, in urgent cases, contact us directly.
-
Page 3: Table Of Contents
3.7 Mixing shaft ...............................9 3.8 Noise emissions ..............................9 3.9 Operating conditions ............................9 4 Assembly and function ........................... 10 4.1 Scope of delivery of inoMIX S16 (item no. 10039462) ..................10 4.2 Functionality ..............................10 4.3 Components ..............................10 4.3.1 Description of the components ............................10 4.3.1.1 Main frame with material hopper incl. - Page 4 12.3 Disposal ................................29 13 Systems ..............................30 13.1 EC declaration of conformity ........................30 13.2 General Terms of Business of the company INOTEC GmbH ................31 13.3 Circuit diagram for inoMIX S16 ........................32 14 Order form .............................. 33 15 Index ............................... 34 16 Locations ..............................
-
Page 5: General Information
In the event of a warranty claim, send the entire machine, along with the invoice, to our headquarters in Wald- NOTE NOTICE draws your attention to useful tips for shut-Tiengen. effectively handling the machine. Contact our free INOTEC service hotline beforehand on +49 7741 6805 777. Page 5... -
Page 6: Warranty Claims
S16 or other assets. WARNING Danger due to misuse! Improper use of the inoMIX S16 can lead to hazardous situations. • Never use the inoMIX S16 continuous mixer to create other products, such as food. -
Page 7: Notices In The Operating Manual
• Do not make any changes, additions or conversions to the mixing shaft! the machine without first consulting Inotec GmbH and • Do not reach into the rotating shaft. obtaining its written approval. Otherwise, the operat- • Do not place any objects into the rotating shaft. -
Page 8: Notices On The Machine
2.3 Notices on the machine INOTEC offers training sessions on operating the inoMIX S16. Use INOTEC service for the initial commissioning of the machine; this also serves as an opportunity to provide operators with training on how to operate the mixer. -
Page 9: Technical Data
Chapter 3 Technical data 3 Technical data 3.3 Water measuring system Pressure being too low From 2 to 6 bar 3.1 Rating plate Pressure reducer 2.5 bar ex-works setting Solenoid valve 230 V, 50 Hz Supply line ¾ inch water pipe (to be supplied by customer) 3.4 Material hopper... -
Page 10: Assembly And Function
Chapter 4 Assembly and function 4 Assembly and function 4.3 Components 4.1 Scope of delivery of inoMIX S16 (item no. 10039462) The scope of delivery is generated using the components ordered and can be checked using the delivery note. • Frame •... -
Page 11: Water Measuring System
Chapter 4 Assembly and function 4.3.1.3 Water measuring system Description of the components in the diagram The water measuring system is attached to the main frame. Item Component The optimum water quantity is set by opening and closing the needle valve. Water drainage valve Needle valve 4.3.1.4 Motor... -
Page 12: Mixing Pipe And Mixing Shaft
Chapter 4 Assembly and function 4.4.4 Mixing pipe and mixing shaft 4.5 Connections The mixing shaft is firmly screwed to the mixing pipe cov- 4.5.1 Power connection (230 V) er. The mixing shaft is connected to the metering shaft via a plug-in connection. -
Page 13: Accessories
Chapter 4 Assembly and function 4.7 Accessories The following accessories can be supplied for the inoMIX S16. 230 V extension cable, 3 x 2.5 mm², length 10 m, Item no. 16 A, Schuko plug and socket 10015208 PU mixing pipe for inoMIX S16 Item no. -
Page 14: Spare Parts And Diagrams
Chapter 4 Assembly and function 4.8 Spare parts and diagrams The spare parts for the inoMIX S16 are designated with numbers in the following images. The individual items are described in the table under the respective diagrams. NOTE Use the order form at the end of this op- Description of the table columns: erating manual to order spare parts. -
Page 15: Water Measuring System Spare Parts List
Chapter 4 Assembly and function 4.8.2 Water measuring system spare parts list Item Item no. Installation Name quantity 10006499 Units Needle valve, 1/2” connection 10036240 Units Pressure reducer D06F-1/2”, with transparent sieve cup 10017821 Units Pressure gauge 0 - 10 bar, 1/4” at back 10022373 Units GEKA coupling, 1/2”, ET... -
Page 16: Metering Shaft
Chapter 4 Assembly and function 4.8.3 Metering shaft Metering shaft Item Item no. Installation Name quantity 10039947 Units Complete metering shaft 10004698 Units Dowel pins, M8 x 50 4.8.4 Mixing pipe with mixing shaft and mixing pipe cover (item no. 10039949) Mixing pipe Item Item no. -
Page 17: Mixing Pipe Cover For Mixing Pipe (Item No. 10039950)
Chapter 4 Assembly and function 4.8.5 Mixing pipe cover for mixing pipe (item no. 10039950) Mixing pipe cover Item Item no. Installation Name quantity 10039950 Units Complete cover for mixing pipe (incl. items 2 + 3) 10039952 Units Ball head for mixing pipe cover 10006175 Units Plastic transfer for the mixing shaft... -
Page 18: Drive Unit (Item No. 10039958)
Chapter 4 Assembly and function 4.8.7 Drive unit (item no. 10039958) Motor Item Item no. Installation Name quantity 10007515 Units Gear motor, 1.1 kW 10039953 Units Complete motor flange (incl. items 7, 8, 9 and 10) 10039955 Units Motor flange without attachments 10041323 Units CEE plug 3 x 16 A, IP 44... -
Page 19: Transport And Storage
2. Have the transport damage confirmed by means of the driver’s signature. 3. Send copy damage report transport company another Inotec GmbH. 4. And clarify the possible ways in which the damage could be remedied with one of our service centres (see second last page) Page 19... -
Page 20: Installation
• Install the inoMIX S16 on an even and horizontal surface. • Prevent the machine from sliding by locking the wheels. The mixing pipe points downwards. • Cover the floor underneath the machine with a plastic sheet, if it is not on a firm, tarmacked surface. -
Page 21: Connecting The Electrical Control System
Chapter 7 Commissioning 6.4 Connecting the electrical control system 1. Connect the inoMIX S16 only to regulation 230 V con- struction site power distribution points with FI circuit breakers (30 mA) (RCD). WARNING 2. Ensure that the connection is protected by a 16 A fuse Water jet. -
Page 22: Commissioning
Its mixing pipe can Observe the applicable occupational safety also be used to lift and move the inoMIX S16 around. To regulations (e.g. respiratory protection) do this, disconnect the mixer from the electricity and water supply. -
Page 23: Operation, Use
1. If you notice any deviations in the operating behaviour, DANGER Rotating shaft. decommission the inoMIX S16 immediately. Danger of death due to being pulled into the machine 2. Ensure that the damage and/or defects which led to the and crushed. -
Page 24: End Of Work
Chapter 9 Cleaning & decommissioning 9 Cleaning & decommissioning 8.5 End of work 8.5.1 Switching off the machine 9.1 Cleaning process 1. Stop filling with bagged goods in sufficient time. 1. Stop filling with bagged goods in sufficient time. 2. Empty the material hopper of the main frame and the 2. -
Page 25: After Cleaning
Chapter 10 Maintenance 9.3 Decommissioning 9.3.1 Running the machine until it is empty and switching it off WARNING 1. Stop filling with bagged goods in sufficient time. Water jet. 2. Empty the material hopper of the main frame and the Risk of injury and risk of property damage due to es- mixing pipe. -
Page 26: Maintenance
(Recommended) as the wear limits have been reached. Portable machines, an INOTEC service centre like the inoMIX S16, must be subject to an annual elec- trical inspection according to the implementing regulation Electrical inspection (DGUV Once a year for electrical plant and operating resources (DGUV V3). -
Page 27: Wear Limit For Metering Shafts
Inotec Service team (see the address list for INO- TEC service centres at the end of the document) or call the INOTEC service hotline on: +49 7741 6805 777. - Page 28 Chapter 11 Faults, causes and solutions The faults listed below feature recommendations as to who is authorised to rectify the fault. Symptom Potential cause Check / solution Personnel qualification If the machine will not Power supply is • Check the power supply (power distribution points, socket, Machine start.
-
Page 29: Dismantling And Disposal
• Send the metal to a recycling facility. ponents and tools lying around or on top of each other • Dispose of the inoMIX S16 via a scrap metal dealer or can cause accidents. your local scrap metal collection centre. -
Page 30: Systems
EC Directive 2006/42/EC. This declaration will become void in the event of any modification made to the machine without our approval. Name of the device: inoMIX S16 Machine model: Continuous mixer... -
Page 31: General Terms Of Business Of The Company Inotec Gmbh
Allgemeinen genommen werden, wenn die Ansprüche gegen unsere Vorlieferanten trotz Geschäftsbedingungen zugrunde. IV. Gerät der Kunde mit der Zahlung in Verzug, kann die INOTEC GmbH rechtzeitiger (gerichtlicher) Inanspruchnahme nicht durchsetzbar sind bzw. die zumindest die gesetzlichen Verzugszinsen fordern. Inanspruchnahme im Einzelfall unzumutbar ist. -
Page 32: Circuit Diagram For Inomix S16
Chapter 13 Systems 13.3 Circuit diagram for inoMIX S16 Page 32... -
Page 33: Order Form
Chapter 14 Order form 14 Order form Fax to: +49(0)7741-6805-665 Delivery address Invoice to Name of customer Consultant Date Number Item no. Item name Our General Terms of Business, Delivery and Payment apply. The customer has been made aware of these terms and agrees to the application of the same. -
Page 34: Index
Connecting the metering shaft and motor .....20 Operation, use ...............23 Connecting the motor ...........20 Order form ..............33 Connecting the power supply ........12, 21 Overview of inoMIX S16 ..........15 Connections ..............12 Conversions and changes ..........7 Correcting flow fluctuations ...........23 Packaging ..............19 Performing checks before starting work ......7... -
Page 35: Locations
Chapter 16 Locations 16 Locations Your sales partner (English language) INOTEC GmbH (Headquarter) Daimlerstraße 9-11 79761 Waldshut-Tiengen Germany Phone +49 7741 / 6805 675 +49 7741 / 6805 665 E-Mail: j.tetling@inotec-gmbh.com Wherever you are, we’re there, too. Page 35... - Page 36 Accessories & Waste water Tillage Compressed air / air dehumidifiers spare parts systems compressors / high-pressure cleaners Power tools / electrical appliances INOTEC GmbH • Daimlerstraße 9-11 • D-79761 Waldshut-Tiengen • Tel.: +49 77 41 / 68 05-0 • www.inotec-gmbh.com...
