homezone ES06559G Quick Start Manual

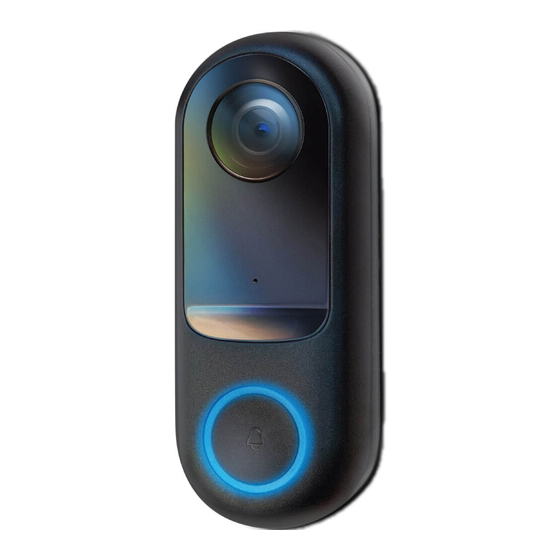

Smart wireless doorbell camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Smart Wireless
Doorbell Camera
s e c u r i t y
QUICK START GUIDE
the bright way to do home security.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES06559G and is the answer not in the manual?

Questions and answers

Summary of Contents for homezone ES06559G

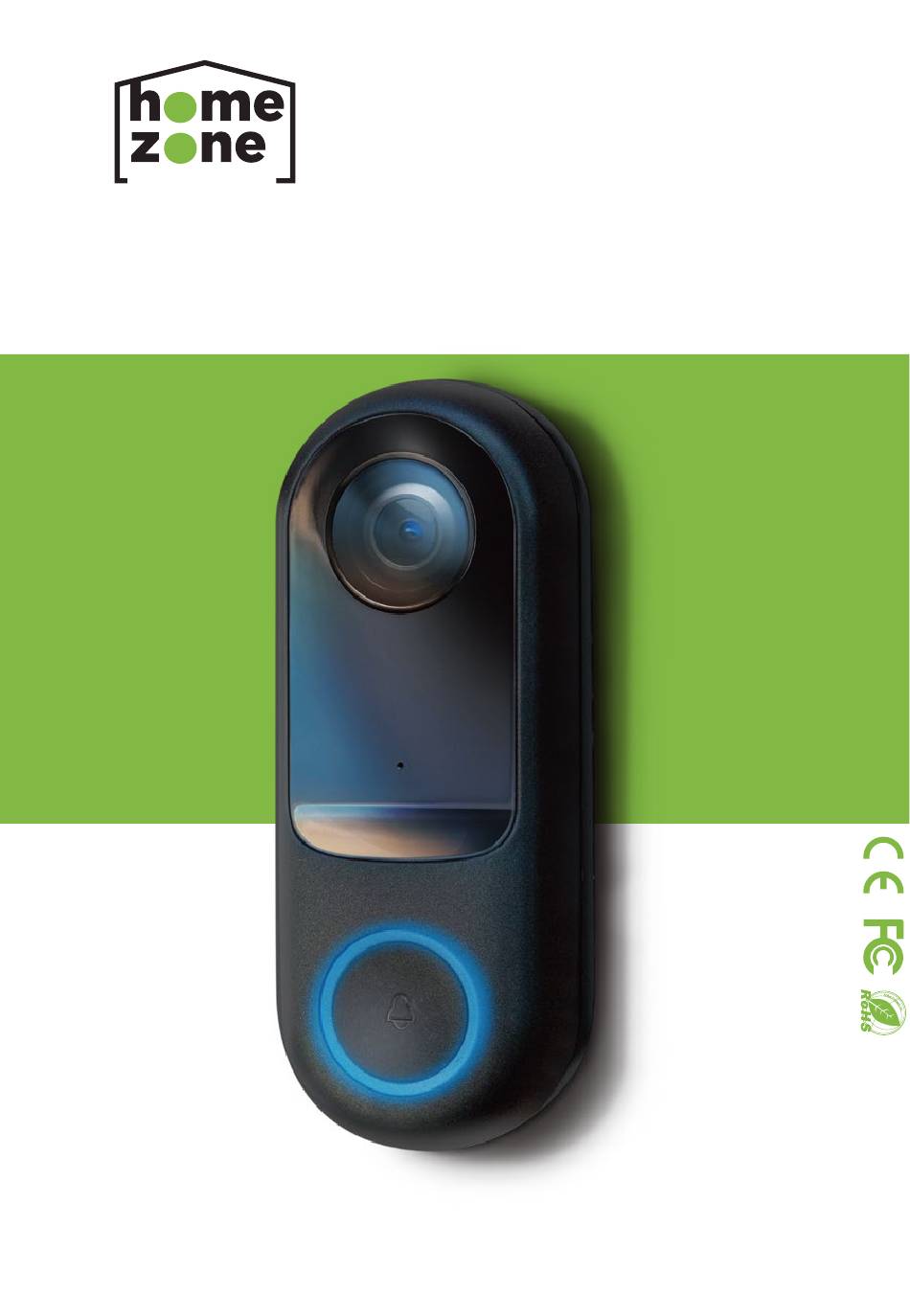

  • Page 1 Smart Wireless Doorbell Camera s e c u r i t y QUICK START GUIDE the bright way to do home security.

  • Page 2: What's In The Box

    What's in the box Doorbell Chime kit Angle Wall mount Screws Screwdriver Manual Wire connectors...
  • Page 3 Lens External Power Port Microphone Status Light Button Reset Speaker SD card slot Mini USB Description Doorbell button Press the button to activate the doorbell Power AC 12V~24V/ 60Hz Status light Red light solid on: the camera or network is abnormal Blinking red light: awaiting pairing Blinking blue light: awaiting WiFi connection, or currently connecting (faster blinking)
  • Page 4 Install First turn o the power breaker at your fuse box for your existing doorbell and mechanical chime. Ring your doorbell again to confirm it is now o . Mode 1 Doorbell General Installation 2. Insert screw anchors 1. Mark screw positions 3.
  • Page 5 Angle wall mount + bracket + doorbell installation 2. Insert screw anchors 3. Fix angle wall mount 1. Mark screw positions into drilled holes to wall with screws and drill holes AC 12V~24V 5. Follow steps 4-6 in 4. Fix bracket to the general installation to angle wall mount setup the wiring...
  • Page 6 Locate the chime kit included in the smart doorbell’s packaging, and the terminals on the inside of the chime. Connect one of the chime kit’s prongs to the transformer terminal (usually labeled Trans, T, AC, or 0). Connect the other prong to the chime’s front terminal (usually labeled front, F, 1, or C1).
  • Page 7 Using the included double sided tape, a x the chime kit to your chime wherever there is space and replace the cover. Be careful not to interfere with any of the chime’s moving parts. Ensure that the chime kit and wires DO NOT interfere with the mechanical parts of the chime.
  • Page 8 Connect Download Home Zone App is available for both iOS and Android OS. Search the name 'Home Zone smart' in the App Store or Android Market. Set up Router This device only supports 2.4GHz frequency and does not support 5GHz. Please ensure router is set for 2.4GHz band before connecting your device to router.

  • Page 9: Registration Process

    Registration process Step 1 Open the Home Zone App, click "Register", read the "Privacy Policy" and click "Agree". Step 2 Input a legal and valid Email address and click "Continue". Input Verification Code, then log in the App.
  • Page 10 QR Code Configuration Getting Started 1. Please follow the instructions and make sure the passwords are inputted correctly. 2. If the device has already been added to an account, be sure the device is removed from the previous account first before pairing to the new account.
  • Page 11 Step 3 Input WiFi password and click “Confirm”, scan the QR code with the camera. 3-8 inches...
  • Page 12 Step 4 Click "I heard the beep" when the device makes the prompt noise and wait for the connection to complete. The indicator light on the camera will be solid blue once pairing is complete. prompt Step 5 Once complete, you can edit the device name on the App and access the device menu.
  • Page 13 Q: The device cannot be previewed properly. A: Check whether the network is normal and place the camera closer to the router. Reset the device and add again if problem persists. Q: Why is it still in the list of devices after resetting? A: Resetting the device only resets the network configuration of the camera.
  • Page 14 Functions Save screenshots of live view to mobie device Screenshot Save recordings of live view to mobile device Record Enable microphone for one-way or two-way talk Talk Dial 911 for emergencies Emergency View saved recordings on local storage (Requires Micro SD Card) Event History Customize activity detection settings.
  • Page 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with FCC Part 15 of FCC Rules.

  • Page 16: Why Register

    Register & Subscribe today to protect your investment and join our email list! Scan below for link: s e c u r i t y homezonesecurity.com support@homezone-usa.com US: +1 888-782-5618 Why Register? • Receive your extended warranty • Get professional warranty support •...
