Electronic Bell / Gong ZBG 110
General Features
of the Colregs 1972, Rule 33(a) "...a vessel of
a gong. ...manual sounding ... shall always be possible."
connecting unit Signal Automaton 10+SGA.
must supplement the electronic system.
Sound characteristics
identical to conventional types
- sound pressure level of 110 dB at 1 m distance
Essentials
- full compliance with the Colregs 1972
maritime authorities, certificates by the
classification societies on request
Advantages
- latest technical standard
- best material and workmanship - made in Germany
- maintenance free
Advertisement
Summary of Contents for ZÖLLNER ZBG 110

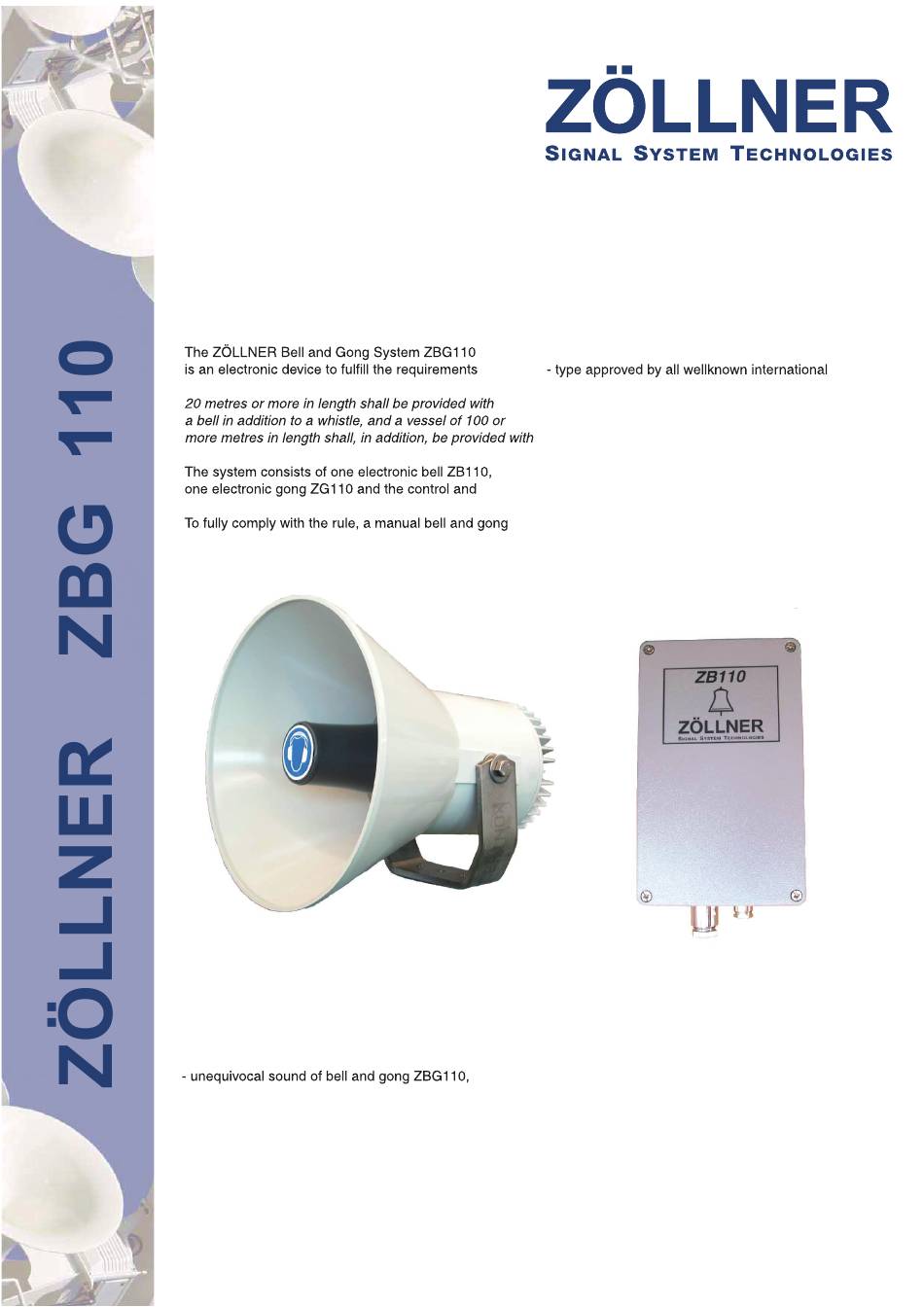

- Page 1 Electronic Bell / Gong ZBG 110 Essentials General Features - full compliance with the Colregs 1972 of the Colregs 1972, Rule 33(a) "…a vessel of maritime authorities, certificates by the classification societies on request a gong. …manual sounding … shall always be possible."...
- Page 2 ZÖLLNER Signal GmbH Radewisch 40 D-24145 Kiel SW185e 02/11 Phone +49 431 7027 -100 Fax +49 431 7027 -202 signal@zoellner.de www.zoellner.de...
- Page 3 Operating Instruction Electronic Bell and Gong System ZBG110 The electronic bell and gong system ZBG110 consists of a loud speaker ZB110 with amplifier unit and a loudspeaker ZG110 with amplifier unit. According to the Colregs 1972, the electronic bell ZB110 must be installed on the fore ship and the electronic gong ZG110 on the aftship.
- Page 4 Operating Instruction Electronic Bell and Gong System ZBG110 Electronic Gong ZG 110 design similar to drawing 01414061-4 dimensions: d= 240 mm length over all: 270 mm protection type: IP 67 temperature range: + 120°C/ -50°C frequency range: 360 - 6800 Hz weight: approx.
- Page 5 (yard provided) 10+SGA (old 10+SBG) (yard provided) 10+SGA (old 10+SBG)
