What's in the Box? - Pistol Grip
1 x Contact Board
1 x Companion Cushion
Contact
Board
Companion
Cushion
What's in the Box? - Extended Battery
1 x Contact Board
1 x Companion Cushion
3. Remove the blue protective tape from the front of the
Companion PCB Tape. Next, attach the Contact Board
to the back of the SKXPro as shown below. (C)
1. Using a pin or a sharp tool, carefully remove all four (4)
screw caps from the back of the SKXPro. Then, unscrew
all (4) screws from the back of SKXPro. (A)
Contact
Board
Companion
Cushion
4. Remove the transparent protective tape from the back
of the Companion Cushion and attach it to the back of
SKXPro as shown below. (D)

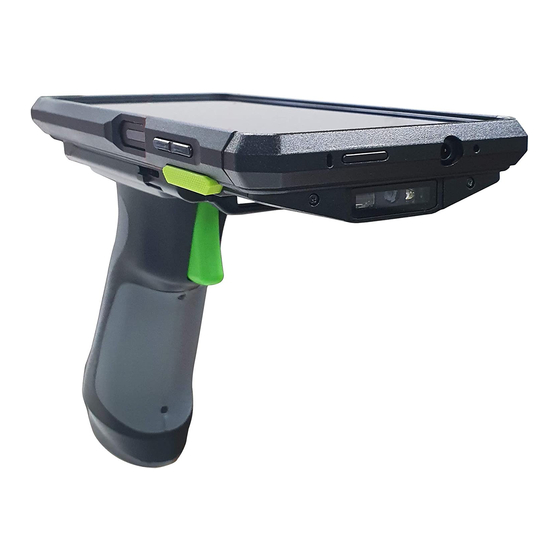

SKXPro Pistol Grip
Extended Battery
Assembly Manual
*XCover Pro/SKXPro sold separately.
Pin and PH0 screw driver (not included)
will be necessary to complete assembly.
2. With the screws removed, remove the companion cover
as shown in the image below. (B)
5. Align the screw holes of the Pistol Grip Adaptor with
the screw holes of the SKXPro. Use the four (4) included
screws to attach the Pistol Grip Adaptor to the SKXPro. (E)
Advertisement
Summary of Contents for KoamTac SKXPro Pistol Grip
- Page 1 What’s in the Box? - Pistol Grip SKXPro Pistol Grip 1 x Contact Board 1 x Companion Cushion Extended Battery Assembly Manual Contact Board Companion Cushion *XCover Pro/SKXPro sold separately. Pin and PH0 screw driver (not included) will be necessary to complete assembly.
- Page 2 Pistol Grip Assembly Squeeze the tabs on both sides of the Pistol Grip Adaptor 1. Turn the knob on the bottom of the Pistol Grip Align the top notch of the Pistol Grip with top notch of and slide the Pistol Grip down. Pull the Pistol Grip away counter-clockwise to open the battery door.
