Accuride Ascent CBLift-0019 Quick Start Manual

Applications: These bracket kits provide the means to attach
a screen to the Ascent. The additional weight pack and weight
extension plate kits are used to add counterbalancing weight to
ensure proper movement.

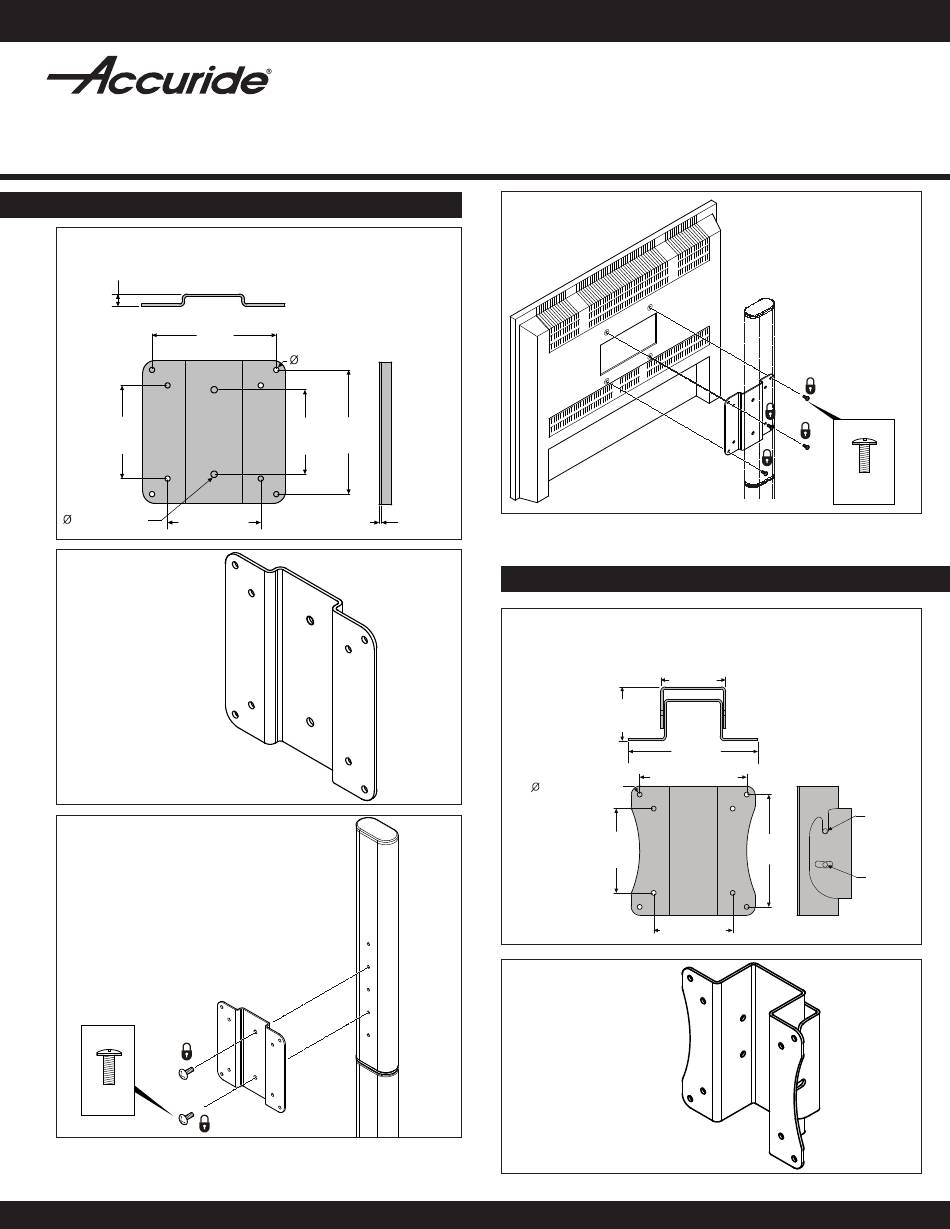

VESA Fixed Bracket Installation
VESA Fixed Bracket
Figure 1
P/N 2990-9777-BE
.39 [10.0]
3.93
[100.0]
2.95
[75.0]
.20 [5.2] 2X
2.95 [75.0]
Figure 2
VESA Fixed Bracket
P/N 2990-9777-BE
Figure 3
2X
M5 X 12
Secure bracket to the Ascent installing two M5 X 12 screws as
shown in Figure 3.
.16 [4.2] 8X
2.68 3.93
[68.0] [100.0]
.079 [2.0]
AScENT/
cBLIFT-0019/oPTIoNAL kITS
VESA Fixed Bracket Kit P/N 2990-9777-BE
VESA Tilt Bracket Kit P/N 2990-9776-BE
Weight Extension Plate Kit P/N 2990-9775-BE
Additional Weight Pack P/N 2990-9774-BE
Figure 4
Attach screen to bracket using four M4 X 8 screws as shown in
Figure 4.
VESA Tilt Bracket Installation
VESA Tilt Bracket
Figure 1
P/N 2990-9776-BE
2.27
[57.8]
1.89
[48.0]
4.53
[115.0]
3.93 [100.0]
.16 [4.2] 8X
2.95
[75.0]
2.95 [75.0]
Figure 2
VESA Tilt Bracket
P/N 2990-9776-BE
4X
M4 X 8
M5
3.93
[100.0]
M5
