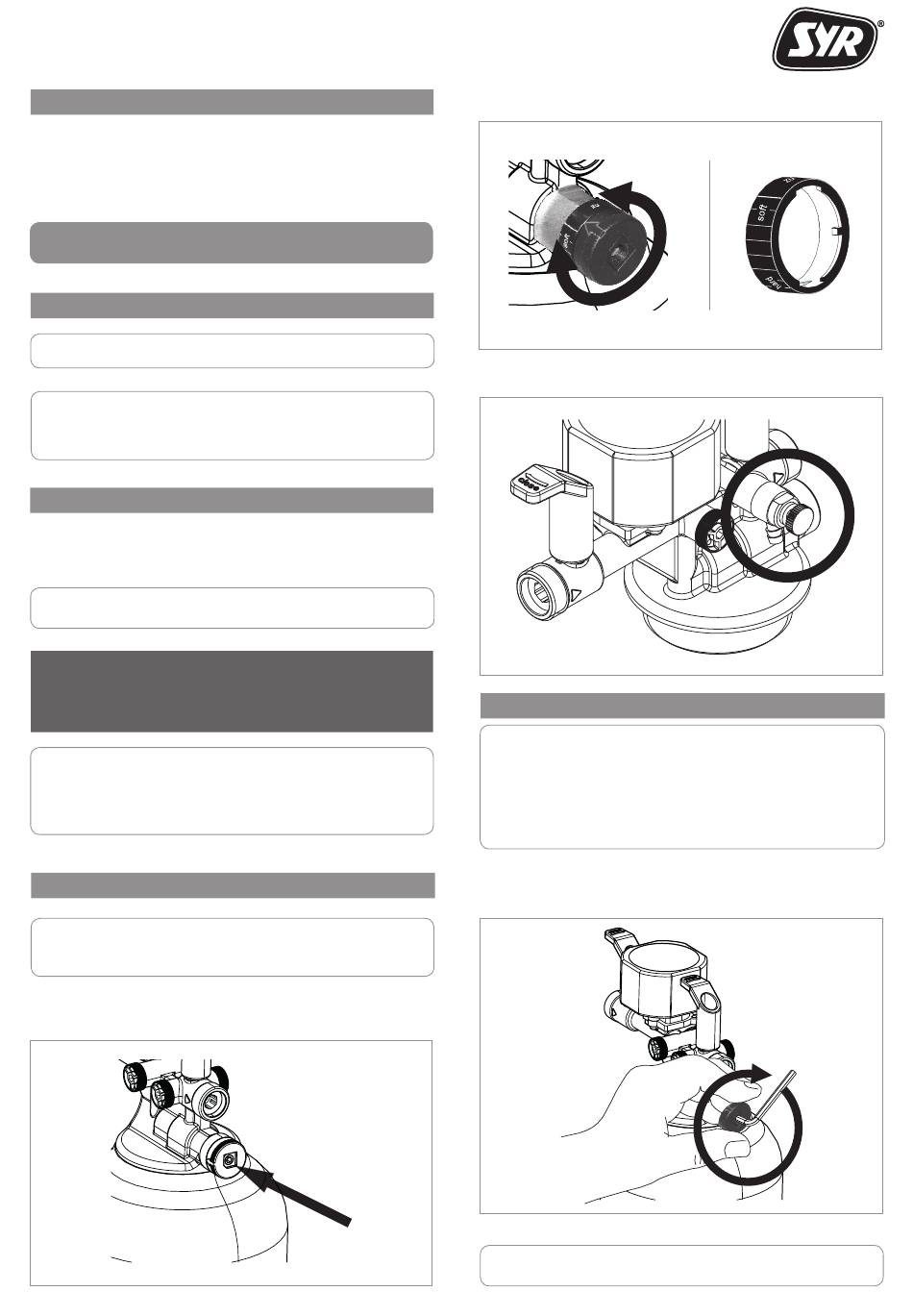

SYR 3200 Short Instructions For Use

Short instruction for use

Field of application

The SYR mobile filling station 3200 is designed as a basis for refillable
cartridges.
It provides either softened or demineralized water or demineralized
water with integrated pHvalue stabilization for heating systems (VDI
Directive 2035 sheet 1) and prevents lime deposits.
To provide a correct function of the mobile filling station please
read the following instructions carefully!

Preparation of filling connections

N
ote: The use of the integrated backflow preventer BA in
direction of flow according to EN 1717 is recommended.
N
ote for adjustment: the setting of the blending valve is re-
quired for each filling and has to be adapted to the local
water conditions (raw and mixed water hardness) and to the
type of water treatment (softening or demineralization).

Determination of the raw water hardness

Use a titration test to determine the raw water hardness.
To do this, take raw water from the drain valve on the inlet side of the
fitting and measure the hardness of the water.
N
ote: The correct determination of the raw water hardness
is urgently required for the further adjustment of the valve.
Adjustment of the
desired initial hardness
N
ote: Depending on the prescribed procedure (see
manufacturer's instructions), the filling case can be used
for softening or complete desalination.
Only the appropriate resin may be used for filling!

Setting instructions for softening

N
ote: In the „softening" process, raw water is added to the
previously completely softened water by blending. This
results in the desired mixed water hardness!
Set the desired mixed water hardness at the mixing valve.
For soft water set in direction „Soft", for harder water set in direction
„Hard".
Then check the soft water hardness by drawing it from the discharge
valve on the outlet side and, if necessary, readjust the mixing valve.

Setting instructions for complete desalination

N
ote: In the „complete demineralization" process, all salts
are removed from the water. This results in water with very
low conductivity (< 100 µS).
The treated water must only be checked with a conductivity
measuring instrument (no hardness test set).
Order no. Conductivity meter: 3200.15.905
Deactivate the blending valve by turning the spindle clockwise fully
inwards using a hexagon socket.
Hold the outer ring (with the display arrow) firmly.
N
ote: If the valve is subsequently used again as a softener,
the spindle must be opened again!
