Morris Products CLAMP LEAKER Series Operator's Instruction Manual

OPERATOR'S #57278
INSTRUCTION MANUAL
MAX
31mm
CLAMP LEAKER
M k
CLAMP
1. SAFETY INFORMATION
The clamp leaker series has been designed
according to IEC1010 -1 and IEC1010 - 2 - 032
concerning safety requirements for electrical
measuring instruments and current clamps with
double insulation overvoltage category 600V CAT III
and pollution 2.
2. SYMBOL EXPLANATION
Important safety information, refer to
the operating manual.
Double insulation ( Protection Class
600V CAT III).
Measurement category III, it is for
CAT III measurements performed on circuits
directly connected to the low voltage
installation.
3. DESCRIPTION
Refer to the figure and to the following steps to
familiarize you with the clamp leaker.
1. Transformer jaws
Pick up the AC current flowing through the
conductor.
USE ONLY
INSULATED
CABLE
MAX
600V CAT II I
HOLD
150A
2A
200m A
AC
A
V
m
LEAKER
-1-
2. Hold button
When this button is pushed, the display will
keep the last reading and "
appear on the LCD until pushing it again.
3. Slip Key (select range)
The key is used to select measuring range.
4. Slip Key (Power ON or OFF)
The key is used to turn the meter on or off
5. Display
3 1/2 digit, 7 segment, 13mm high, LCD.
6. Trigger
Press the lever to open the transformer jaws.
When the lever is released, the jaws will close
again.
4. OPERATING INSTRUCTIONS
AC CURRENT MEASUREMENT
1. Set the Slip key of range at desired range
position.
2. Set the Slip key of power at "1" (ON) position.
3. Press the trigger to open transformer jaw and
to clamp one conductor only, making sure that
the jaw is firmly closed around the conductor.
4. Read the measure result from the display.
- 2 -

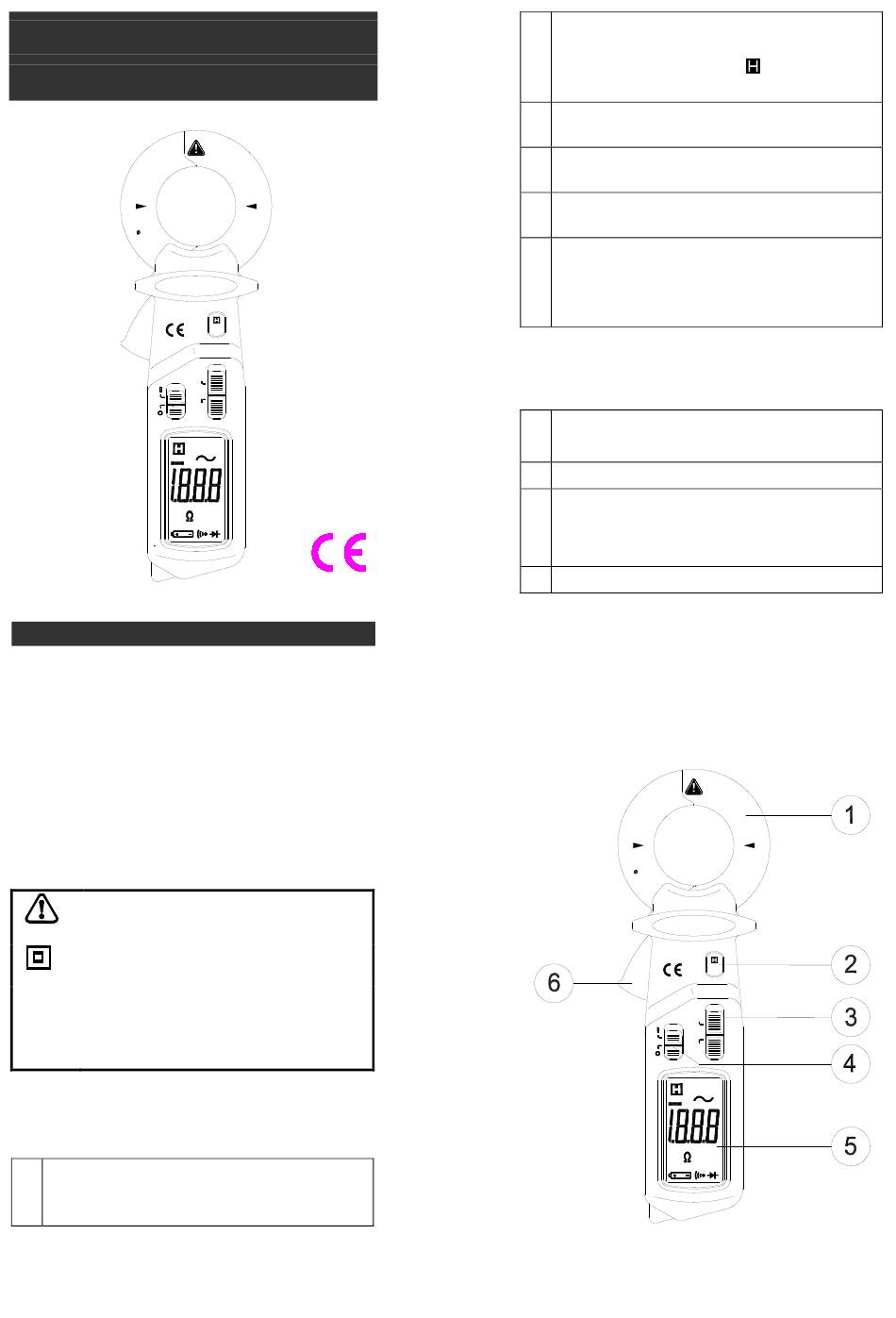

5. CLAMP LEAKER LAYOUT
Fig.
MAX
31mm
CLAMP LEAKER
150A
200m A
Mk
- 3 -
" symbol will
