Read this manual thoroughly before using to use this product safely.
There is a certain level of skill involved in using TSUNAGO effectively.
A video on how to use the TSUNAGO has been released on YouTube. Look for "How to use the TSUNAGO" .
1

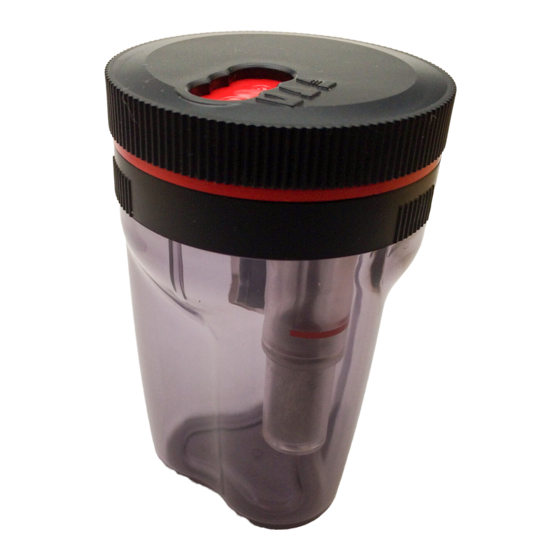

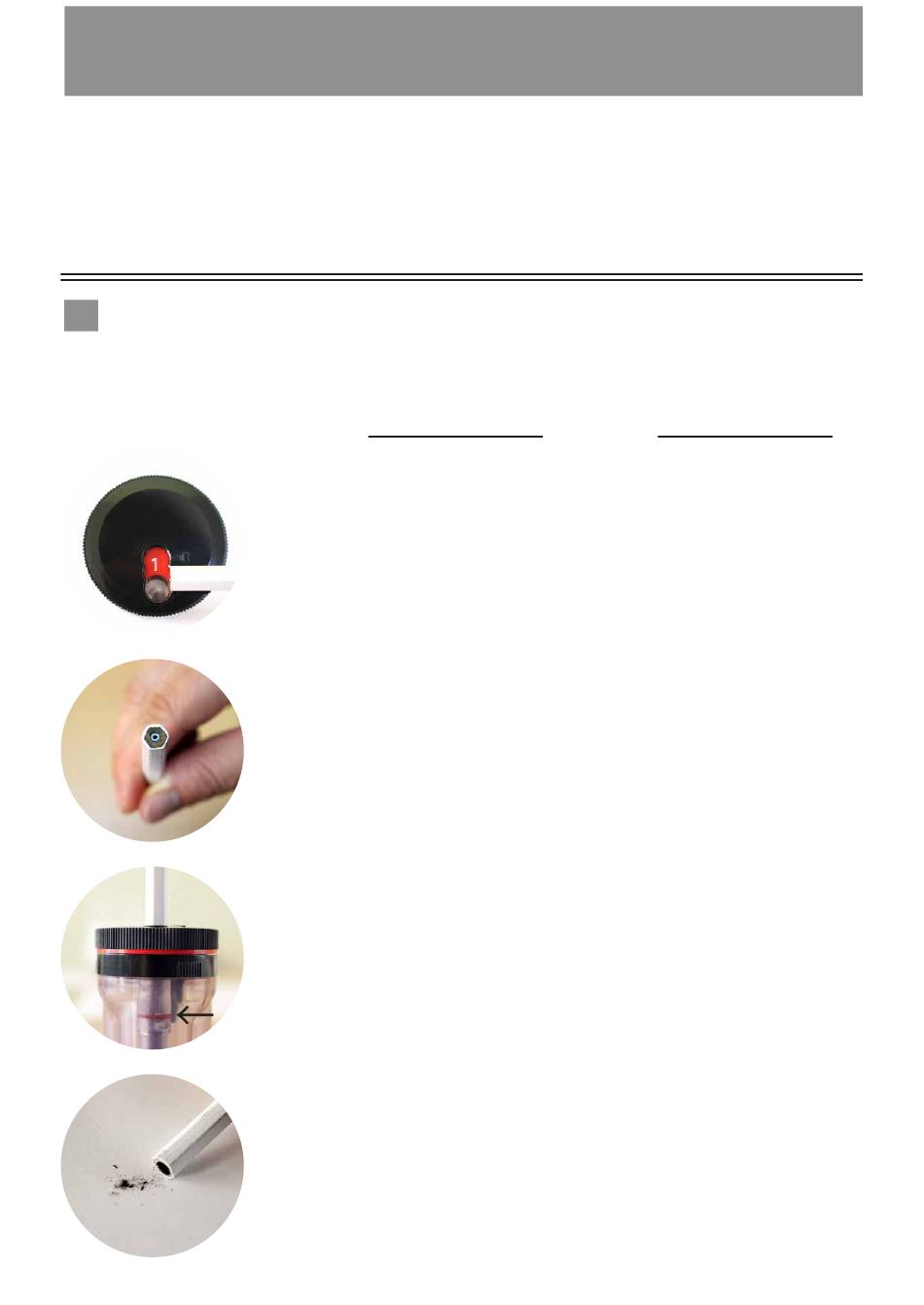

First open up a recess hole at the rear of the pencil. Turn the TSUNAGO cap
to match it up with dial setting [1]. Insert the rear end of the pencil and rotate
it clockwise.
T SU NAG O Us er ʼs M an ual
This process will be made easier by referring to this manual.
URL https://www.youtube.com/watch?v=ubwPm9UK4F8
1. Take care not to injure yourself with the point of the pencil when cutting out
a recess hole in the rear of the pencil. Excessive force may break the wooden
part of the pencil.
(Use a woodwork adhesive for repairs if this breaks)
2. Check that the pencil is centered by lightly pressing the rear end of the pencil
down on the cutter before cutting. The hole cutting process may cause the hole
cut to be slightly off center depending on the shape and size of the pencil in use.
3. Cut a recess hole out of the rear of the pencil until the tip of the pencil reaches
the red line.
4. After opening up this recess, lightly tap the pencil to get rid of any residue left
in the recess hole.
Tips
