my3dbase PS5 TrueFire-DS Rapid FIre V1.00 Instruction Manual

PS5 TRUEFIRE-DS
RAPID FIRE V1.00
Instruction Manual
F
EATURE ACCESS
The PS5 TrueFire-DS mod uses the "LEFT"
and "UP" directions on the D-pad for
accessing all of the controllers features.
There is also an option of a "MOD" button on
the back of the controller. The MOD button
can be used instead of LEFT on the D-pad to
allow faster access to many features as you
would not need to remove your thumb from
the left thumbstick .
When enabling/disabling a feature, unless
otherwise noted, you will see the main front
LED, located at the mic mute button, flash
GREEN when Enabling and RED when
disabling.
R
APID FIRE MODES
There are 10 built in modes to select from.
Each is pre-programed with a specific speed
(see the chart to the right), these can be
independently programmed to an new speed
in the programming mode(See page 4). To
change to the next mode you must HOLD
LEFT for 4 seconds. Or with the MOD button
installed you would HOLD the MOD button
for 4 seconds. You will see the main LED flash
AQUA (blue + green), count the number of
flashes of the LED. This will indicate which
mode you are currently in. (2 flashes = mode
2, 3 flashes = mode 3, etc...). You can also go
back to the previous mode by HOLDING L1
along with LEFT.
HOLD 4 Sec
HOLD 4 Sec
O
VERVIEW

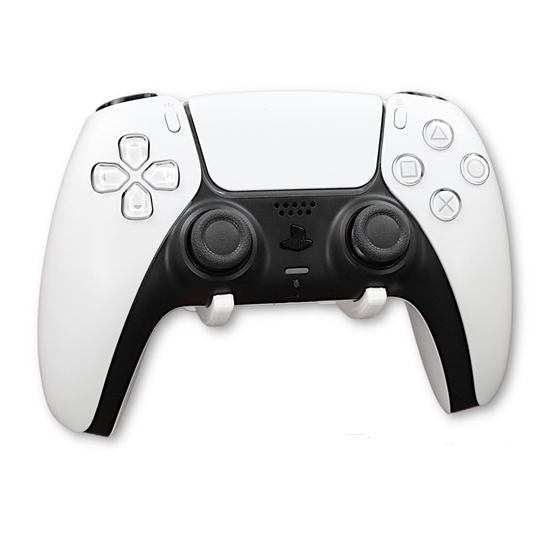

The PS5 TrueFire-DS mod offers many features, more than you will
find on any other mod available. While there are many features
on this controller, we have developed a method of accessing them
which makes it quick and easy.
On the following pages you will find information about each
feature and how to access it. Many features can be used in
combination allowing greater flexibility and a greater
enhancement to your gaming experience. Only features which
conflict with each other, such as jump shot and drop shot, cannot
be used at the same time.
S
UB/EDIT MODES
Several of the mod features have sub modes
or edit modes. Sub modes are modifications
to the main feature. These will be explained
in the description of each feature. To change
a features sub mode HOLD UP + LEFT on the
D-pad, while holding both, tap the
corresponding features button to change the
Sub-Mode. Example: to change the Jump
Shot sub mode you would HOLD UP + LEFT,
then TAP X, the LED will Flash ORANGE to
indicate which sub mode you are currently
in.
MODE
Mode 1:
Mode 2:
Mode 3:
Mode 4:
Mode 5:
Mode 6:
Mode 7:
Mode 8:
Mode 9:
Mode 10:
SPEED
7.7sps
9.3sps
13.8sps
16.67sps
20sps
16sps
12sps
10sps
7sps
5sps
F
LIPPED LAYOUT INFORMATION
This manual assumes you are using the
default button layout where R2/L2 are used
for firing/aiming. While this mod also
supports Flipped layouts for use with R1/L1
these buttons cannot be used with rapid fire.
Corresponding features such as jump or drop
shot will work with the flipped layout,
however rapid fire does not. If you use a
flipped controller layout you must change
the trigger configuration to "FLIPPED" in the
Advanced Feature Management of the
TrueFire-DS mod (see page 5). When the
flipped layout is selected features which are
turned on by the triggers will also be flipped.
Example: with the default layout Quick Scope
is turned on by holding LEFT and tapping L2.
With the flipped layout you would hold LEFT
and tap L1
R
APID FIRE
Rapid fire gives pistols and semi-auto riffles
that extra kick they need to compete with the
big guns.
Most weapons have a sweet spot for the rapid
fire speed and this is generally between 7 and
16SPS. Be aware that above this most
weapons will start to fire slow and erratic.
Rapid fire can be activated in several ways. 1.
double tap left on the D-pad, 2. Hold left on
the D-pad and pull R2. 3. Single tap the mod
button (if installed). When activated the LED
will flash blue.
TAP 2x
HOLD PULL
TAP
