Tevii
D421

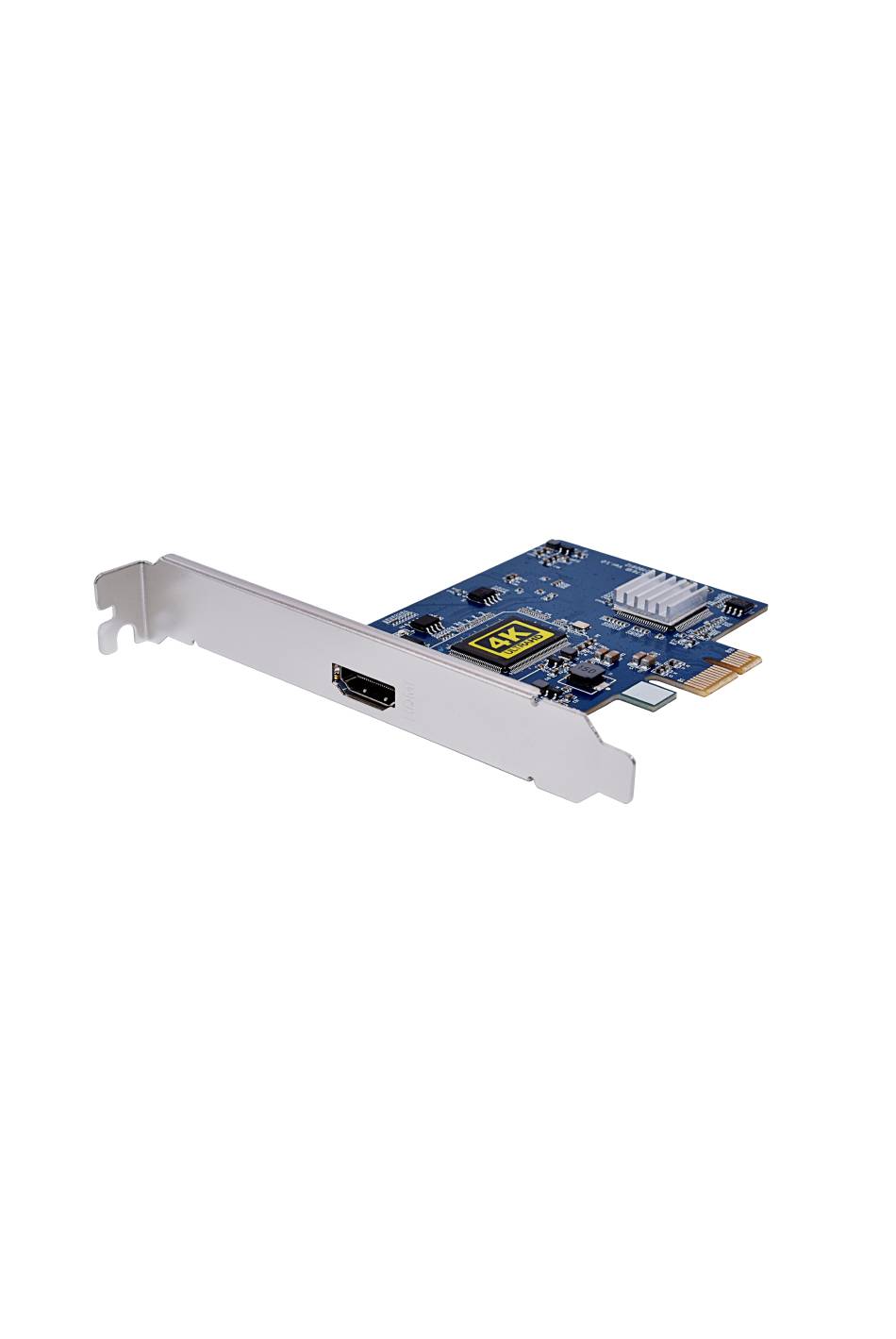

PCIE CAPTURE CARD
Please read this Instruction Guide carefully to ensure proper use of this product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D421 and is the answer not in the manual?

Questions and answers

Related Manuals for TeVii D421

Summary of Contents for TeVii D421

  • Page 1 Tevii D421 PCIE CAPTURE CARD Please read this Instruction Guide carefully to ensure proper use of this product...

  • Page 2: Important Safety Instructions

    Important Safety Instructions Before using , please ensure that you read and understand the safety D421 PCIE CARD precautions below: 1. Do not attempt to open the case of or modify it in any way, D421 PCIE CARD as this will void the warranty.

  • Page 3: Product Connectors

    Product Connectors ○ Connect the PCIE port form D421 to PC PCIE port. (2) Connect video source (PS, Xbox, DVD player) to PICE PORT ○ HDMI: HDMI in...

  • Page 4: Windows Mode

    Windows Mode 1. Software Installation & Connection <1> Install UXPlayer on Windows PC Please install UXPlayer via software CD...
  • Page 5 Follow the wizard to complete the installation. After installation completed, you can see “Live Streaming Video Device” & “Audio Live Streamer Device” on Device Manger. Please restart your computer first before using UXPlayer.
  • Page 6 2. Windows application UXPlayer online registration Please register UXPlayer online before using it or you can only record up to 10 minutes. Run UXPlayer. Click on screen upright corner to open the "About" window. Then click on the "Register" button to open the "Register" window. Fill in your Email address, Name and Code (The Code can be found on the CD as above) Then click on "OK"...
  • Page 7 3. Video Broadcast Share Click on to start sharing video with other devices connceted to same LAN. Use the QR code scanner to scan the QR code or open the browser to visit the IP address show on the pop-up window. http://192.168.X.XXX:8080/preview...
  • Page 8 With browser, you are able to playback recorded file: videos or pictures To view live video, you need to download & install free App VLC player Select Network Stream & input Http://192.168.XX.XX:8080/preview you will see live videos on your mobile phone.

  • Page 9: Live Streaming Via Xsplit

    Live Streaming via XSplit 1. Download & open XSplit on your PC add  webcam, capture card  video  Live Streaming Video Device SettingsAudio input select Microphone (Audio Live Streamer)
  • Page 10 2. Outputs  set up a new output--> (for example) Twitch 3. Enter ID, Password to Log In (please apply a new account for Twitch beforehand)
  • Page 12 4. After set up completed，Click Outputs Twitch- tevii123 to start streaming ...

  • Page 13: Live Streaming Via Obs

    Live Streaming via OBS Download & install the latest version of OBS and open it Select “Settings” Select “Stream“ “Service”(website)Streamer Key OK...
  • Page 14 How to find your Stream Key (taking Twitch as example) Open Twitch Select Dashboard (A) Settings (B) Show Key (C) Sources Add  Selecct Video Capture Device Device   Select Live Streaming Video Device...
  • Page 15 Audio Output Mode Output desktop audio (DirectSound) OK Press“ Start Streaming ”...
  • Page 16 Record/Capture to PC 1. After all devices are connected properly, run UXPlayer on your PC. 2. Click to start recording; click to stop recording. Click to pause recording, you can also click to capture a screenshot...
  • Page 17 3. Click to view the recorded video files. You can click to play back selected recorded video. Set up & Schedule Recording...
  • Page 19 Setup parameters: Codec: Auto, MJPG, YUY2 Frame rate: 25fps, 30fps, 50fps, 60pfs Video Resolution: 1920x1080; 1280x720; 720x480; 1440x900; 1400x900; 360x768; 1280x1024; 1280x960; 1024x768; 800x600 Video Bitrate: 18Mbps, 15Mbps, 12Mbps, 10Mbps, 8Mbps, 6Mbps are available. Video Render: Define the video render. Video Mix Render9 and Internal YUV Render are available.

  • Page 20: Computer System Requirement

    Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above 4 GB RAM (8 GB recommended) Contact If you encounter problems about using and upgrading hardware and software, Please contact our support team: sales@tevii.com Please download the software UXPlayer http://www.tevii.com/Support.asp...
