Summary of Contents for PSG Dover Wilden SafeGuard

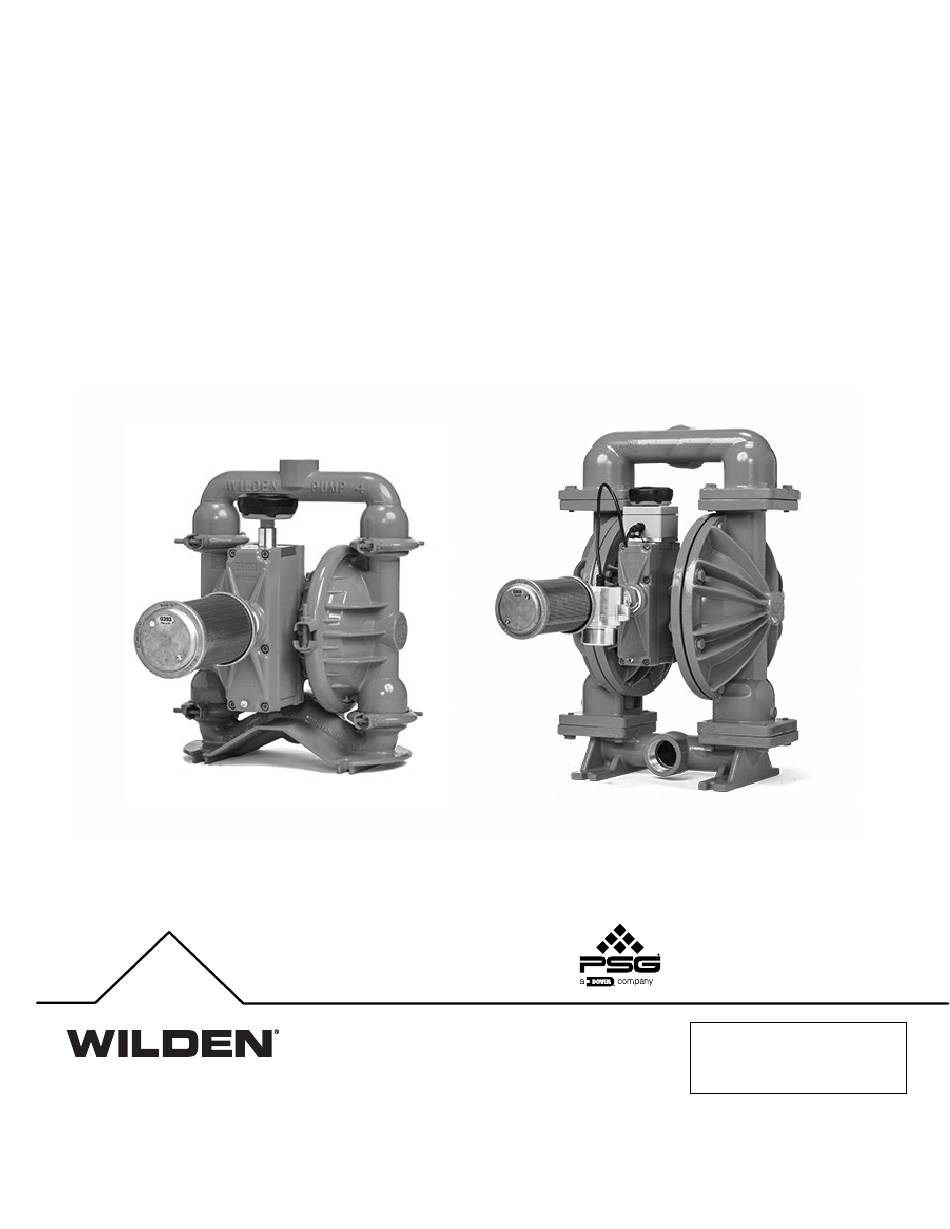

- Page 1 ENGINEERING OPERATION & MAINTENANCE Wilden SafeGuard™ Remote Monitoring and Alert System Where Innovation Flows WIL-19230-E-01...
-
Page 2: Table Of Contents
Contents Section 1: Precautions - Read First! Section 2: How It Works Section 3: Dimensional Drawings Section 4: Installation Section 5: Maintenance Section 6: Troubleshooting Section 7: Exploded View and Parts List Wilden ® WIL-19230-E-01... - Page 3 Warranty Wilden warrants to the original purchaser that your Wilden SafeGuard Remote Monitoring and Alert System Edge Device and Gateway Node shall be free from defects in material and workmanship under normal use for a period of one (1) year from date of shipment. Due to the varied ways that product(s) can be accessed and/or configured during use, battery life is excluded from warranty.
-
Page 4: Section 1: Precautions - Read First
PRECAUTIONS – READ FIRST! The following outlined Precautions are for the WARNING: Changes or modifications which are not expressly Wilden SafeGuard equipment only. For specific approved by Wilden could void the authority to operate the Precautions on your pump, please refer to your equipment. -
Page 5: Section 2: How It Works

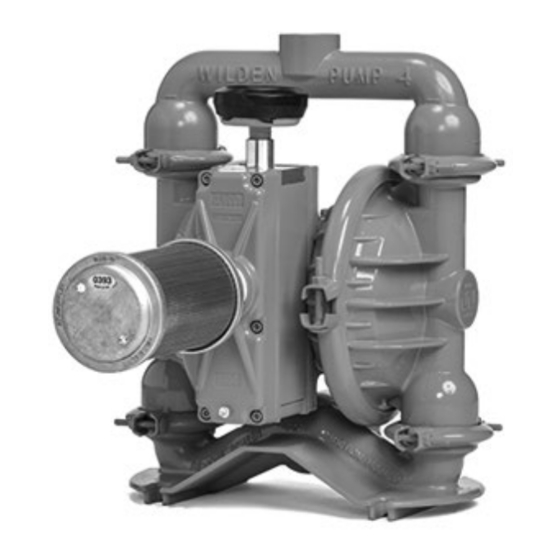

How it Works Wilden SafeGuard is designed to monitor Wilden AODD pumps’ health and performance. It is composed of a single battery-powered sensor (Edge Device) mounted directly onto the pump which communicates to a sensor reader (Gateway Node). The Gateway Node, which can connect up to 10 Edge Devices/Pumps, operates as an encryption router, securely transmitting the data from all pumps to the Cloud. - Page 6 Section 3 DIMENSIONAL DRAWING Tier 1 DIMENSIONS ITEM 1″ PUMP 1-1/2″ PUMP 2″ PUMP 3″ PUMP 86.4 mm (3.4″) 63.5 mm (2.5″) 63.5 mm (2.5″) 63.5 mm (2.5″) Note: Dimensional Drawing of Tier 1 represented on a PS420 Metal Pump Model. For full dimensions of your specific pump model, refer to the pump manual.
-
Page 7: Section 4: Installation
Section 4 INSTALLATION Edge Device and CAUTION: Before attempting any maintenance or repair, disconnect the Leak Detection compressed air line to the pump and allow all air pressure to bleed from the pump. Disconnect all intake, discharge, and air lines. Drain the pump by turning it upside Tools Required: down and allowing any fluid to flow into a suitable container. - Page 8 INSTALLATION Step 4 Step 5 Step 6 Using the 3/16" Hex Wrench, re-install the Fore Tier 2 Only – Remove the muffler For Tier 2 Only – Install the leak detection top two air valve bolts, securing the Edge from the muffler plate. unit into the muffler plate with the appropriate Device to the pump.
- Page 9 A light will flash blue when powered. hand to remove the cap. Be sure to leave the tray empty where it’s Reinstall the Edge Device cap and rubber marked “Leave Empty”. seal. The Wilden SafeGuard Installation is Complete. Wilden ® WIL-19230-E-01...
- Page 10 INSTALLATION Gateway Node Tools Required: Technical Specifications 9/64″ Allen Wrench The following outlines the technical specifications of the Gateway • Node: (4) #8-32 x 1″ Screws • Maximum Number of Paired Edge Devices: 10 • Installation Range: Up to 150 ft. •...
-
Page 11: Section 5: Maintenance
Section 5 MAINTENANCE Edge Device Leak Detection The batteries within the Edge Device are expected In the event that a leak is detected via the Leak to last up to 1 year. The Edge Device requires (2) Detection Sensor, the product could potentially AA batteries. -
Page 12: Section 6: Troubleshooting
Section 6 TROUBLESHOOTING Gateway Node Edge Device EXTERNAL DC POWER SUPPLY CONNECTED, LED LIGHT INDICATOR NOT BLINKING BUT LED LIGHT OFF Remove rubber sleeve and top to confirm the battery Confirm the cable extending from the Gateway Node pack is connected to the Edge Device using the to the power outlet is not cut, broken, or damaged. -
Page 13: Section 7: Exploded View And Parts List
Section 7 EXPLODED VIEW AND PARTS LIST Tier 1 and 2 – 1″ EXPLODED VIEW 25 mm (1″) Pro-Flo SHIFT Series Bolted Metal Pump (PS220) represented in the exploded view for Tier 1 and Tier 2 (1″) Option Tier 1 and 2 – 1-1/2″ to 3″ EXPLODED VIEW 38 mm (1-1/2″) Pro-Flo SHIFT Series Bolted Metal Pump (PS420) represented in the exploded view for Tier 1 and Tier 2 (1-1/2″... - Page 14 EXPLODED VIEW AND PARTS LIST Item Description Qty. Tier 1 – 1″ Tier 2 – 1″ Tier 1 – 1-1/2″ to 3″ Tier 2 – 1-1/2″ to 3″ Wilden SafeGuard Components SafeGuard Edge Device 02-8290-99 02-8294-99 04-8292-99 04-8296-99 Leak Detector 02-8016-01...
- Page 15 Notes Wilden ® WIL-19230-E-01...
- Page 16 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA 1 (909) 422-1730 • F: 1 (909) 783-3440 psgdover.com Where Innovation Flows ® reserves right to modify information and illustrations contained this document without prior notice. This is non-contractual document. 04-2020 Wilden ®...
