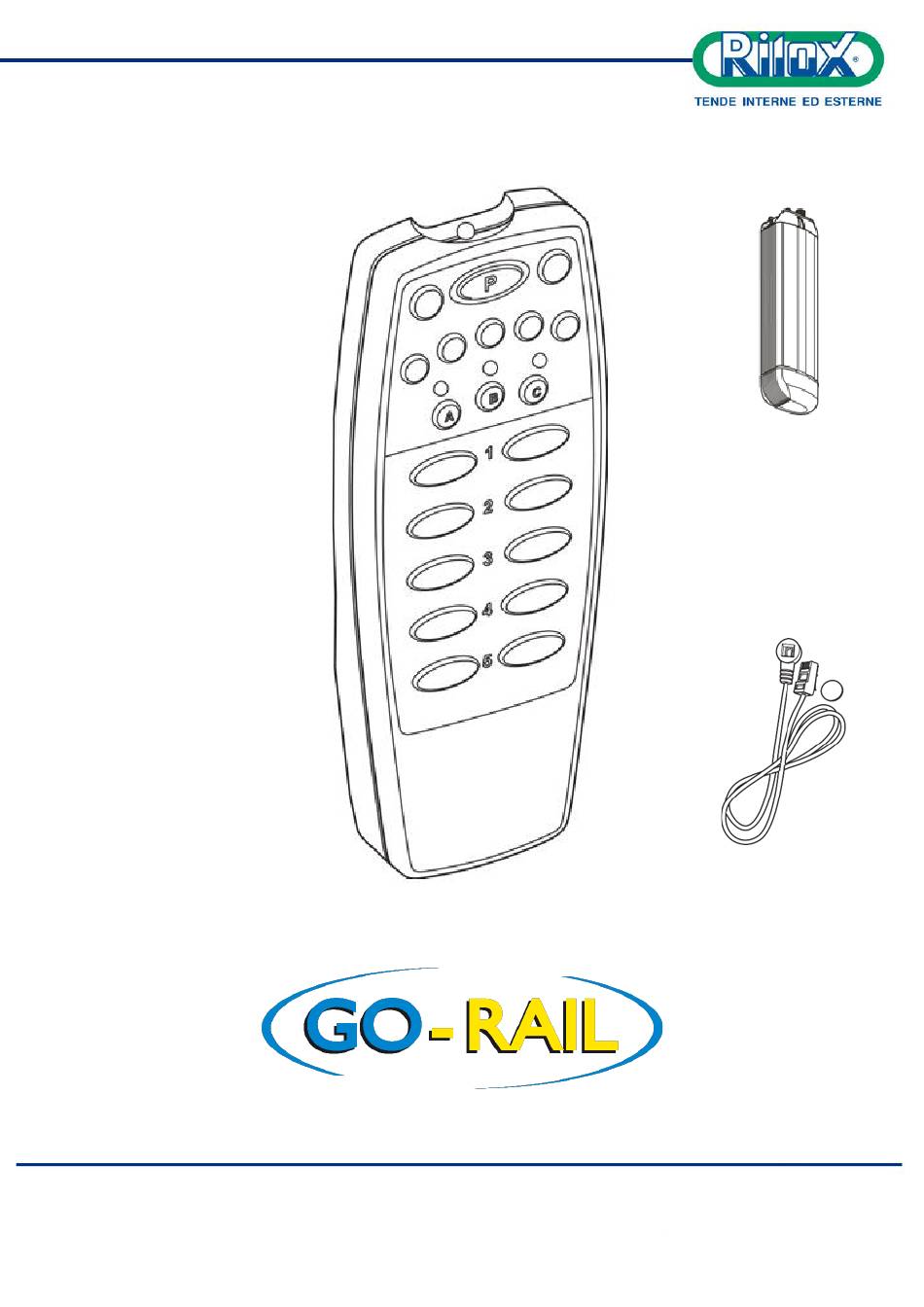

- Page 1 IR receiver 3103 required IR Manual Version 1.0 Lug.2020...
-
Page 3: Table Of Contents
1.1 Products ............................4 1.2 Preparation ............................ 5 1.3 Button layout ..........................6 2.1 Auto calibration ..........................7 3.1 Programming Rilox Go-Rail motor units ..................8 3.2 Overview Programming Menus ..................... 9 3.3 Programming options ........................10 Menu 1 ............................10 1.1 Set end positions ........................ -
Page 4: Products
1. Infrared control 1.1 Products Rilox Go-Rail motor units offer a wide range of features for optimal use in many situations. Feature settings can be changed and stored by means of the buttons on the motor unit itself or other controllers, e.g. -
Page 5: Preparation
1.2 Preparation Trasmitter Place the batteries in the trasmitter, 2 x AAA. IR Riceiver The connecting lead with RJ45 plug has to be inserted in the bottom side of the motor unit. Place connector RJ45 here: (underside motor unit with bottom cover removed). -
Page 6: Button Layout
1.3 Button layout The remote control 3104 can be used for operating and programming Go-Rail motor units. Below an overview of the various buttons and their use. Button timings: Shortly press the button(s) (I) = keep pressed less than 1 second Press and hold the button(s) (I) = keep pressed for more than 1 second SET –... -
Page 7: Auto Calibration
2. First Use 2.1 Auto calibration The system will auto calibrate its end positions on first use, when the system is powered and operated for the first time via IR channel ‘A1’. After auto calibration, the system is ready for use and responds to Infrared channel ‘A1’ as default. For motor types GM-x21-xxxx/x e GM-x10-xxxx/x (NOT for GM-1xx-xxxx/x). -
Page 8: Programming Rilox Go-Rail Motor Units
3. Programming 3.1 Programming Rilox Go-Rail motor units Rilox Go-Rail motor units offer a wide range of features for optimal use in many situations. See § 3.2 on p. 9 for an overview of all available features. Feature settings can be changed and stored using the buttons on the motor unit itself or the Infrared transmitter. -
Page 9: Overview Programming Menus
3.2 Overview Programming Menus LED mode LED colour Menu 1 Bianco Endpositions Set IR Channels Green 1.3*) RF Yellow (riservato) LED mode LED colour Menu 2 Blinks slowly White Speed DryC. Intermediate Positions Green Light Sensor 2.3.1 Sun Sensor Yellow 2.3.2 Dawn/Dusk Sensor Blue 2.3.3 Sensor mode... -
Page 10: Programming Options
3.3 Programming options Menu 1 1.1 Set end positions motor LED colour red: Note: After 15s. without input, the motor unit quits programming mode. Please first read each step for this feature. Infrared channel ‚A1‘ on the transmitter is active by default. 1. -
Page 11: Set Rf Channels
1. Press and hold the P-button on the transmitter until the LED ON THE MOTOR UNIT turns white (after 4s.). 2. Repeatedly press any OPEN or CLOSE button until the LED on the motor unit is green. 3. Shortly press the P-button to enter the feature menu. 4. -
Page 12: Menu 2
Menu 2 2.1 Opening and Closing Speed motor LED colour red: Option to select 1 of 4 pre-defined speed settings. Default setting is „Normal“. Nota: After 15s. without input, the motor unit quits programming mode. Please first read each step for this feature. 1. -
Page 13: Light Sensor
To store another intermediate position, repeat § 2.2.2 entirely. Changes made at 5 will only be saved if confirmed by pressing the P-button. 2.3 Light Sensor The advanced Rilox Light sensor offers: 1. Sun light related sensitivity; 2. Dawn/Dusk related sensitivity;... - Page 14 To use the Sun sensor, define its sensitivity (see below) AND its behaviour (§ 2.3.3). Connect the Rilox light sensor to the underside of the motor unit via the RJ45 plug. Make sure that the sensor is properly placed and oriented correctly towards the light source.
- Page 15 2.3.2 Dawn/Dusk light sensitivity motor LED colour blue: To use the Dawn/Dusk sensor, define its sentibility (see below) AND its behaviour (§ 2.3.3). Connect the Goelst light sensor to the underside of the motor unit via the RJ45 plug. Make sure that the sensor is properly placed and oriënted correctly towards the light source.
- Page 16 2.3.3 Light Sensor behaviour motor LED colour purple: To make use of the light sensor, define its response to Sun light signals and Dawn/Dusk light signals. There are 8 preset patterns available. Note: After 15s. without input, the motor unit quits programming mode. Please first read each step for this feature.
-
Page 17: Cps: Curtain Protection System
2.4 CPS: Curtain Protection System (only GM-4xx-xxxx series) CPS is an intelligent declutching mechanism, it allows to manually operate the curtains. Touch & Go: If a stationary hanging curtain is pulled sideways along the system, CPS will detect movement and the curtain will automatically open or close depending on the pulling direction. - Page 18 7. The LED on the motor unit slowly flashes white again for 15 seconds: using the OPEN or CLOSE buttons another MENU 2 feature can be selected. 8. Otherwise, wait for 15 seconds or shortly press the P-button to quit programming. The LED on the motor unit switches off, the system is ready to use.
-
Page 19: Menu 3
Menu 3 3.1 Operation mode 3 different operation modes are available, defining how the motor unit responds to OPEN and CLOSE commands from 1- or 2-button controls. SETTINGS: Standard 2-button operation (default setting) Button press < 1s. : system moves to endpostition. Button press >... -
Page 20: Inverted Input
8. Otherwise, wait for 15 seconds or shortly press the P-button to quit programming. The LED on the motor unit switches off, the system is ready to use. To quit programming at any time, repeatedly press the P-button or wait for 15s. Changes made at 5 will only be saved if confirmed by pressing the P-button. -
Page 21: 3.6 (Reserved)
Timer 24h The built-in 24hrs timer is a self learning timer, that can record up to 4 events which will be replayed every 24 hrs.. 1. 24hrs Timer: Learning mode. Activate Learning mode by pressing SET on the remote control for > 5s. The LED in the motor unit flashes yellow: the timer wil record max. -
Page 22: Transmitter
Attention: in the next step, all saved changes will be erased and the motor unit is put back to its factory settings. To skip, wait 15s. until the LED on the motor unit switches off. 5. Confirm by shortly pressing the P-button: the motor unit has now been put back in its factory settings. - Page 23 Side View Top View Front Face Front Face Centro Centro Centre Centre Rilevatore IR Detector Distance Distance Figure 1: Figure 2: Rotate UUT Up and Down Rotate UUT Left and Right See Range Section for angle. See Range Section for angle.
-
Page 24: Led Signals
4.2 LED Signals Normally LED signals stop after 15 s. Comportamento LED Significato LED colors (green, red, yellow, blue purple Normal programming mode colors. orange or light blue) continous or blinking: LED flashes yellow and keeps flashing for more The 24hrs timer is recording. than 15 s. -
Page 25: Connessioni
4.3 Connessioni connector: RJ45 use: IR receiver Pin layout RJ45: 3,3 VDC output IRDATA : Connect necessary wiring only! - Page 26 Panoramica generale dei canali Button System A – 1 Window Left A – 2 Window Right A – 3 Window Left Window Right Panoramica canali Pulsanti Sistema A – 1 A – 2 A – 3 A – 4 A – 5 B –...
- Page 27 Rilox Italia Srl - Cap. Soc. €150.000,00 I./V. Via Cascina Borniola, 15/A - 10036 Settimo Torinese (TO) - ITALY Reg. Imprese Torino - C.F. - P. IVA - 10634150014 - R.E.A. 1149982 Ufficio Registro TORINO 2 - PEC: riloxitalia@pec.it Tel:(+39) 011 262 5473 - Fax: (+39) 011 22 22 250 www.riloxitalia.it...
