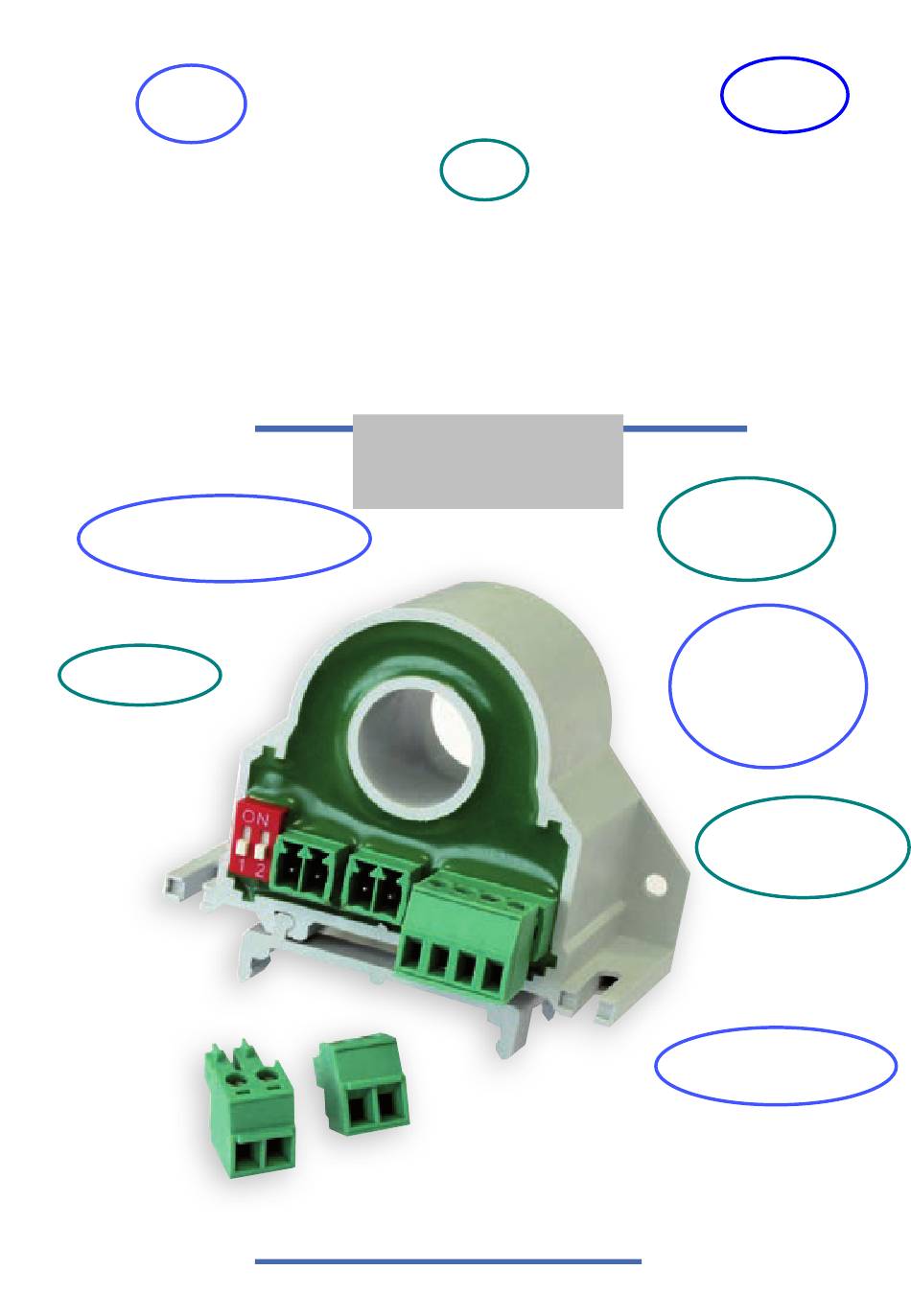

- Page 1 Watt ENERGY-0-RS Energy Meter RS485 i RMS TRMS AC/DC 50A ac/dc V rms COS phi 800Vac -/+ 1000Vdc Energy bidireccional Frecuency User manual...
-
Page 2: Table Of Contents
Index 1 Safety guide lines ............................4 2 Model identi cation .............................4 3 Technical data ..............................4 3.1 Main features ............................4 3.2 Hardware and software features ....................4 4 Dimensions and Installation ........................6 5 Electrical wirings ............................6 6 Mounting .................................7 7 Con guration ..............................7 7.1 Remarks ..............................7 8 EnergyMeter-Programmer .........................8 9 Modbus Register Map ..........................8... -
Page 3: Safety Guide Lines
Model identi cation Power supply 9..30 V DC ENERGY-0-RS Power / Energy Meter Single Phase AC/DC TRMS - RS485 Modbus Technical data 3.1 Main features... - Page 4 power: < 0,5% F.S. Frequency: +/- 0,1 Hz Energy: +/- 1% of reading Vpeak, I peak: +/- 5% f.s. Measurement Irms, Vrms, Watt, Var, Va, Vpk, Ipk, Frequency, Cosφ, Energy bidirectional, THD Temperature coe cient < 200 ppm/°C Working temperature -15..+65°C Storage temperature -40°C.. +85°C Type of measure TRMS or DC Range Current: Up to 50 A AC/DC Voltage: up to 800 V AC or 1000V DC RS485 customize setting with free interface software...
-
Page 5: Dimensions And Installation
Dimensions and Installation ENERGY-0-RS 1000 V 800 V ac/dc TRMS AC/DC 1-ph energy meter Cat III: 600 V 9..30 V DC Cat II: 1000 V 63,0 mm Electrical wirings Although this controller was designed to resist electromagnetic interferences in industrial environments, please observe following safety guidelines: • Separate the control line from the power wires. -
Page 6: Mounting
Mounting The Power Meter ENERGY-RS can be mounted in any position (see photo below), horizontal or vertical mounting, horizontal or vertical through the two hooks for DIN rail included in the box. Con guration Using a serial link RS485-USB you can connect the energy-rs with the interface program EnergyMeter-Programmer. -
Page 7: Energymeter-Programmer
Dip-switch settings All setting from EEPROM Set Address 1- Baud 9600 Set Address 1 -Baud 38400 EnergyMeter-Programmer The free interface program EnergyMeter-Programmer is the fastest way to con gure the device. The changes made to the program act on the register of the device. To restore the default con guration, just press the button FACTORY DEFAULT. Type of measure Allows the selection of the measure RMS or DC only to de ne the sign (positive or negative) of reading... - Page 8 Modbus Register Map Default Modbus Register Comment Register Type R/W Range Value Address Name Machine ID Machine ID Unsigned short 40001 FW version Firmware version Unsigned short 40002 Address Modbus address Unsigned short R/W 40003 Delay Machine answer delay (in characters) Unsigned short R/W 0..1000 40004 0= 1200, 1= 2400, 2= 4800, 3=...
- Page 9 Default Modbus Register Comment Register Type R/W Range Value Address Name Float 40077 Active Power Measurement (W) (LSW rst) 40078 Float 40079 Reactive Power Measurement (VAR) (LSW rst) 40080 Float 40081 Apparent Power Measurement (VA) (LSW rst) 40082 Float 40083 Cosφ...
- Page 10 Default Modbus Register Comment Register Type R/W Range Value Address Name Float 40119 Cosφ MAX Max Cosφ (LSW rst) 40120 Float 40121 Cosφ min Min Cosφ (LSW rst) 40122 Float 40123 Frequency MAX Max Frequency (Hz) (LSW rst) 40124 Float 40125 Frequency min Min Frequency (Hz) 40126...
- Page 11 Default Modbus Register Comment Register Type R/W Range Value Address Name Total Energy measurement (KWh) Float 40149 Energy SW swapped (MSW rst) 40150 Energy positive Only positive Energy Measurement Float 40151 (KWh) swapped (MSW rst) 40152 Energy Only negative Energy Measurement Float 40153 negative SW...
- Page 12 Default Modbus Register Comment Register Type R/W Range Value Address Name bit 0: ash settings error; bit1: ash calibration error; bit 2: Voltage Over Range; bit 3: Voltage Under Range; bit [4:5] Reserved; bit 6: Zero crossing detecting; STATUS 100 Unsigned short 40192 bit[7:9] Reserved;...
- Page 13 Default Modbus Register Comment Register Type R/W Range Value Address Name Max RMS Current (mA/100) in Signed long 40223 I MAX 100 hundredths (LSW rst) 40224 Min RMS Current (mA/100) in Signed long 40225 I min 100 hundredths (LSW rst) 40226 Max RMS Power (W/100) in Signed long...
- Page 14 Read carefully the safety guidelines and programming instructions contained in this manual before using/connecting the device. 2300.10.219-RevA Software Rev. 1.00 080914...
