TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com
FLUSH HORIZ. SIDEWALL SPRINKLERS, RES/QR-EC/EC
MODEL F993 AQUARIUS
PUSH-ON PLATE
WITH EXTENSION
COMPONENTS:
1 - Dust Cap
6 - Heat
2 - Arms
Collectors
3 - Body
7 - Inner Loading
4 - Gasketed
Plate
Button-
8 - Outer Loading
Deflector
Plate
5 - Retaining
9 - Loading
Ring
Screw
5.6 K-FACTOR MODEL F993 AQUARIUS (SIN G8993) RES/QR-EC/EC
GENERAL DESCRIPTION
The 5.6 K-Factor, Model F993 Aquar-
ius RES/QR-EC/EC Horizontal Side-
wall Sprinklers (Ref. Figure A) are
automatic sprinklers of the fusible sol-
der type. They are low profile, flush
mounting sprinklers which are in-
tended to be used in
• wet pipe residential sprinkler sys-
tems for one- and two-family dwell-
ings and mobile homes per NFPA
13D,
• wet pipe residential sprinkler sys-
tems for residential occupancies up
to four stories in height per NFPA
13R,
• wet pipe sprinkler systems for the
residential portions of any occu-
pancy per NFPA 13,
Printed in U.S.A. 7-02
Customer Service/Sales: Tel: (800) 558-5236 / Fax: (800) 877-1295
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
®
, 5.6 K-FACTOR
PUSH-ON
PLATE
10 - Solder Element
11 - Disc Spring
12 - Insulating
Washer
13 - Tamper
NOTE:
Resistant
The Fusible Element Assembly (consisting of Components 5 through 14)
Plug
falls out of he Body upon sprinkler operation.
14 - Spacer

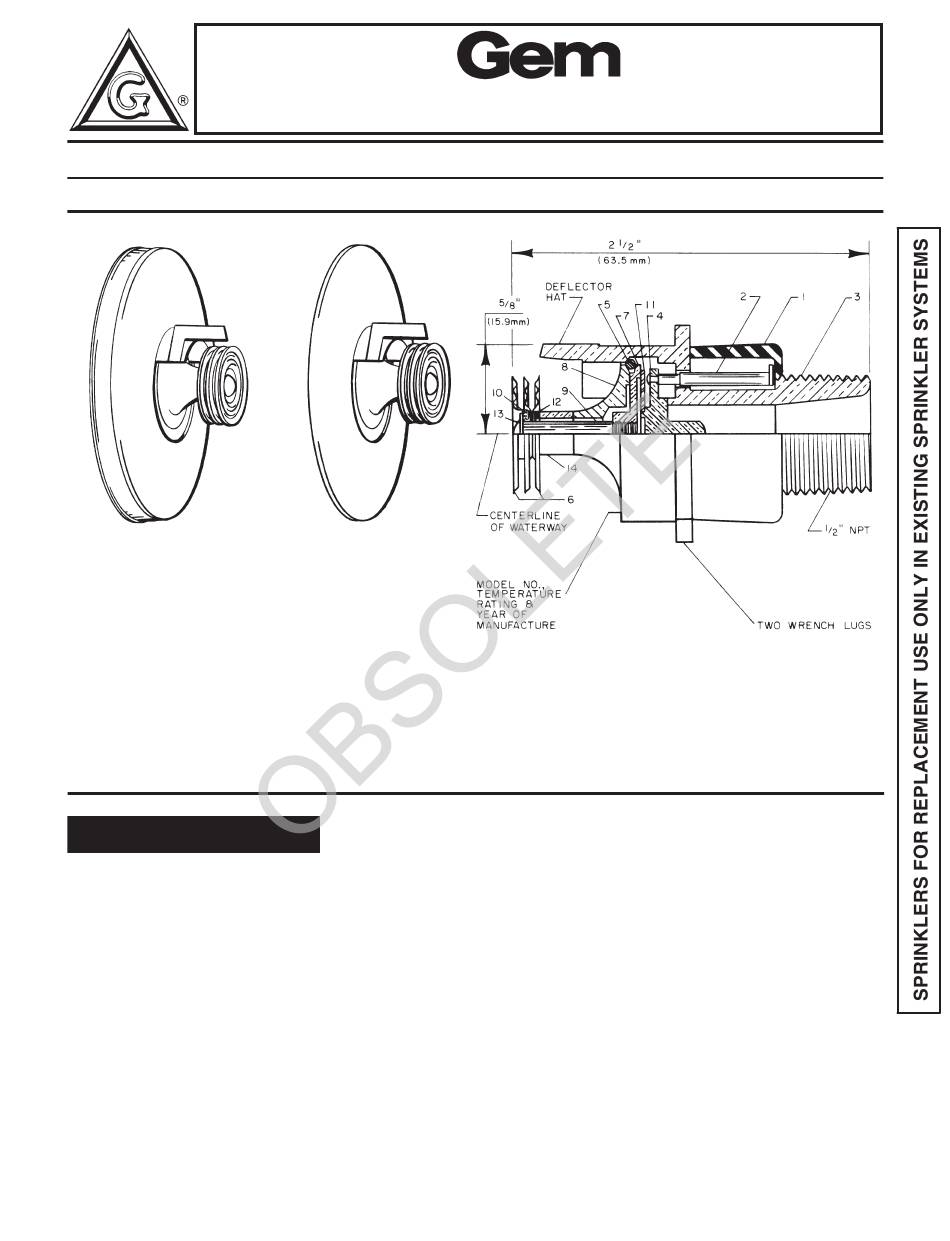

FIGURE A
HORIZONTAL SIDEWALL SPRINKLERS
• light hazard, quick response — ex-
tended coverage (QR-EC) sprinkler
system applications per NFPA 13,
and
• light hazard, extended coverage
(EC) sprinkler system applications
per NFPA 13.
Small and attractive, the F993 Sprin-
klers are installed with a Push-on Es-
cutcheon Plate and feature a smooth,
low profile, flush-style design with an
aesthetically pleasing appearance that
blends in with all types of surround-
ings. They are designed for installation
along a wall or lintel and just beneath
a smooth and level ceiling. Horizontal
sidewall sprinklers are generally used
in lieu of pendent or upright sprinklers
because of aesthetic, building con-
struction, or installation economy con-
siderations.
The 1/4 inch adjustment provided by
the Push-on Escutcheon Plate and the
additional 1/4 inch of adjustment that
can be obtained by use of the Exten-
sion reduces the accuracy to which the
sprinklers must be positioned. The 3
inch outside diameter of the Push-on
Plate also contributes to the ease of
installation by covering offset clear-
ance holes.
The F993 Sprinklers have been de-
signed to operate with a particular fus-
ible element temperature rating and
heat sensitivity characteristic, as well
as to discharge water in a specific pat-
tern and quantity per square foot rela-
tionship. The combination of the per-
formance characteristics which are
associated with the F993 Sprinklers
have been proven to help in the control
of residential type fires and, therefore,
to improve the chance for occupants to
escape or be evacuated.
TD591
