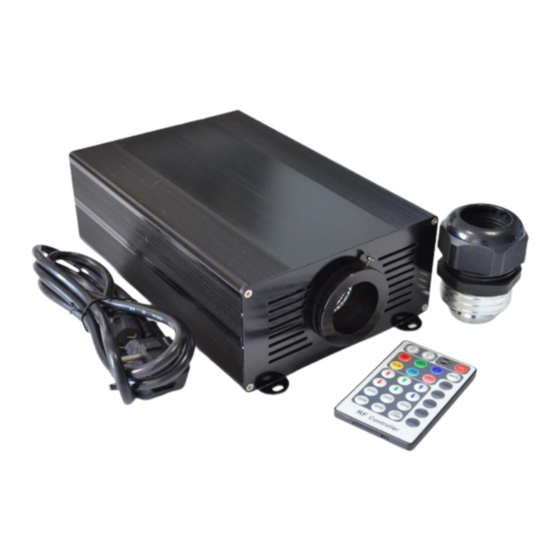

MK-45 RGB fibre optic light engine
User manual
Technical specification
Light engine model
Programmes
Remote controller
Light source type
CRI (Ra>):
IP rating
Light colour mode
Working voltage
Rated power
Material of housing
Light engine dimensions
Light engine weight
Remote control dimensions
Fibre optic port diameter
Fibre optic bundle compatibility:
Lifetime
Warranty
Package dimensions (excluding fibre optic bundle)
Weight with packaging
www.stellarlighting.co.uk
email: info@stellarlighting.co.uk
Features:
• 45W light engine with RGB LED light
source
• 29 mm port diameter
• RF remote
MK-45-RGB
Brightness, speed, 5 programs, custom programs,
on/off
Yes, RF
LED
80
IP20
RGB
DC12V
45 W
Aluminium
243 mm (L) x 150 mm (W) x 75 mm (H)
1.9 kg
85 mm x 52 mm x 7 mm
30 mm
B-29-XXX
50,000 hours
2 years
290 mm (L) x 250 mm (W) x 130 mm (H)
2.5 kg
1
Advertisement
Table of Contents
Summary of Contents for Stellar Lighting MK-45 RGB
- Page 1 MK-45 RGB fibre optic light engine User manual Features: • 45W light engine with RGB LED light source • 29 mm port diameter • RF remote Technical specification Light engine model MK-45-RGB Brightness, speed, 5 programs, custom programs, Programmes on/off...
- Page 2 MK-45 RGB fibre optic light engine User manual Safety notices Electrical work safety advice and tips ● Make sure the input voltage is correct. ● Avoid placing the light engine in the rain or in moist areas. Please ensure that the light engine has sufficient ventilation and is not placed in a completely sealed area.
- Page 3 MK-45 RGB fibre optic light engine User manual Connection method between optical fibres and the light engine Your fibre optic bundle will come with the connector fittings ready to connect to the light engine. However, if you need to adjust your bun follow the steps below.
- Page 4 MK-45 RGB fibre optic light engine User manual Remote controller operation www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
- Page 5 MK-45 RGB fibre optic light engine User manual www.stellarlighting.co.uk email: info@stellarlighting.co.uk...
- Page 6 MK-45 RGB fibre optic light engine User manual Pairing the remote controller The remote controller is normally paired with the light engine, so you don’t have to do this when you receive the light engine. However, in some cases the remote controller can unpair from the light engine.
