Summary of Contents for Unitone UNI-VM7-BL

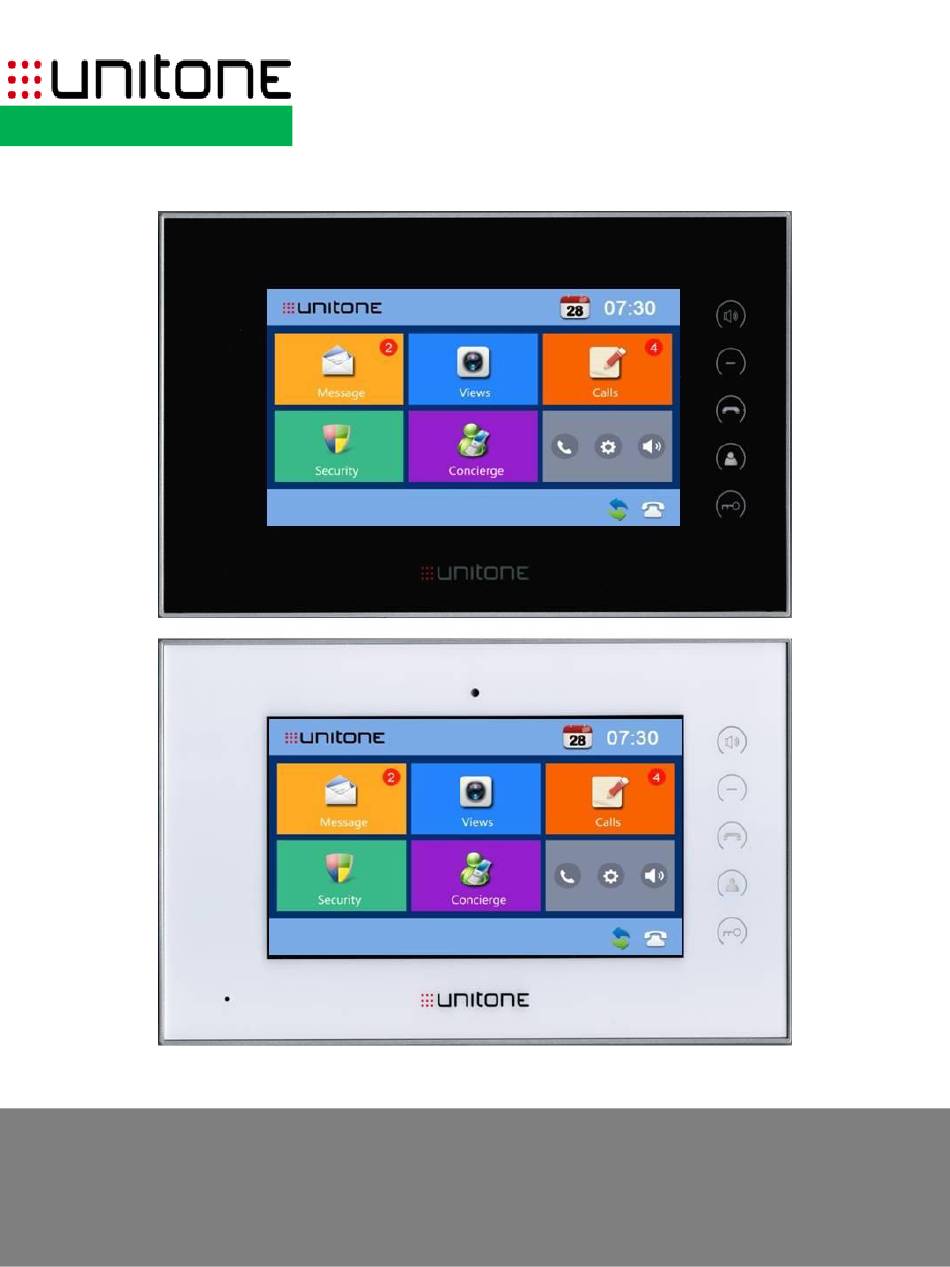

- Page 1 UNI-VM7-BL \ UNI-VM7-WL USER MANUAL - IP 660 Ver.081519...
- Page 2 TABLE OF CONTENTS Introduction ……………………………………………………3 Messages ……………………………………………………4 Views ……………………………………………………5 ……………………………………………………6 ……………………………………………………7 ……………………………………………………8 ……………………………………………………9-10...
- Page 3 Introduction UNI-VM7-BL \ UNI-VM7-WL Getting to know the indoor monitor 7'' capacitive touch screen Speaker Hands free Reserved Calling management center Monitoring Unlocking Microphone ARM Core x-A7 1.2 GHz MEMORY 64MB DDR2 SDRAM FLASH MEMORY 128MB NAND OPERATION SYSTEM Li nux...
- Page 4 Messages Messages Press to view messages (screen below will appear) Messages FedEx package is waiting for you at the concierge desk 06/25/19 UPS package is waiting for you at the concierge desk 06/24/19 MAINTANENCE – No hot water on 06/30/19 bet 10:30… 06/21/19 To view extra long message: Press the message line twice To scroll: Use the up...
- Page 5 Views Views Press to monitor camera views and outdoor stations Views (screen below will appear) Press To monitor outdoor call panels Press To see cameras views Press to go back “Monitor” “Camera” Door1 Click “Left” or “Right” to select Click “Left” or “Right” to select view.
- Page 6 Calls Calls Press to view recent calls (screen below will appear) Calls Refers to outgoing calls Refers to incoming calls Refers to missed calls To scroll: Use To delete: Click on desired call and press Press to view visitor’s snap shot (if taken) Press to listen to voice message (from APT caller or Call Panel) NOTE: Indoor monitor can store a maximum of 64 calls...
- Page 7 Security (Optional) * Security Press to turn the alarm on or off (screen below will appear) Security To arm the system: Choose the desired profile to activate sensors. The chosen icon will turn Red and will emit “beep beep”. Note: System has a built-in delay time before sensors are activated (delay time is configured in settings).
- Page 8 Concierge Concierge Press to call concierge Concierge Call APT. To call other apartments press (screen below will appear) Dial the APT code followed by Mute Press to mute (icon will turn Red) Press to unmute (icon will turn back to normal)
- Page 9 Settings Note: “Room”, “Network”, “Admin PWD”, “Zone” and “Version” in the settings menu are designated for technicians only. Press to enter “settings” (screen below will appear) To raise or lower the volume, tap on the volume bar. Press OK to store changes.
- Page 10 Settings To change the user password, Click on “User PWD” (screen below will appear) Put in the old password (Default password is 1234). Input new password. Confirm new password. Press OK to store. To change the alarm zone profiles, Click on “Scene” (screen below will appear) To change the built-in delay time, click on “Activation time”...
