Summary of Contents for FunkTronic FT 636

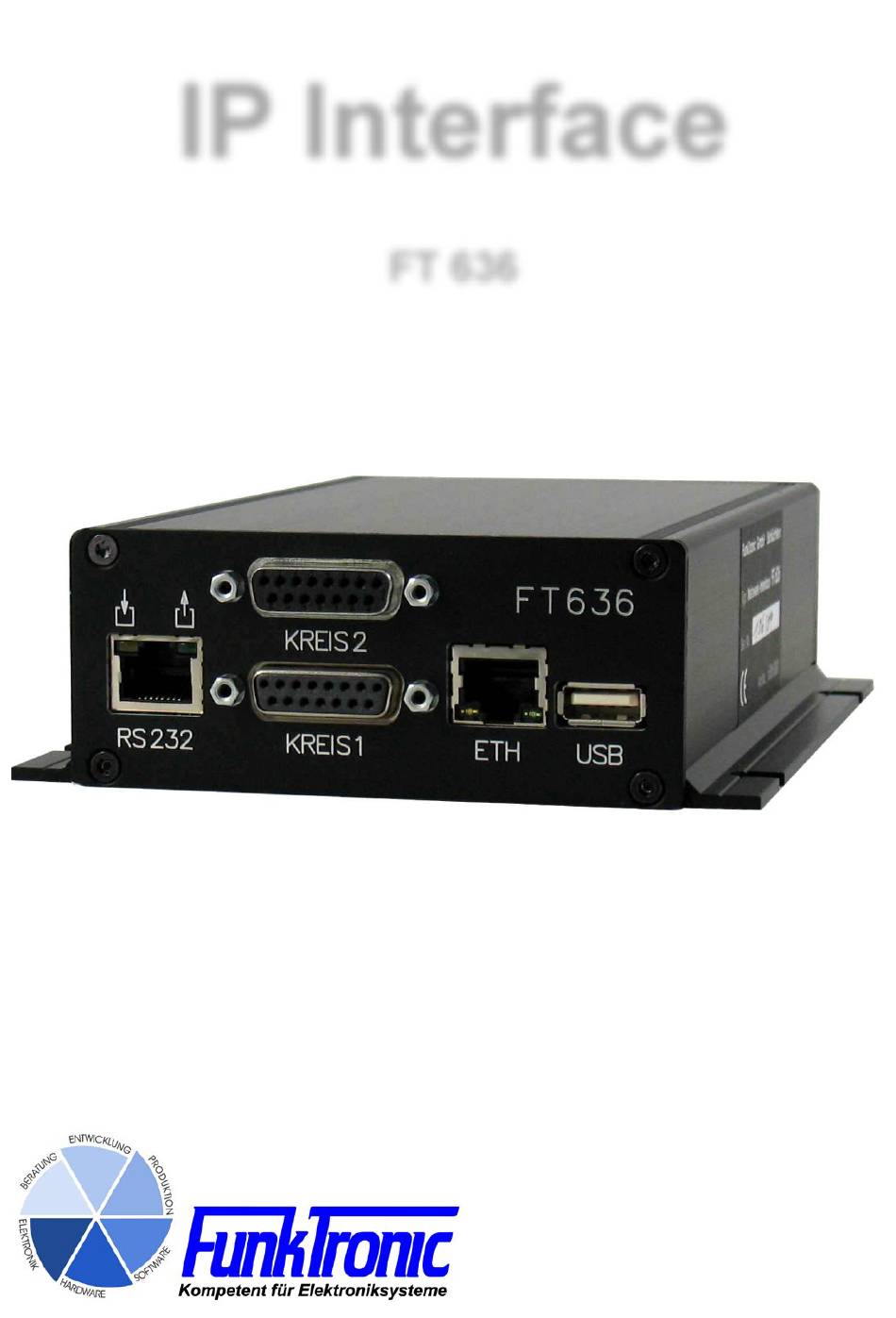

  • Page 1 IP Interface FT 636...

  • Page 2: Table Of Contents

    Inhalt General features Examples Two connection examples via local network (LAN) Two radio circuits via local network (LAN) to different sites A radio circuit via internet (WAN, DSL) Multi-wire-connection of the FT636 IP Interface 2-wire connection of the FT636 IP Interface Connectors RS232-Connection cable Configuration...

  • Page 3: General Features

    General features The FT636 IP Interface is used when you want to remotely use a two-way-radio. By using VoIP (Voice over IP) and RoIP (Radio over IP) practically unlimited distances can be bridged. As the AF-information and the control information are transmitted via IP and Ethernet, every local data network (LAN) and the internet (WAN) can be used for transmission.

  • Page 4: Examples

    Examples Two connection examples via local network (LAN) Major 6a Ethernet IP Interface IP Interface switch This example shows the operation of two radio circuits with an operation ter- minal Major 6a. The Major 6a can support up to 4 radio circuits , so that two additional IP Interfaces and two two-way radios can be added.

  • Page 5: Multi-Wire-Connection Of The Ft636 Ip Interface

    All before shown connections can be set up in 2-wire and in-multi-wire-technique. Therefore it is possible to fl exibly install the FT636 in existing infrastructures. Multi-wire-connection of the FT636 IP Interface The FT636 IP Interfaces are factory-set to support the multi-wire-technique. For this 7 wires are needed ( 4 x AF-In/Out, 1 x PTT, 1 x Squelch, 1 x Ground).

  • Page 6: Connectors

    Connectors RS232, digital outputs - 8-pole RJ45-"Western" jack pilot tone on transmitter relay on I/O 12 (in/output) I/O 11 (in/output) I/O 10 (in/output) I/O 08 - 12 are ex-factory configured I/O 09 (in/output) as inputs with pull-up. I/O 08 (in/output) (in/output) RS232 RxD (input) RS232 TxD (output)
  • Page 7 15-pole Sub-D jacks (RADIO 1 and RADIO 2) IN : + 12 V IN: + 12 V OUT: PTT-relay 10 IN: squelch OUT: PTT-relay 11 IN: radio, AF in OUT: radio, AF out 12 IN: radio, AF in OUT: radio, AF out 13 I/O: I/O 2 (o.C.) / 6 I/O: I/O 0 (o.C.) / 4 14 I/O: I/O 3 (o.C.) / 7...

  • Page 8: Rs232-Connection Cable

    4-pole USB-A jack + 5V - 1 - Data - 2 + Data - 3 GND - 4 RS232-Connection cable RS232 jack on FT634 Computer equipped with RS232 9-pole jack RxD RS232 TxD RS232 ft636 (14.10.2013) - 8 - Kompetent für Elektroniksysteme...
  • Page 9 64-pole bus connector, 19 inch version ------------------------------------------------------------------------------------------------------------ IN : + 12 Volt + 12 Volt IN : analog 1 (0-7V) analog 2 (0-7V) I/O: I/O 08 (Pull-up 5V) I/O: I/O 09 (Pull-up 5V) IN : radio, AF in 2 I/O: I/O 10 (Pull-up 5V) OUT: radio, AF out 2...

  • Page 10: Configuration

    Configuration General remarks The FT636 IP Interface uses TCP/IP via Ethernet for transmitting radio communication and control information. Be sure to note the occuring particularities. First the terms will be explained with an easy example, then some more complex confi guration examples will be illustrated. The easiest confi guration is that both involved IP Interfaces are installed in the same network seg- ment of the local network.
  • Page 11 You can now connect the first FT636 IP Interface for configuration (power and network). A web-browser is opened on the PC (Internet Explorer, Firefox, Opera, ...) and the following is en- tered in the address bar: http://192.168.16.191 The configuration page of the FT636 IP Interface appears (see below). Select „Configuration 0 (TCP/IP)“...

  • Page 12: Preparing The Pc For Configuration

    Preparing the PC for confi guration As mentioned above the FT636 IP Interfaces are confi gurated with a web browser. It does not mat- ter which operation system (Windows, Linux, Apple Mac ...) is used on the PC. The web browser (Firefox, Internet Explorer, Opera,...) can also be chosen freely.
  • Page 13 Linux PC The setting of a Linux PC is basically done in the same way as described in the Windows example. Of course the windows look different and also differ from Linux version to Linux version (Ubuntu, Debian, Suse, RedHat, ...). The following also applies here: If the PC is already attached to a network a second IP address will be assigned.

  • Page 14: The Ft636 Ip Interface Configuration Interface

    The FT636 IP Interface configuration interface The configuration of the FT636 is carried out on a website, which is provided by the device. To do this the IP nterface has to be connected to the network and the configuration PC has to be set up as described in the previous paragraph.

  • Page 15: Tcp/Ip Settings

    TCP/IP settings Here the adjustments of the network and for the AF transfer are made. Like the page shown above, this page also has some help texts on the right which explain the set- ting options. This shows the ex factory settings. These settings have to be adjusted to the respective defaults or operating conditions as explained in the following paragraphs.
  • Page 16 To save the setting please click „Apply“ at the bottom of the page. The device will then start with the new settings. COMMUNICATION SETTINGS Number of radio circuits One or two radio circuits can be operated simultaneously. Necessary bandwidth: One radio circuit: min. 96kBit/s Two radio circuits: min.
  • Page 17 Please note: The gateway only has to be entered, if the connection is made via WAN (by a rou- ter/ a gateway). Default: „0.0.0.0“ Primary DNS server Here you can enter DNS Servers for name resolution (for example www.funktronic.de). Example: „195.186.1.111“ Default: „0.0.0.0“ Alternative DNS A further DNS server, if the first cannot be contacted.

  • Page 18: Potentiometer Settings

    Potentiometer settings You can reach the page for potentiometer settings under „Application“ by first clicking on the entry field „Mode“ on the main page, then click on „FT636 IPI configuration 1 (Potis, ftipcfg1)“ and then on „Apply“. Here the AF-in- and outputs are adjusted to the connected devices. The potentiometer values can be entered directly in the fields 1 - 4, or can be modified gradually with the + / - keys.

  • Page 19: Setting Of The Potentiometers And Adjustment Instructions

    Setting of the potentiometers and adjustment instructions VoIP1, VoIP2, Line1, Line2 These are the AF levels pertaining to the potentiometer values. This page is refreshed every se- cond in order to see how the values change during the setting. Assignment: Poti 1 - VoIP 1, signal from network, radio circuit 1 Poti 2 - Line 1, signal from input, radio circuit 1 Poti 3 - VoIP 2, signal from network, radio circuit 2...

  • Page 20: Register Settings

    Register settings Here you can program the registers to configurate different funtions of the device. Registers always have to be entered with 3 digits, the values always with 8 digits. The additional help texts on the right explain the settings. ft636 (14.10.2013) - 20 - Kompetent für Elektroniksysteme...
  • Page 21 Function RX/TX LED, IP announcement timer digit: 0 = RX/TX LEDs as marked, 1 = RX/TX LEDs switched 2.+3. digit: nn*1s max. AF-interconnection time for IP announcement AF-mute 1.-2. digit: ca. nn*0,9mV threshold value AF-mute, activate line 3.-4. digit: ca. nn*0,9mV threshold value AF-mute, deactivate line 5.-6.
  • Page 22 Line input configuration 1. digit decoder 0 = off 1 = PIL 2 = SQL 3 = PIL+SQL 4 = AF-squelch 5 = PIL+AF 6 = SQL+AF 7 = PIL+SQL+AF 2. digit operation mode 0 = 4-wire TX always 600 Ohm 1 = 4-wire TX high-impedance, only when transmitting 600 Ohm 2 = 2-wire simplex, always 600 Ohm 3 = 2-wire simplex high-impedance, only when transmitting 600 Ohm...
  • Page 23 Channel remote switching register 1.-3. digit digits 1-3 of the channel remote switching tone sequence Channel register 1. digit save channel 0 = no 1 = yes 2 = save relay 2.-3. digit channel 00-99 for version BOS 1. digit save channel 0 = no 1 = yes 2 = save relay...
  • Page 24 Configuration AF-Delay Voip > Line For the delay the remaining available RAM is used. This delay can be shorter for later versions or special software versions. The specified maximum delay time may then be shorter. This delay time is shared by both radio circuits. At first the programmed value for radio circuit 1 is set.
  • Page 25 Switching inputs 1.-4. digit tone sequence switching inputs digits 1-4 5.-8. digit expected acknowledgement Alarm tone sequence 1.-4.digit Alarm tone tone sequence, digits 1 - 4 5. digit after start transmit tone sequence even without active alarms Multiplicator for output level The registers 230-235 indicate the internal amplifying values of the individual sources to the line.

  • Page 26: I/O Configuration

    I/O configuration The functions of the in- and outputs are set here. The corresponding registers, which save the pro- gramming, are indicated. Always enter the corresponding values 8-digitally. Help texts can again be found on the right side. ft636 (14.10.2013) - 26 - Kompetent für Elektroniksysteme...
  • Page 27 On this page you can configurate the in- and outputs of the FT636. Output configurates the function of the outputs 0 - 15, Input configurates the function of the inputs 0 - 15. Two functions can be assigned to the inputs. One when the input changes from passive to active and one when the input changes from active to passive.
  • Page 28 remotely controlled switching output 2. digit 1: VoIP 1 2: VoiP 2 4: Control center telegram (LS version only) 3. digit 0-F: switching output bit 4. digit 0: normal 1: inverted Output of PTT and SQL 2. digit: 1: Circuit 1 (SQL 1 or PTT 1) 2: Circuit 2 (SQL 2 or PTT 2) 3: Circuit 1 and 2 (logical OR of SQL 1/2 or PTT 1/2) 3.
  • Page 29 remotely controlling input 2. digit 1: VoIP 1 2: VoIP 2 3: both 3. digit 0-F: input number 4. digit 0: passive 1: active Example: Output of Squelch and PTT signals Squelch input of Radio 1 is to be output to I/O 2 (ST 2 / Pin 13): Register 042 = 51000000 PTT output of Radio 1 is to be output to I/O 3 (ST 2 / Pin 14): Register 043 = 51100000...

  • Page 30: Standard Operation

    Standard operation No adjustments can be made here. An overview of the connection adjustments and of the connec- tion state is displayed here. On the lower part of the left page the incoming UDP packets and the outbound as well as the incoming TCP connection is displayed. Incoming UDP packets: about 50 per second, they provide the audio information Incoming TCP connection: the connection is set up by the remote side and can come from any TCP port.

  • Page 31: Configuration Examples

    - The network part of the IP address is 172.16 (in this case the first two digits). - The network mask is 255.255.0.0 (determines the network part of the address). - The FT 636 IP Interfaces are assigned the following IP addresses: 1) 172.16.200.101 2) 172.16.100.201...

  • Page 32: In The Local Network, In Different Network Segments

    In the local network, in different network segments Major 5a control head IP Interface Ethernet switch Router Two-way radio IP Interface Ethernet switch This example shows a configuration where the FT535 IP Interfaces and therefore the control head and the two-way radio are in different segments of the network. The segments are connected by a router.

  • Page 33: Connection Via The Internet (Dsl)

    Connection via the internet (DSL) Major 5a control head IP Interface Ethernet switch DSL-Router DSL-Splitter Connection via the internet DSL-Splitter DSL-Router Two-way radio IP Interface Ethernet switch This configuration shows the possible components when connecting with the internet. The ethernet switches may or may not be available according to the requirements of the network.
  • Page 34 In this case the installation is more complex, as you have to take the DSL router into consideration in this configuration. The router mainly has two functions. One is to set up the connection to the DSL provider. The other function is to receive data from the local IP Interface and to transmit the data via internet to the remote location.

  • Page 35: Connection Via Internet (Dsl) With Vpn Tunnel

    Connection via internet (DSL) with VPN tunnel This connection basically looks like the variant described in the previous paragraph. But a so called VPN tunnel (Virtual Private Network) is set up via internet. This is the safest connection via internet as it can only be „seen“...

  • Page 36: Connection Via Isdn

    The setting of the FT636 IP Interfaces then could be: Control head unit side Two-way radio side Local IP address 192.168.0.2 192.168.1.2 Target IP address 192.168.1.2 192.168.0.2 Net mask 255.255.255.0 255.255.255.0 Gateway 192.168.0.1 192.168.1.1 It would be too lengthy to explain in detail the router´s configuration of the VPN settings concerning the internet.

  • Page 37: Ordering Information

    Technical data Voltage of operation 12 V Current demand ca. 300 mA Weight ca. 525 g Dimensions W x H x D 104 x 44 x 175 mm Input impedance radio 600 Ohm Output impedance radio 600 Ohm Output level radio -30 ...
  • Page 38 Revision remarks Modifications made are only mentioned in note form in this section. For detailed information please read the corresponding chapters. 30.04.2009 New configuration interface 04.05.2009 Adjustment instruction complemented 25.05.2009 Cable description FT636 <--> Major 02.06.2009 Register configuration for 2-wire-connection 14.06.2009 Potentiometer configuration complemented (through-connection AF) 26.06.2009...
