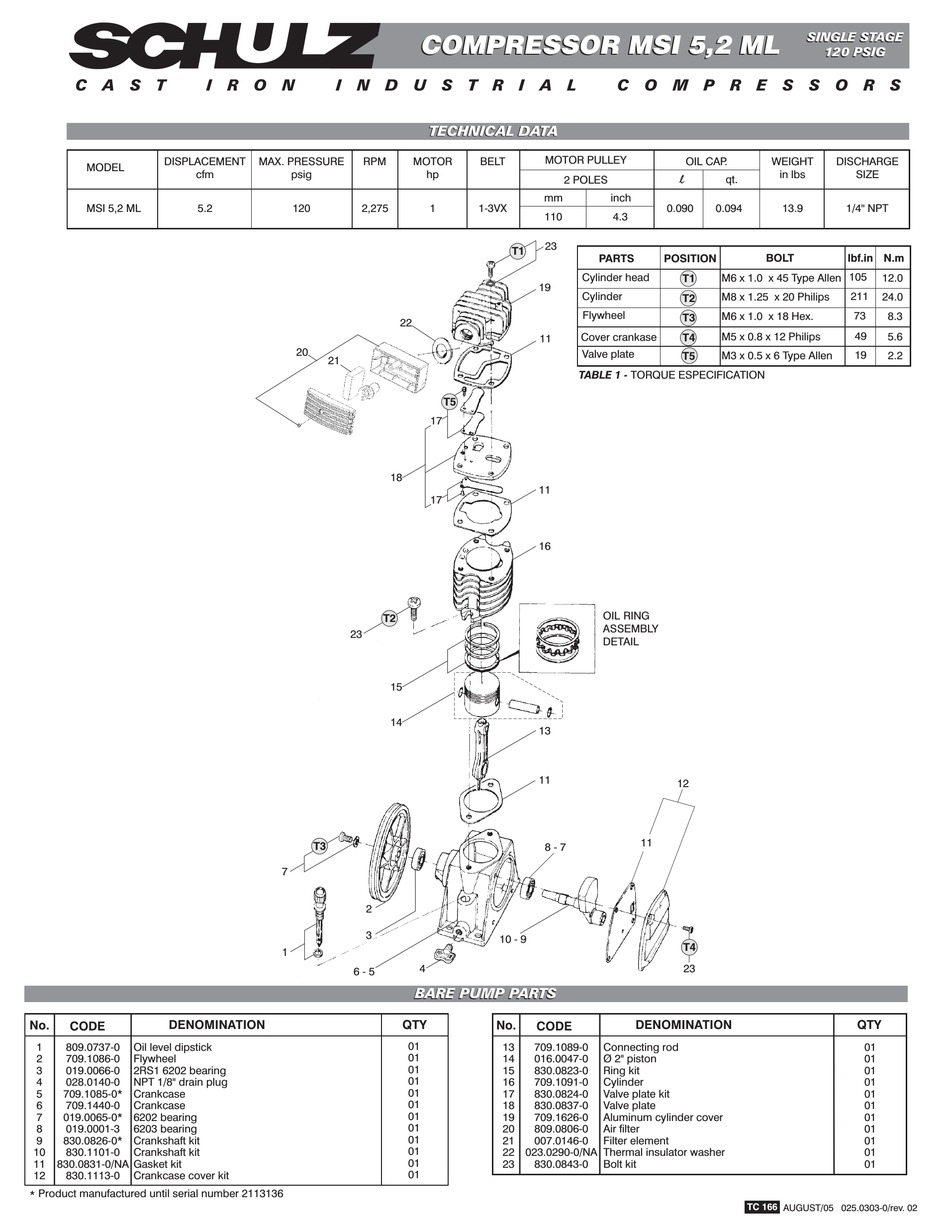

Schulz MSI 5,2 ML Quick Start Manual

C A S T I R O N
DISPLACEMENT
MODEL
cfm
MSI 5,2 ML 5.2
No. DENOMINATION
CODE
1 809.0737-0 Oil level dipstick
2 709.1086-0 Flywheel
3 019.0066-0 2RS1 6202 bearing
4 028.0140-0 NPT 1/8" drain plug
5 709.1085-0* Crankcase
6 709.1440-0 Crankcase
7 019.0065-0* 6202 bearing
8 019.0001-3 6203 bearing
9 830.0826-0* Crankshaft kit
10 830.1101-0 Crankshaft kit
11 830.0831-0/NA Gasket kit
12 830.1113-0 Crankcase cover kit
* Product manufactured until serial number 2113136

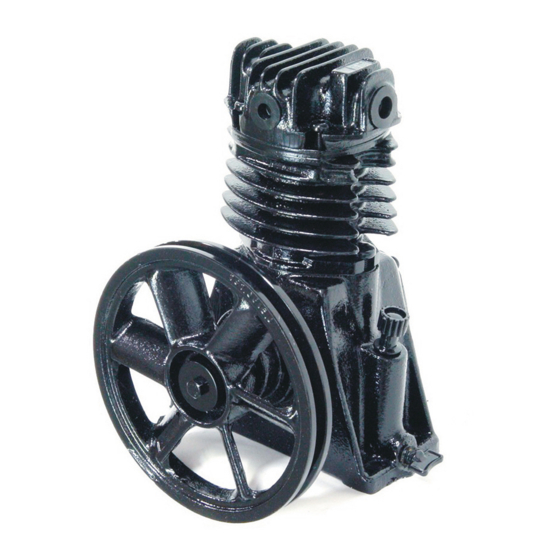

COMPRESSOR MSI 5,2 ML
COMPRESSOR MSI 5,2 ML
I N D U S T R I A L
TECHNICAL DATA
TECHNICAL DATA
MAX. PRESSURE RPM MOTOR
psig hp
120 2,275 1
22
20
21
17
18
17
T2
23
15
14
T3
7
2
3
1
4
6 - 5
BARE PUMP PARTS
BARE PUMP PARTS
QTY
01
01
01
01
01
01
01
01
01
01
01
01
C O M P R E S S O R S
MOTOR PULLEY
BELT
2 POLES
mm inch
1-3VX
110 4.3
23
T1
PARTS
Cylinder head
19
Cylinder
Flywheel
Cover crankase
11
Valve plate
TABLE 1 - TORQUE ESPECIFICATION
T5
11
16
OIL RING
ASSEMBLY
DETAIL
13
11
8 - 7
10 - 9
No.
CODE
13 709.1089-0 Connecting rod
14 016.0047-0 Ø 2" piston
15 830.0823-0 Ring kit
16 709.1091-0 Cylinder
17 830.0824-0 Valve plate kit
18 830.0837-0 Valve plate
19 709.1626-0 Aluminum cylinder cover
20 809.0806-0 Air filter
21 007.0146-0 Filter element
22 023.0290-0/NA Thermal insulator washer
23 830.0843-0 Bolt kit
SINGLE STAGE
SINGLE STAGE
OIL CAP . WEIGHT
in lbs
l qt.
0.090 0.094 13.9
BOLT
POSITION
T1
M6 x 1.0 x 45 Type Allen 105
T2
M8 x 1.25 x 20 Philips
T3
M6 x 1.0 x 18 Hex.
T4
M5 x 0.8 x 12 Philips
T5
M3 x 0.5 x 6 Type Allen
12
11
T4
23
DENOMINATION
120 PSIG
120 PSIG
DISCHARGE
SIZE
1/4'' NPT
lbf.in N.m
12.0
211
24.0
73
8.3
49 5.6
19
2.2
QTY
01
01
01
01
01
01
01
01
01
01
01
