DVIGear DVI-7311 Quick Start Manual

Quick Start Guide
Introduction

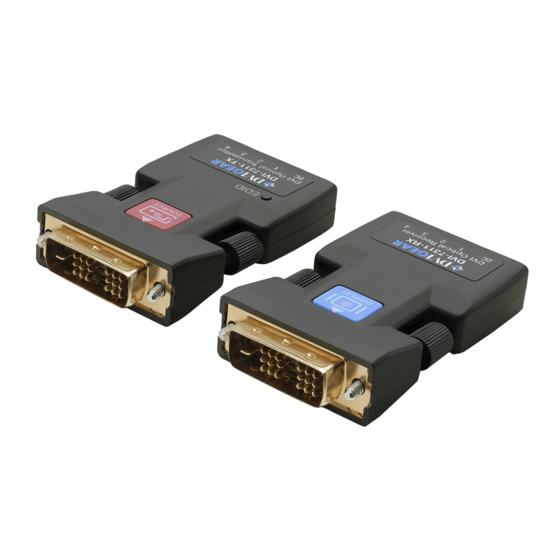

The DVI-7311 is a Fiber Optic Extender designed to transmit single-link DVI signals over optical fiber
cables at distances up to 500 meters (1,640 ft.). This extender provides exceptional signal fidelity and
supports a wide range of input resolutions. The unit consists of an optical transmitter module that
converts the DVI input signal into high-speed light pulses for transmission over four (4) detachable
multi-mode glass fibers and an optical receiver module that converts the light pulses back to a DVI
signal for display on a monitor or projector. A programmable memory chip in the transmitter unit
captures and stores the EDID from the connected display and presents it to the DVI source device.
These features make the DVI-7311 the ideal solution for any application that demands flawless image
quality from DVI signals that must be extended over very long cable distances.

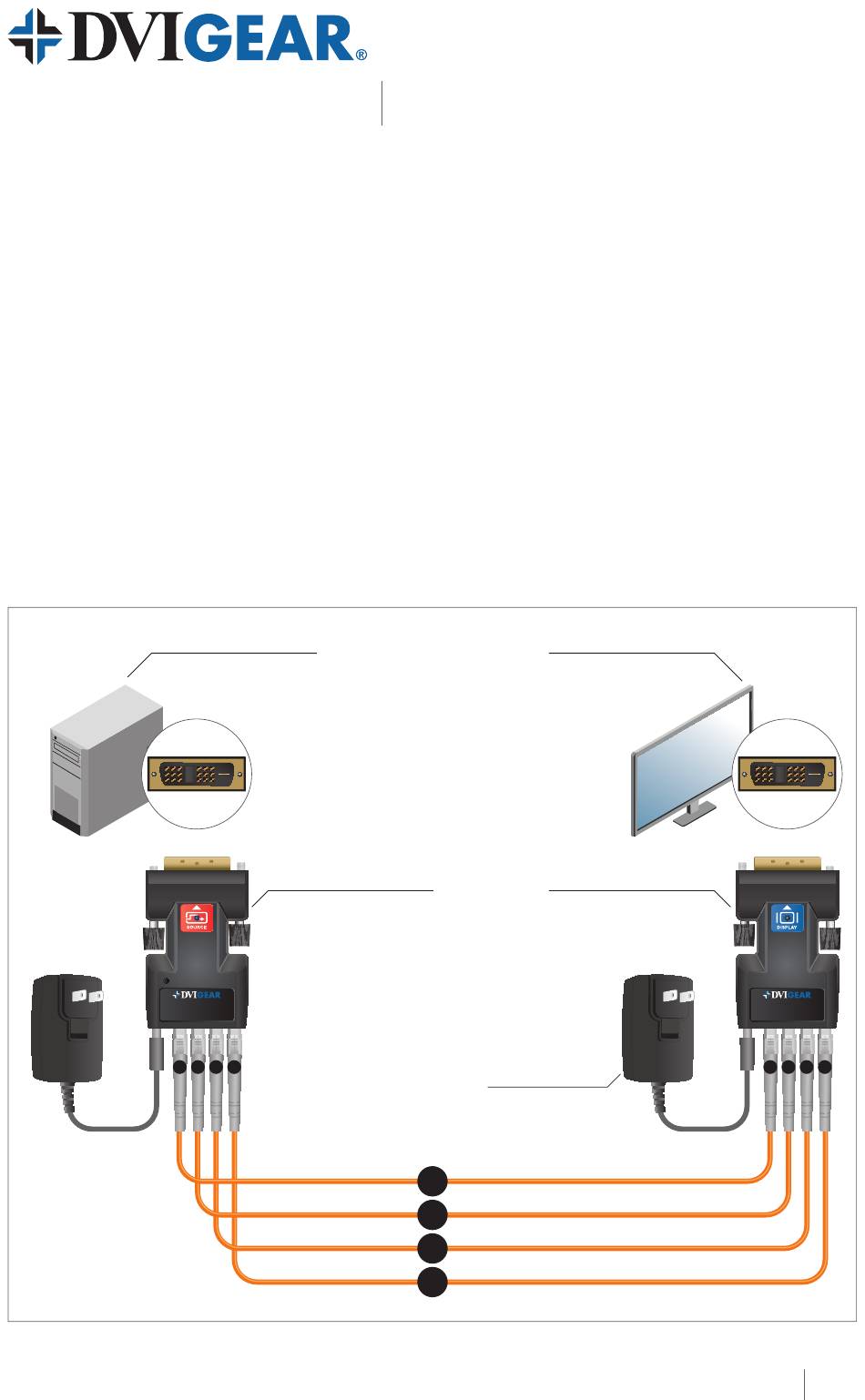

Typical Application
DVI Optical Transmitter
DC
Optional
AC Power
Adapter
DVI Port
DVI-7311-TX
Transmitter
EDID
DVI-7311-TX
1 2 3 4
1 2 3 4
DVI-7311 Single-Link DVI Fiber Optic Extender, 4x LC
Fiber Optic Extender, 4x LC
DVI Port
DVI-7311-RX
Receiver
AC Power
Adapter
1
2
3
4
DVI-7311
Single-Link DVI
DVI-7311-RX
DVI Optical Receiver
DC 1 2
1 2
3 4
3 4
1
