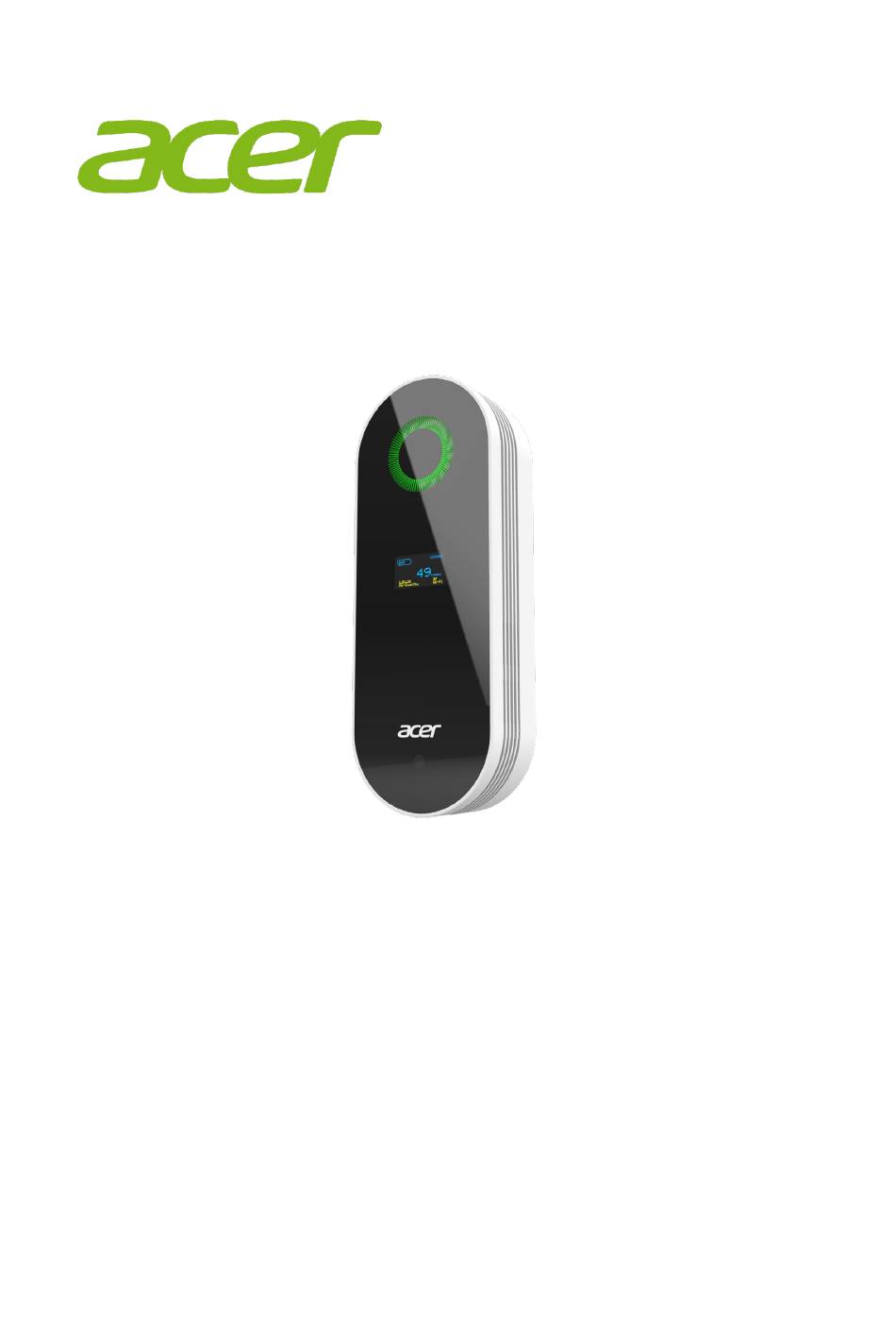

Air Monitor Pro
AMP220 User Guide
- 1 -


Table of Contents

Summary of Contents for Acer Air Monitor Pro

  • Page 1 Air Monitor Pro AMP220 User Guide 2018-10-v.1.0 - 1 -...
  • Page 2: Table Of Contents

    Install on a desktop holder ........................9 Install onto a wall mount holder ...................... 10 Download the Air Monitor Pro app from either the iOS App Store or the Google Play store................................11 Using Air Monitor Pro APP .......................... 12 Scan Bluetooth air quality broadcast .....................
  • Page 3: First Off

    First off… Congratulations on your purchase of Acer Air Monitor Pro. It is a first, positive step in helping you improve the air you breathe and your quality of life. This simple device monitors the air quality within its immediate surroundings.
  • Page 4 Through visual indicators on the device, as well as more detailed information on the app, the Acer Air Monitor helps track and gives advice on how to improve the air quality, your health, and the health of the ones you care about.
  • Page 5: Package Contents

    Package contents Make sure the following items are in your package. If anything is missing, contact your authorized dealer or distributor. Air Monitor Pro USB Cable USB Power Adapter Desktop Holder Quick Guide Warranty Card Note: Actual items might differ from illustrations.
  • Page 6: A Tour Of The Device

    A tour of the device Product Appearance Item Description Breathing LED light Lights up using different colors to show the current air quality. Display Show the air quality index and individual concentrations. Light Sensor Measure the ambient illumination. Function button Tune On/Off the Breathing LED light.
  • Page 7 Wi-Fi Green LED Wi-Fi Status Red LED Green LED Booting Flash Wait for setup Wi-Fi Red LED Connecting to Slow Flash access point Connected to Fast Flash access point Connected to cloud Resetting Flash Flash Wi-Fi Reset Button To reset Wi-Fi configuration, please use an unfolded paperclip to press and hold this button until the Wi-Fi Red LED lights up.
  • Page 8: Air Monitor Pro Display

    When you press it, you can switch back to the carousel mode. Item Description Sensor Name IAQ: Indoor Air Quality Temp: Celsius (Note: Air Monitor Pro has Humi.: Relative Humidity different configuration of PM2.5: Particular Matter size < 2.5 µm sensors. Please check your PM10: Particular Matter size < 10 µm product configuration.)
  • Page 9: Getting Started

    Getting started Install on a desktop holder 1. Attach the appropriate power adapter plug to the USB power adapter. 2. Gently insert and secure Air Monitor Pro along the two inner grain of the desktop holder. - 9 -...
  • Page 10: Install Onto A Wall Mount Holder

    2. The wall mount can be fixed to the wall. You may use attached screws to fix it. 3. Connect USB cable and Air Monitor Pro 4. Place Air Monitor Pro into the holder and secure it by Screw (B) 5. Plug to the USB power adapter...
  • Page 11: Download The Air Monitor Pro App From Either The Ios App Store Or The Google Play Store

    Do not cover the light sensor or place the device in the shade in order to ensure the best  experience. Download the Air Monitor Pro app from either the iOS App Store or the Google Play store. Note: Mobile system requirements: Android : Android 5.0 and above...
  • Page 12: Using Air Monitor Pro App

    Using Air Monitor Pro APP Scan Bluetooth air quality broadcast You can directly scan and read the immediate value without logging in to the account. If you have logged in to your account, you can go through the menu. - 12 -...
  • Page 13: Setup Wi-Fi Connection

    Setup Wi-Fi connection Please press Add icon in the upper right corner of the main page to set up Wi-Fi connection. It will guide you step by step to setup Air Monitor Pro for remote monitoring. 1. Please use an unfolded paperclip to press and hold the Wi-Fi Reset button until the Wi-Fi Red LED lights up.
  • Page 14 3. Switch back to Air Monitor Pro setting page. Select an SSID of Wi-Fi access point that allows your Air Monitor Pro to connect to the Internet. 4. After completing the Wi-Fi setup process, you can update the name of Air Monitor Pro.
  • Page 15: Device List

    Device List This page lists Air Monitor Pro, which has been set up for your account, and displays summary information. Item Description Indoor Air Quality (IAQ) IAQ index is calculated from PM2.5, PM10, TVOC, Index and CO2 values. Device Name...
  • Page 16: Individual Air Monitor Pro Page

    Individual Air Monitor Pro Page Display the details of individual Air Monitor Pro. Item Description Device Name Name of the Air Monitor Pro Indoor Air Quality (IAQ) Green: 0-50 Light Yellow: 51-100 Orange: 101-150 Red: 151-200 Purple: >200 Indoor Air Quality (IAQ)
  • Page 17 Sensor History Chart The history data of individual sensor selected by user. Return Back to the device list page Device Settings Press this icon can switch to the setting page of this Air Monitor Pro - 17 -...
  • Page 18: Using Map

    Using Map The MAP page can show the location of your Air Monitor Pro. The location of Air Monitor Pro is set by user. Please switch to the device settings page to set up the location. Press the Menu and select “Map View” to show the map.
  • Page 19: Understanding The Breathing Led Light

    Understanding the breathing LED light The breathing LED light lights up to show the current air quality using specific defined colors for each air quality level. Refer to the table below for a quick description of these lights: Color IAQ Readings Description Green 0 –...
  • Page 20: General Safety Information

    - With anything on top of it or covering it - Inside a closet or drawer Misuse can cause burns, fire, electrocution, and other hazards. Never clean the Air Monitor Pro with the following:  - Water or spray - A feather duster - A vacuum cleaner Do not open the device or make modifications to it as it will void the warranty.
  • Page 21: Taking Care Of Your Device

    Please check the ventilating holes of the device every six months. If there is any dirt, please use a brush to gently remove the dust and keep the vents clear. Frequently Asked Questions(FAQs) For frequently asked questions, please refer to our website (。 - 21 -...
  • Page 22: Specifications

     radio-frequency power: Bluetooth: <20dBm 802.11bgn: <20dBm RS-485  Baud rate: 9600 bps 8-n-1 Protocol: MODBUS RTU Sensors (Note: according to configuration of Air Monitor Pro) Sensor Specification Detection Method Temperature Unit: C; Range: 0 - 80; Semiconductor Resolution: 0.1; Accuracy: ±1.0 Relative Unit:%;...
  • Page 23: Operating Temperature

    PM10 Unit: μg/m ; Range: 0 - 1,000; Laser light scattering Resolution: 1; Accuracy: Relative Accurate Ozone Unit: PPM; Range: 0.2 - 10.00; Electrochemical Resolution: 0.01; Accuracy: Relative Accurate Illumination Unit: Lux; Range: 0 - 10,000; Semiconductor Resolution: 1; Accuracy: Relative Accurate Operating Temperature 0°C~45°C ...
  • Page 24: Fcc Warning Statement

    FCC Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
