hörbert – automatic shutdown – installation manual
Dear customer,
this additional piece of electronics switches off your hörbert after a selectable time. In addition, it offers
adjustable protection for your batteries. With some manual skill you can carry out the conversion yourself. To
do this, please follow the steps listed here carefully and make sure not to damage any surrounding parts of
your hörbert.
Your work surface should be soft enough not to scratch hörbert; and thick enough so that you do not damage
your table during the conversion. Please provide sufficient light to facilitate your work.
If you have any questions or problems, our service team will be happy to help you:
Use the contact form at www.hoerbert.com/service
By email:
service@winzki.de
By phone: +49 (0)7022 506420
Video Tutorial
https://www.hoerbert.com/videos
•
Please take 2 minutes to give us your feedback regarding the automatic shutdown:
Here you will find the online questionnaire. Thank you for your support!
https://www.hoerbert.com/shutdown-questionnaire
The conversion consists of 2 parts:
1. removal of the existing on/off switch
2. installation of the automatic switch-off module instead of the previous switch
You'll need the following tools:
1x coin
1x cord
1x nut or wrench SW14
1x tweezers, preferably with bent tip
1x scratch protection (supplied)
1x conversion electronics (supplied)
Removal of the existing on/off switch:
1.

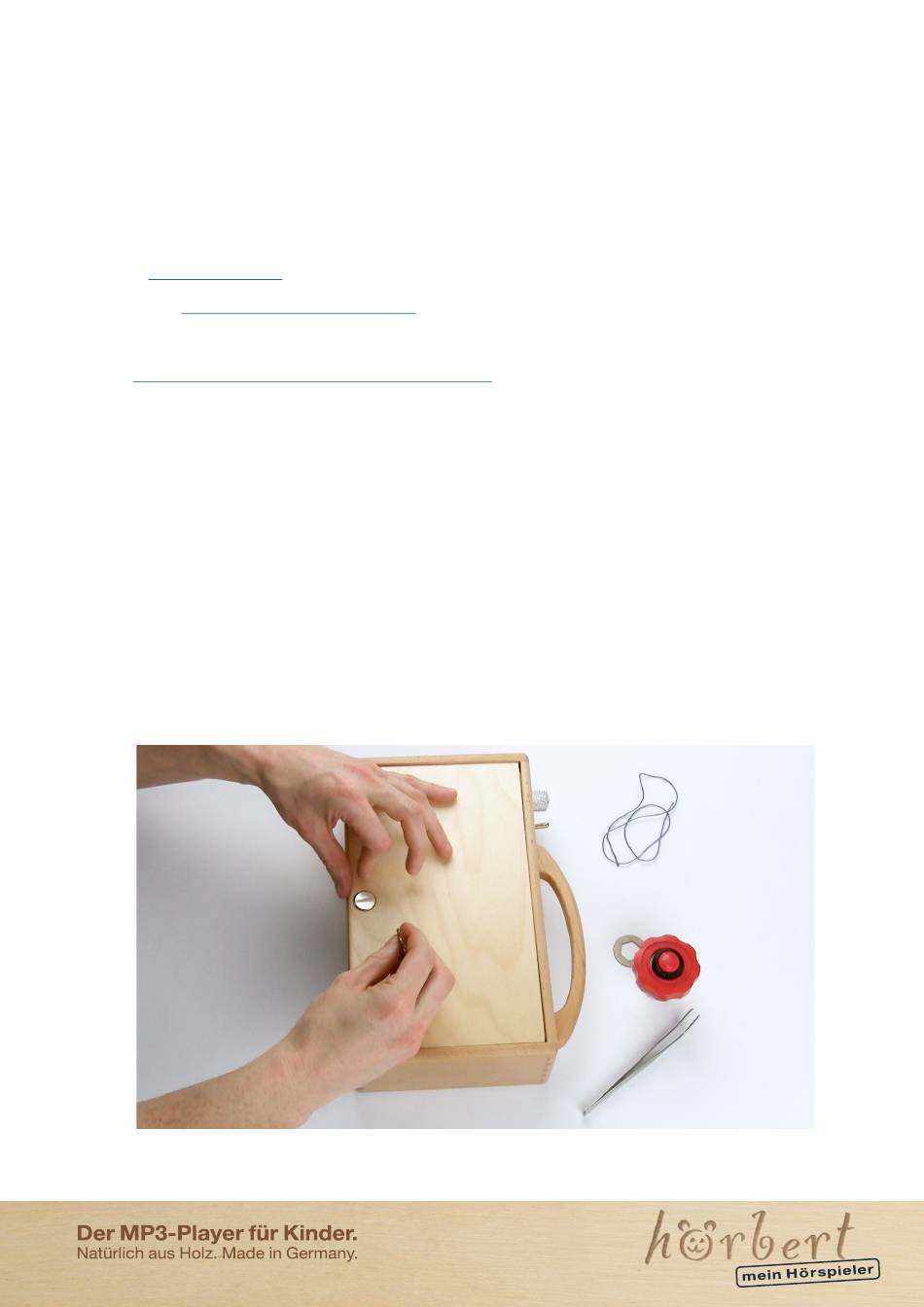

Open the sliding cover and put it aside. To loosen the screw, you can use a coin
Turn the coin counterclockwise to open the screw.
Page 1/7
09.02.18 16:00:00
Advertisement
Table of Contents
Related Manuals for WINZKI Hörbert
Summary of Contents for WINZKI Hörbert
- Page 1 Please provide sufficient light to facilitate your work. If you have any questions or problems, our service team will be happy to help you: Use the contact form at www.hoerbert.com/service By email: service@winzki.de By phone: +49 (0)7022 506420 Video Tutorial https://www.hoerbert.com/videos •...
- Page 2 hörbert – automatic shutdown – installation manual Page 2/7 Remove all batteries so that you do not accidentally damage your hörbert by a short circuit (through a tool or jewellery). Use the thread that you carry out under a battery to pull it out. Repeat this for each battery individually. Insert the cardboard disc over the existing nut of the switch.
- Page 3 hörbert – automatic shutdown – installation manual Page 3/7 The switch can now be pulled out inwards. Turning it 90 degrees makes it easier to get past hörbert's electronics. Pull the red cable of the switch out of the audio electronics. It offers some resistance until the plug clicks out.
- Page 4 hörbert – automatic shutdown – installation manual Page 4/7 Now unplug the blue and white cable of the built-in volume control from hörbert’s electronics in the same way. Leave the volume control screwed into the cabinet. Installation of automatic switch-off The additional electronics for automatic shutdown are plugged in instead of the cables you just unplugged.
- Page 5 hörbert – automatic shutdown – installation manual Page 5/7 Insert the red-and-white cable of the automatic shutdown module into the socket where the on/off switch was previously inserted. It is also visible from above and can be easily hit with tweezers. Finally, plug the remaining blue and white cable of the volume control into the free socket of the additional electronics.
- Page 6 hörbert – automatic shutdown – installation manual Page 6/7 10. In the next step, guide the switch of the additional electronics back through the opening in the housing. The small white switches (the "mouse piano") point upwards, so that you can use it later comfortably. 11.
- Page 7 You can return used hörberts to: WINZKI GmbH & Co. KG, Benzstr. 2, 72636 Frickenhausen, Germany This option is limited to old devices which we sell or have sold in our range, and to the quantity which end users generally dispose of. ...
