DESCRIPTION
Aluminium Structure
Powder coated
CONFORM
International regulation
The assembly time for tennis umpire chair is estimated at 60 minutes with 1 people.
The equipment has to be regularly maintained by the owner. It is recommended to:
- Check every week that all the bolts are correctly tightened
- Fix paint defects if the unit has been damaged, using the adapted paint specified by the
manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labour guarantee. Every claim regarding the condition of the delivered equipment
has to be done within the warranty period following receipt of the product.
The warranty will not apply to:
-
Any degradation during transport.
-
Any degradation due to poor maintenance.
-
Any degradation due to use differing from which the product was intended.
-
Any defect claimed after the end of the warranty period.
-
Any damage due to a faulty installation or assembly of the product.
Assembly INSTRUCTIONS

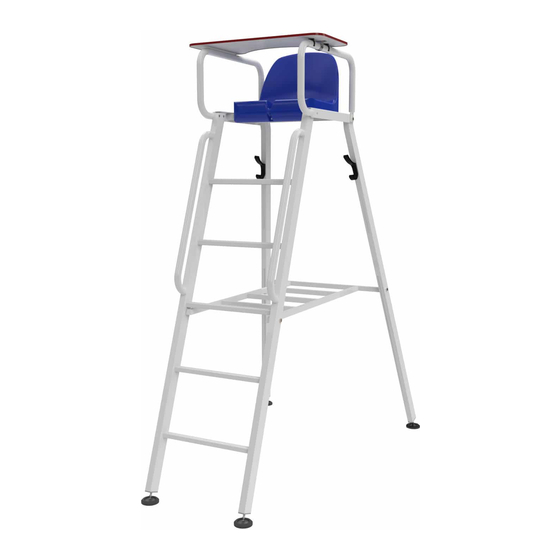

TENNIS UMPIRE CHAIR
PRODUCT REF
ASSEMBLY TIME
MAINTENANCE
WARRANTY
S25332
:
UNIT
Advertisement
Table of Contents
Summary of Contents for Sodex Sport S25332
- Page 1 ASSEMBLY INSTRUCTIONS TENNIS UMPIRE CHAIR S25332 UNIT PRODUCT REF DESCRIPTION Aluminium Structure Powder coated CONFORM International regulation ASSEMBLY TIME The assembly time for tennis umpire chair is estimated at 60 minutes with 1 people. MAINTENANCE The equipment has to be regularly maintained by the owner. It is recommended to:...
- Page 2 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Screwdriver Wrench 17mm INCLUDED ITEMS 1- ASSEMBLY OF THE FEET TO THE HORIZONTAL FRAME AND TO THE SEAT SUPPORT Part-thread SS screws M10x55 + SS Washers 10 + SS locknut M10 Part-thread SS screws M10x50 + SS Washers 10 PVC swivel feet M10 + Rubber protection...
- Page 3 ASSEMBLY 2– ASSEMBLY OF THE LADDER Part-thread SS screws M10x55 + SS Washers 10 + SS locknuts M10 Part-thread SS screws M10x50 + SS Washers 10 PVC swivel feet M10 + Rubber protection NECESSARY ITEMS...
- Page 4 ASSEMBLY 3– SEAT FIXATION SS Screws M10x50 + SS Washers 10 + SS Lock nut M10 NECESSARY ITEMS 4– ASSEMBLY OF THE DESK It’s possible to choose the orientation of the desk, so we can place either the red side upwards or the white side. If you want to place the red side upwards, fix the PVC hook on the other side (white)n using the self-tapping screws, respecting the dimensions above.
- Page 5 ASSEMBLY 5 – ASSEMBLY OF THE FIXING LUG Screws M5x15 NECESSARY ITEMS...
- Page 6 PACKING LIST TENNIS UMPIRE CHAIR PRODUCT REF S25332 Index E UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing method N° (kg) (mm) S25332-01 Ladder S25332-02 Seat support S25332-03 Rear feet Plastic bubbles + 2020x560x210 cardboard 5 layers S25332-04a...
- Page 7 PACKING LIST TENNIS UMPIRE CHAIR PRODUCT REF S25332 Index E UNIT PRE-ASSEMBLED ACCESSORIES Package Designation Description Note N° Assembly the S76640 Reinforced coat peg reinforced coat peg to the back frame NNHOM3060 Alu cap 30x60 Assembly to the chair Assembly the...
