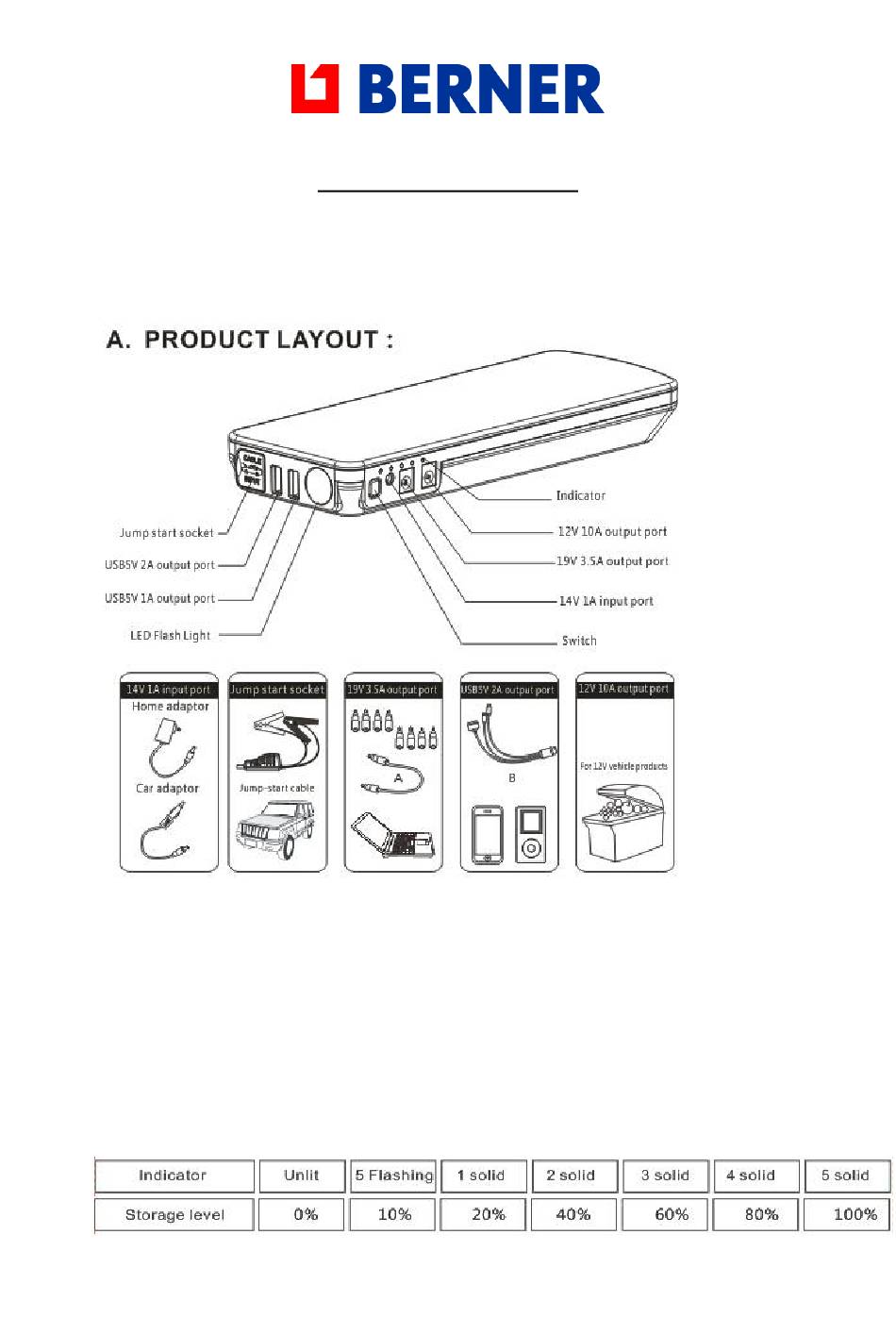

242639 Mini Booster 600 A USER MANUAL Thank you for choosing the E-Power! Always follow basic safety precautions when using electrical appliances. Read all instructions carefully, Please keep this instruction manual for easy reference. B. OPERATION GUIDANCE Indicator Press the switch to check the storage level of the Booster...
Page 2
The indicator will flash one by one during the period of charging. Different number of solid indicators show different storage level of the Booster. All indicators light up when the charging is paused or completed. the Booster Charging Instruction: 1. Plug the home adaptor into the universal socket. 2.
Page 3
RED LIGHT on with buzzing: Telling the connection is wrong, and buzzing to alarm to correct the clamps as step 2 mentioned above, wait until the GREEN LIGHT is on to turn on the engine. GREEN LIGHT blinking with buzzing: Saying the vehicle battery is low, press the “BOOST” button, wait GREEN LIGHT becomes solid, then turn on the engine within 30s.
Page 4
For power supply to 12V vehicle products or 12V electronics 1. Plug the optional switch cable to 12V 10A output port. 2. Connect the optional switch cable and 12V vehicle product or 12V electronics. 3. Press the switch button to power supply. LED flash light Press the switch 3 seconds to start the LED flash light.
Page 5
Q. How long will this appliance take to charge my cell phone full? A. Approx. 1 hour Q. How long will this appliance on a full charge take to supply the Notebook? A. 4-6 hours Q. How many times can this appliance jump start the vehicle if it is in full battery? A.
4. DO NOT disassemble the host. Otherwise, it may be dangerous! IMPORTANT! Never use the Jump Starter for more than 5 seconds. After 5 seconds of boost wait until the cables cooled down. The warranty does not cover the jump starter Cables. I OVER DISCHARGE: Cause: a.
Page 7
original purchaser with the product to be repaired or replaced 3.The warranty is void if the serial number, date of purchase and label has been removed 4.The warranty does not cover damage or product failure resulting from normal wear and tear, physical abuse, improper installation, misuse, modification or repairs by unauthorized third parties 5.We do not assume responsibility for any loss or damage incurred during shipment or as a result...
Page 8
USER MANUAL - OBDII DATA SAVER CABLE FOR 600A BOOSTER 1) Check that the device is fully charged (5 indicator lights) 2) Plug the cable into the 12V port of the booster. DO NOT plug it into the 19V port.
Page 9
WARNING Always take care when using the cable This cable is not intended for use by young or infirm persons without supervision Do not use as a toy Do not allow the cable to become wet Do not immerse the cable in water Do not operate the cable in explosive atmospheres, such as in the presence of flammable liquids, gases or dust Do not modify or disassemble cable.
Page 10
Produced for Berner Trading Holding GmbH - Bernerstr. 6 D-74653 Künzelsau - T +49 (0) 7940 121-0 - www.berner.eu...
