Before you start
Ensure the following core elements of the system have been fitted in
accordance with the supplied installation guides:
• Compass
• Rudder Reference
• SmartPilot Computer ( S3)
• SmartPilot Controller ( ST7002)
• Drive Unit

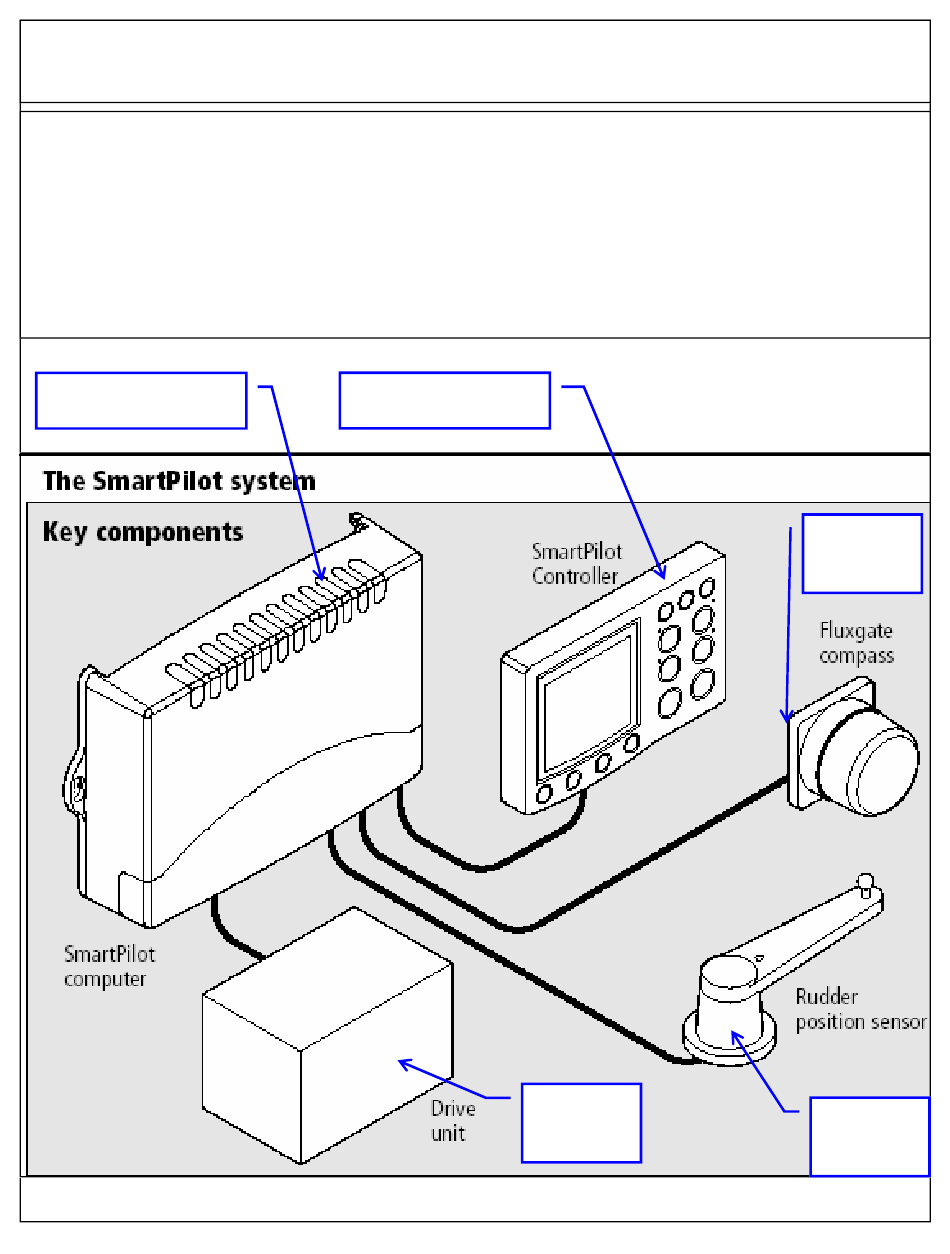

The core system will be connected like this following diagram
Locates starboard salon bunk
backrest.
45DS Electrical Stage
Course Computer Wiring
Locates cockpit port side
NAV pod starboard side
Page 1 of 7
Locates in
starboard side
transom locker
Locates in fwd
bunk aft in-
board corner
Locates rudder
shelf, inside
transom locker
Advertisement
Summary of Contents for MARLOW-HUNTER 45DS
- Page 1 45DS Electrical Stage Course Computer Wiring Before you start Ensure the following core elements of the system have been fitted in accordance with the supplied installation guides: • Compass • Rudder Reference • SmartPilot Computer ( S3) • SmartPilot Controller ( ST7002) •...
- Page 2 45DS Electrical Stage Course Computer Wiring (2-14-08) 1. Course computer unit was mounted on panel that behind the bunk rest. 2. Install the computer the power supply, gain the 12V power from DC junction box, find autopilot terminal stud that comes on the junction panel.
- Page 3 45DS Electrical Stage Autopilot System Installation Not Use Course computer S- 3 all connector ter- minals Not Use Removing and replacing the connector cover Page 3 of 7...
- Page 4 45DS Electrical Stage Autopilot System Installation 1. Strip 8–10 mm (½ in) of insulation from the end of each cable. For the POWER connection, attach the suppression ferrite (supplied) around both the positive and negative power cables, between the cable clamp and SmartPilot computer.
- Page 5 45DS Electrical Stage Autopilot Course Computer Installation With ST-60 Connect Sea talk wire from DC junction breaker yellow wire to sea talk out terminal, then black wire to sea talk white color termi- nal. And bridge red wires of GPS & Sea Talk...
- Page 6 45DS Electrical Stage Autopilot Pedestal Display Installation (ST-60 & E120) Sea– Talk Loop: 1. Install speed, depth and wind transducer wires on ST-60 displays. 2. Connect sea-talk cable that has been ran from electrical panel to autopilot controller. 3. Use sea-talk cable to bridge controller and knot display.
- Page 7 45DS Electrical Stage Autopilot Pedestal Display Installation (ST-60 & E120) ST-60 Wind ST-60 Depth ST-60 Knot Starboard side of sea hood ST-60 tridata re- peater Bow thruster in middle of pod Autopilot on this side Cockpit port helm station NAV pod...
