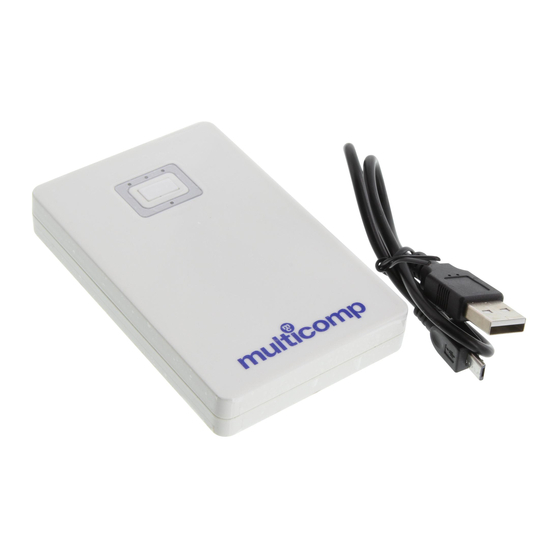

Universal Power Bank
Specifications
Capacity
Battery
Charging Time
Dimensions
Weight
Charging time is based on 1A charging current, reference only
USB Port
No. of Port
Input Port
Output Port
Power / Capacity Indicator
Charging Mode
Constant Current & Constant Voltage (CC/CV)
Over Charge Detection Voltage
Charging Current
Over Discharge Detection Voltage : 2.3V ±0.0575V
Over Current Protection
Short Circuit Protection
www.element14.com
www.farnell.com
www.newark.com
Features
• Powerful and High Efficiency Battery Cells with Protection Board
• Smart Power Management Controller with Power Conversion Efficiency more than 88%
• Double Protection Design - Over Discharge, Over Current and Short Circuit Protection
• Intelligent Display of LED to Indicate the Charging Status & Power Levels
• Ideal for most digital devices with DC5V input such as iPad, iPhone, Smart Phone, MP3,
MP4, Tablet PC and GPS
• Automatically Detect the Current Required by the Devices
• Certified by CE and FCC Safety Requirement
: 5200mAh
: Li-Polymer
: 6 ~ 7 Hours
: 102mm x 66mm x 15.8mm
: 154g
: 2 Port
: Micro USB - 5V DC / 1A
: USB - 5V DC / 2.1A Max. (Each Port)
: 4.325V ±0.025V
: 0.5C rate (2500mA)
: 5.5A – 9A
: Lock
Page <1>
23/01/19
V1.0
Advertisement
Table of Contents
Related Manuals for multicomp MC011332
Summary of Contents for multicomp MC011332
- Page 1 Universal Power Bank Features • Powerful and High Efficiency Battery Cells with Protection Board • Smart Power Management Controller with Power Conversion Efficiency more than 88% • Double Protection Design - Over Discharge, Over Current and Short Circuit Protection • Intelligent Display of LED to Indicate the Charging Status & Power Levels •...
- Page 2 Universal Power Bank Required Environment Operating Temperature : 0°C - 35°C Operating Relative : 5% ~ 95% RH Storage Temperature : -10°C to 60°C Accessories Micro USB Charging Cable - 1PC Operation Instruction # How to Recharge Power Bank • Use power sources with DC 5V over 500mA. The power sources can be USB port of computer, AC/DC USB adapter and power adaptor with micro USB connector •...
- Page 3 Universal Power Bank Instruction of LED Lights - Charge and Discharge When Power Bank is connected to power supply (MICRO USB input DC5V), three LED will flash by turns and then flashes according to the power remaining. Sign: ● Off / Flashing Light / Solid Light ●...
- Page 4 Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp is the registered trademark of the Group. © Premier Farnell Limited 2016.
