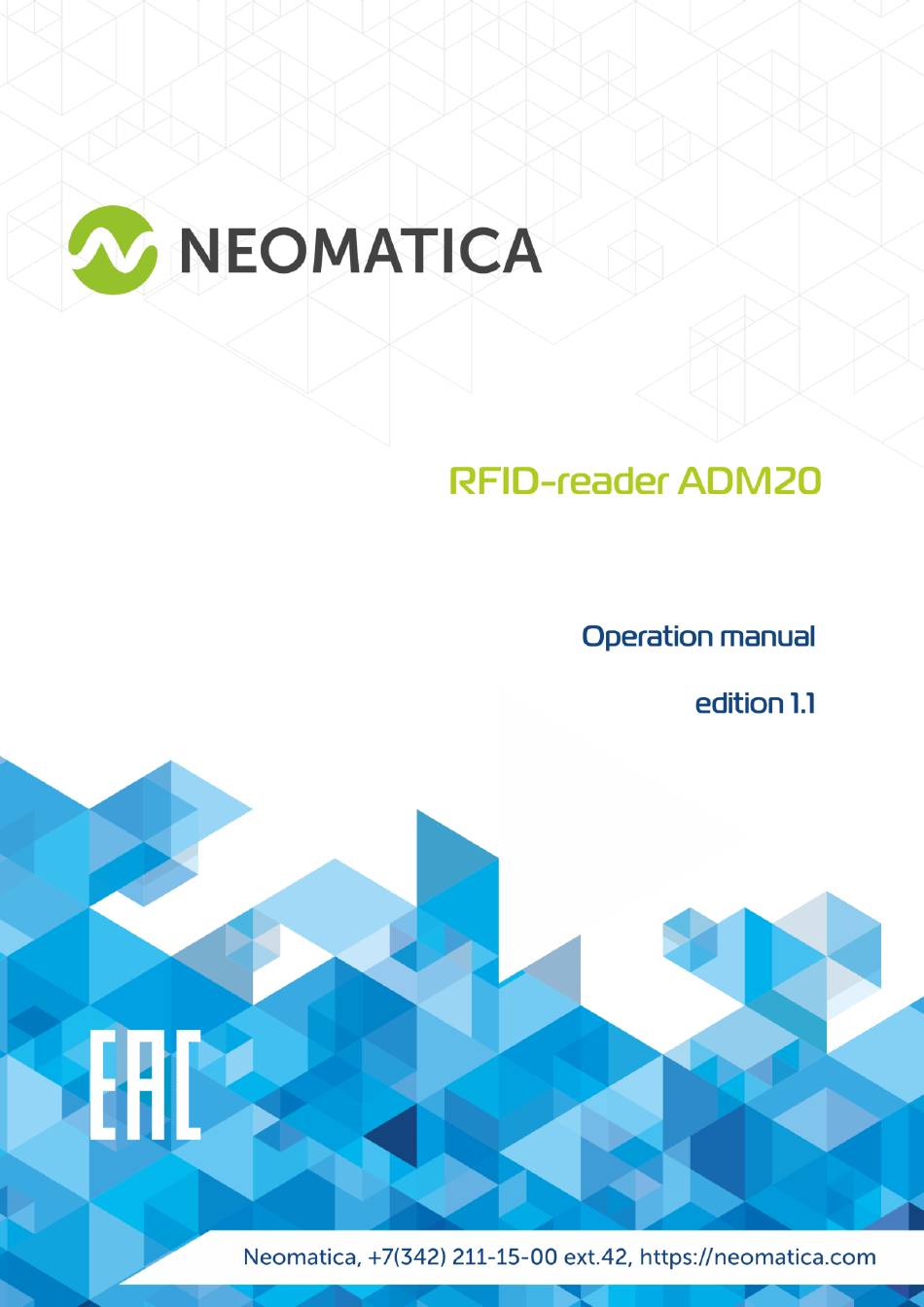

Summary of Contents for Neomatica ADM20
- Page 2 This Operation Manual relates to the compound receiver-transmitter ADM20 (hereinafter referred as RFID-reader, reader) and defines installation and connection procedure, as well as describes the device function. The Operation Manual is designed for professionals familiarized with the rules of repair and installation works execution related to vehicles and having special knowledge in electronics and electrical equipment of various vehicles.
-
Page 3: Table Of Contents
5.4.1 Step by step setting with comments ................8 5.4.2 Examples for quick setting ................... 9 6. Using the RFID-reader ADM20 together with trackers of other manufacturers ....9 7 Reader's software upgrade ...................... 10 7.1 Reader's software upgrade with the firmware file ............10 8. -
Page 4: Application And Operation Principles
1. Application and Operation principles RFID-reader ADM20 (see the picture 1) is used for installation on moving and stationary objects and identification of objects by means of radiosignals as well as attendance recording. It might be used within close and remote identification subsystems. -
Page 5: Technical Features
3. System design and operation based on RFID -reader ADM20 During its work the telematic terminal interrogates the RFID-reader ADM20. If there are active tags ADM21 within its range, the reader transmits their identification numbers to the terminal. At the same time, RFID-cards applicated to the reader are being read in the range of 13,56 MHz and 125 kHz. -
Page 6: Installation And Setting Procedure
4. Installation and setting procedure 4.1 RFID-reader ADM21 installation RFID-reader ADM20 is mounted on an object with two screws with a pressure-pad of diameter 4.2 mm and length of at least 25 mm. For fixation it is necessary to remove the reader's hopper 1 (see the picture 3), tighten the screws in the holes 2 (see the picture 3), put the hopper in its place again. -
Page 7: Using The Rfid-Reader Adm20 Together With The Аdm100/Adm300/Adm700 Trackers
AdmConfigurator's graphical interface whose version is not below 2.1. 5.1 Operation modes description The RFID-reader ADM20 might be set for working in the following modes: Mode 0 - “RFID card periodic check”, Mode 1 - “Guaranteed RFID card sending” and Mode 2 - “Radiotags ADM21”. -
Page 8: Mode 2: "Radiotags Adm21
X – for the indicated reader. When it is necessary to set several operation modes or RFID-readers ADM20, send the command as many times as needed indicating the reader's number and mode, which should be set. -
Page 9: Installation Of The Terminal's Discrete Output When Detecting The Card
5.3.1 Installation of the terminal's discrete output when detecting the card The terminal's discrete output state when there is no card in the reader ADM20 as well as its state when the card is detected, are installed by the «ADM20OUTMODE» command. -
Page 10: Examples For Quick Setting
6. Using the RFID-reader ADM20 together with trackers of other manufacturers ADM20 may be utilized as a periphery device with other GPS trackers. To be compatible with ADM20, a tracker should be equipped with RS-485 digital interface and support LLS exchange protocol. -
Page 11: Reader's Software Upgrade
• launch the “RFIDConfigurator” program on personal computer; • in the “ADM20 Setting” section the “RFID Configurator” program will display the new • software version; if this new version is newer than the one installed on the reader, press the button •... -
Page 12: Storage And Transportation Requirements
Agreement provided site http://neomatica.ru/upload/files/license.pdf 10. Marking and packaging Marking is placed on the device case. The devices are packed in individual boxes, which protect them during transporation and storage. Multipack is possible. Neomatica LLC. RFID-reader ADM20. Ed. .1.1 dd 15.08.2019... -
Page 13: Disposal
11. Disposal Device recycling is performed according to national and local norms and requirements. 12. Scope of supply Item name Quantity Note Reader ADM20 Tag ADM21 Card 125kHz Card 13,56MHz Operation Manual Neomatica LLC. RFID-reader ADM20. Ed. .1.1 dd 15.08.2019...
