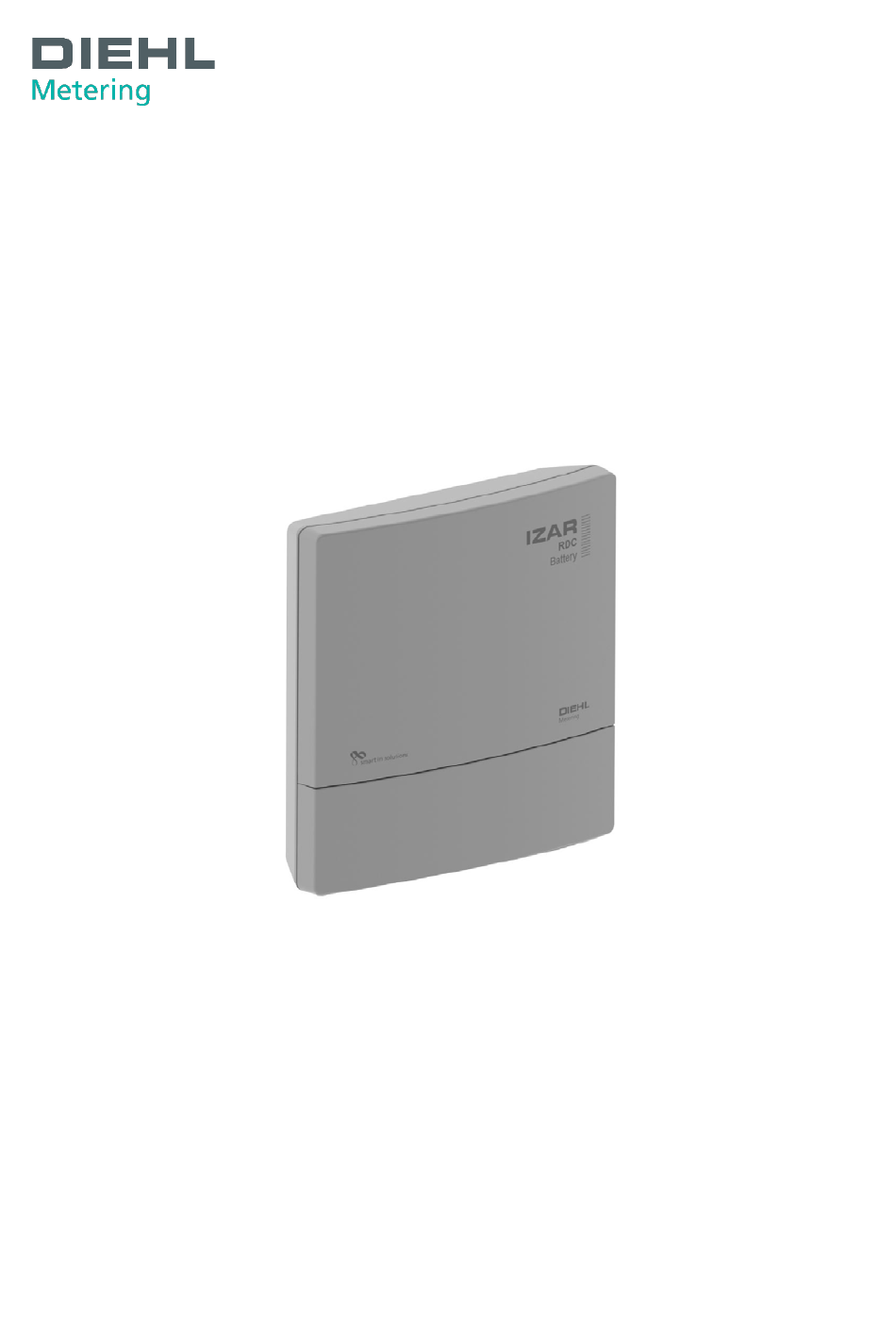

- Page 1 IZAR RDC BATTERY User guide...
-
Page 2: Table Of Contents
IZAR RDC Battery Table of contents 1 Product description ........................ 3 Brief description ......................... 3 Product overview ....................... 3 Package contents ....................... 4 2 Product characteristics ......................5 Technical data ........................5 Dimensions ........................5 3 Concentrator Installation ......................6 Usage precautions ...................... -
Page 3: Product Description
• difficult to reach meters. IZAR RDC BATTERY allows to read out smart radio metering with cyclic interval or time point fully configurable. Meter information is stored and send to a FTP/SFTP server. One data emission sequence is defined with different operations: Check of the date/time of the system (Server NTP) •... -
Page 4: Package Contents
IZAR RDC Battery 1.3 PACKAGE CONTENTS IZAR RDC BATTERY is delivered in individual packaging and comprises the following elements: Housing with electronic card Battery pack and connector Cover Protective cover for antenna connectors Torx key Cover fixing screws Retaining screws of the case’s cover... -
Page 5: Product Characteristics
IZAR RDC Battery 2 PRODUCT CHARACTERISTICS 2.1 TECHNICAL DATA Technical data 868.95 MHz (T1/C1 mode) or Frequency 434.475 MHz (T1 mode only) Communication protocols wM-Bus (EN13757-3/-4) / PRIOS / OMS Conditions of use Operating temperatures -20 ... +70 °C Storage temperatures -20 …... -
Page 6: Concentrator Installation
3 CONCENTRATOR INSTALLATION 3.1 USAGE PRECAUTIONS IZAR RDC BATTERY must be installed and put into operation by qualified staff. This also applies to maintenance work during the life of the product. Failure to follow these instructions can lead to serious health hazards or the risk of electrocution. -
Page 7: Connecting The Battery Pack
The battery has a lifespan of up to 10 years depending on the setting. The battery pack is replaceable on site (refer to chapter “battery pack replacement”). Only use the Diehl Metering referenced battery pack! 3.4 COVER INSTALLATION Close and screw the cover on the box once the SIM card (and in option the SD card) securely locked in place and the battery pack is connected. -
Page 8: Connecting The Inputs/Outputs
IZAR RDC Battery 3.5 CONNECTING THE INPUTS/OUTPUTS Connectors Type Functions Antenna #1 IZAR radio reception RF 2 Antenna #2 IZAR radio reception SUPPLY 12/24V External power supply 6…36V DC Not used Transmitting antenna via the mobile phone network 08/2019... -
Page 9: Connecting The External Power Supply (Optional)
3.7 “DATA LOGGER RADIO” MODE (OPTIONAL) IZAR RDC BATTERY can also be used in “Data logger radio” mode. This mode makes it possible to read one or more meters with a very fine time step to analyse consumption profile data for instance, or leak detection. -
Page 10: Wall Mounting And Screw Fixing
A drilling template is provided with the installation guide to facilitate positioning and installation on the wall. 4 CONFIGURATION / STARTING UP IZAR RDC BATTERY must be programmed on-site via a Bluetooth or Bluetooth Low Energy interface using the IZAR@RDCBV Config software. Please refer to the IZAR@RDCBV Config software user guide. -
Page 11: Maintenance
IZAR RDC Battery 6 MAINTENANCE IZAR RDC BATTERY requires no specific maintenance. Do not clean it with solvents or abrasive cleaners, as these would damage the plastic shell. If necessary, use a damp cloth or sponge. Storage: The product should be stored in a dry place at temperatures between: - 20°C … + 70°C. -
Page 12: Troubleshooting
IZAR RDC Battery 7 TROUBLESHOOTING 7.1 LED INFORMATION IZAR RDC BATTERY is equipped with several LEDs inside the housing accessible only by opening it. SPP is not detectable or LED 1 SPP is detectable SPP connection running LED 2 Modem active... -
Page 13: Regulations
DIEHL Metering (“DIEHL Metering” in this context refers to the DIEHL Metering entity that offers respective software for download or being responsible for distribution of products that contain respective code) is eager to comply with all requirements set by various free or open source software licenses. - Page 14 IZAR RDC Battery Component: Fatfs Version: R0.11a Source: http://www.elm-chan.org/fsw/ff/archives.html Archive: ff11a.zip Copyright: ChaN, 2015 License type: BSD 1-Clause like SPDX identifier: License text: Copyright (C) 2015, ChaN, all right reserved. 1. Redistributions of source code must retain the above copyright notice, this condition and the following disclaimer.
- Page 15 IZAR RDC Battery Component: lwIP Version: 1.4.0 Source: http://download.savannah.nongnu.org/releases/lwip Archive: lwip-1.4.0.zip Copyright: Swedish Institute of Computer Science, 2001, 2002 License type: BSD 3-Clause SPDX identifier: BSD-3-Clause License text: Copyright (c) 2001, 2002 Swedish Institute of Computer Science. All rights reserved.
- Page 16 IZAR RDC Battery Component: LTC3350 SDK Version: 2016-01-08 Source: https://www.analog.com/en/products/ltc3350.html#code Archive: LTC3350_SDK.zip Copyright: Linear Technology Corp. (LTC), 2016 License type: BSD 2-Clause SPDX identifier: BSD-2-Clause License text: Copyright (c) 2016, Linear Technology Corp.(LTC) All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1.
- Page 17 IZAR RDC Battery Component: STM32CubeL4 SDK Version: 1.7.1 Source: https://www.st.com/en/embedded-software/stm32cubel4.html Archive: en.stm32cubel4.zip Copyright: STMicroelectronics Inc., 2018 License type: SLA0048 SPDX identifier: License text: BY INSTALLING COPYING, DOWNLOADING, ACCESSING OR OTHERWISE USING THIS SOFTWARE PACKAGE PART THEREOF (AND RELATED DOCUMENTATION) FROM STMICROELECTRONICS INTERNATIONAL N.V, SWISS BRANCH AND/OR ITS AFFILIATED...
- Page 18 IZAR RDC Battery 8. STMicroelectronics has no obligation to provide any maintenance, support or updates for the software package. 9. The software package is and will remain the exclusive property of STMicroelectronics and its licensors. The recipient will not take any action that jeopardizes STMicroelectronics and its licensors' proprietary rights or acquire any rights in the software package, except the limited rights specified hereunder.
- Page 19 IZAR RDC Battery Component: uSSH SDK Version: 3.59A Source: closed source Archive: Copyright: Cypherbridge Systems LLC. License type: SPDX identifier: License text: Copyright (c) 2009-2017 Cypherbridge Systems, LLC. www.cypherbridge.com Portions of this work may be based on third party contributions. Cypherbridge Systems LLC reserves copyrights to this work whose license terms are defined under a separate Software License Agreement (SLA).
- Page 20 Diehl Metering S.A.S. 67 rue du Rhône 68300 Saint-Louis Phone: +33 (0)3 89 69 54 00 Fax: +33 (0)3 89 69 72 20 E-Mail: info-dmfr@diehl.com www.diehl.com/metering...
