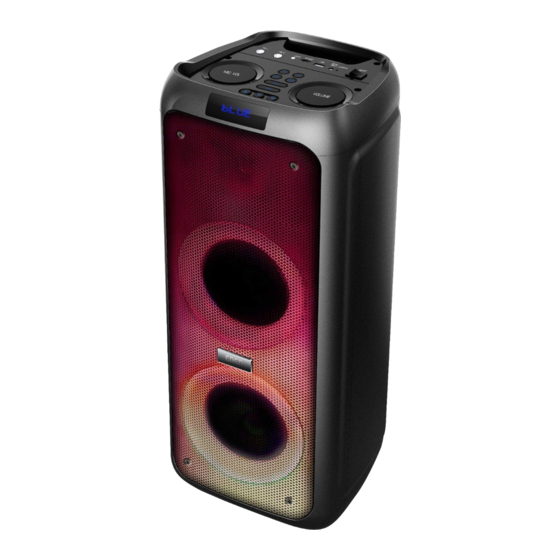

Model#:ED-505
Portable Speaker
USER GUIDE
____________________________________________
BASS
BOOM
POWER
COLORS
LIGHTS
INSTRUCTION MANUAL

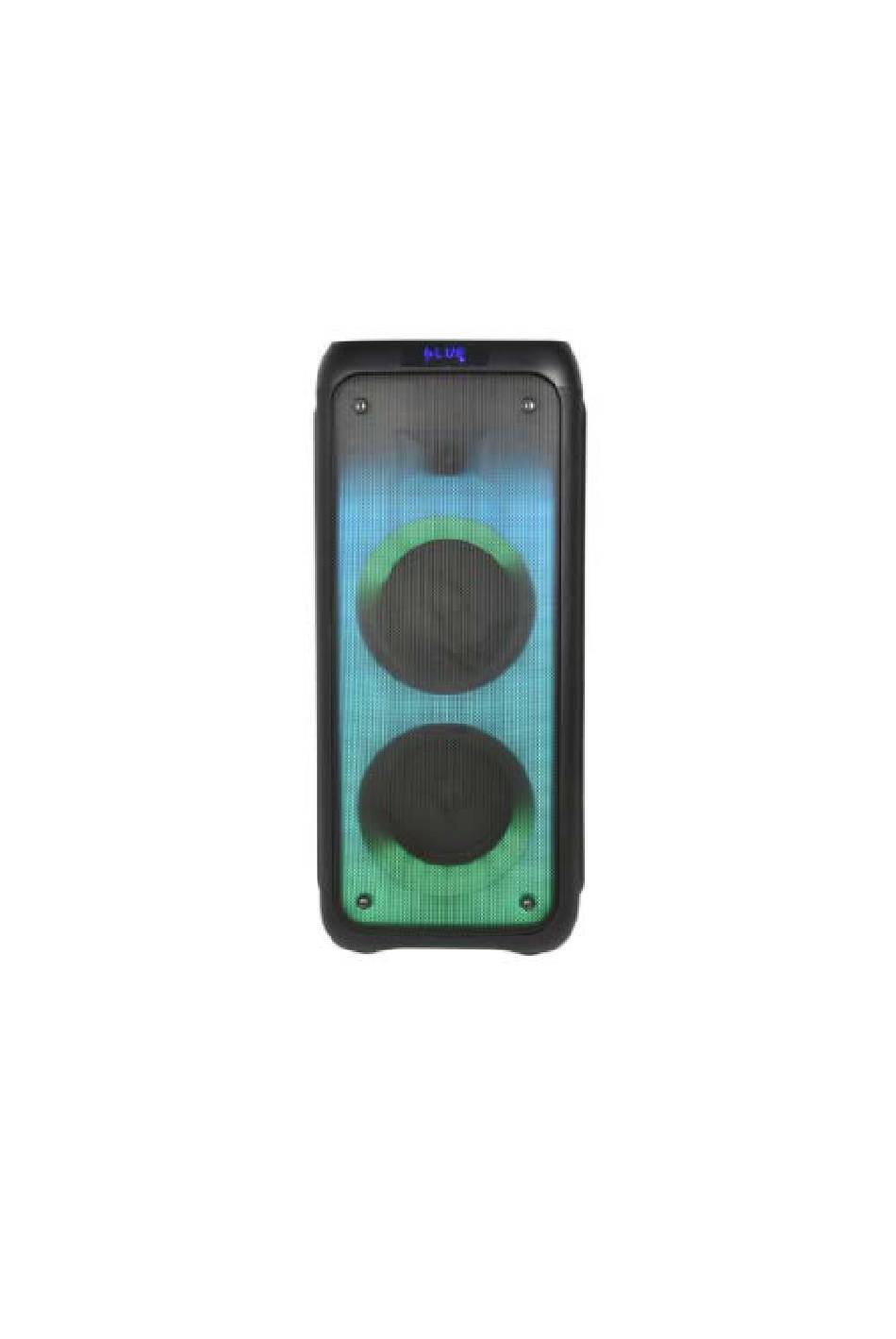

*The picture is only provided for reference. Please refer to actual the unit!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Accessories
Advertisement
Table of Contents
Related Manuals for Eden ED-505
Summary of Contents for Eden ED-505
- Page 1 Model#:ED-505 Portable Speaker USER GUIDE ____________________________________________ BASS BOOM POWER COLORS LIGHTS INSTRUCTION MANUAL *The picture is only provided for reference. Please refer to actual the unit! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 Speaker Unit x1 Instruction Manual Adapter Remote Control Specification: 5.5" +5.5" woofer, 2" tweeter Battery:7.4V/5,400mA Power:32W RMS 3.5mm Aux-in TWS function: Wireless connection, up to 2pcs speakers playing together to enable sound to be double USB/Micro SD Card play; FM Radio, Bluetooth connect Support USB version: USB2.0, USB3.0, up to 64GB storage.
- Page 3 1:Microphone Input 2:Microphone Input 3:Aux-in(3.5mm) 4:TF/Micro SD Card input 5:USB Play back 6:DC 9V input(charging slot) 7:Charging indicator(red-low power/charging, green-full) 8:Power on/off 9:Short press to Record songs from microphone to USB/TF, press again to play recording, long press again to delete recording 10:Microphone priority(when playing USB/TF and press this button, the microphone volume will override songs in USB/TF 11:MODE switch...
- Page 4 17:Short press to play/pause under USB/TF/BT, and press once to scan all stations and store automatically in FM mode. 18: Short press to get next song, long press to fast forward 19:Main Volume. Remote control 1.Mute Available to be mute at any mode. 2.Previous Song Under USB/TF card mode - previous song.
- Page 5 2. Activate the BT features on your cell phone so that the cell phone starts to search for the BT device. Please refer to the users' manual for details 3. Select the correct model No. (ED-505)The device found by the cell phone; 4. Shortly press PLAY/PAUSE button to play or pause music.
- Page 6 1. Turn on these 2 speakers together, press TWS button on top panels of one speaker, speaker display will show 'BLUE' . 2. Turn on your Bluetooth devices, and put these Bluetooth devices near the speaker within 10 meters. 3. Search the pairing name from your Bluetooth devices, and tap to connect (ED-505 )
- Page 7 4. Press TWS button on the other speaker, this speaker display will show 'BLUE' and keep blinking, you will hear 'ding dong' after both speakers connected successfully, and 'BLUE' on display will stop blinking . 5. Now you can play songs from your Bluetooth devices. 6.
