Summary of Contents for Mark Climate ECOFLEX

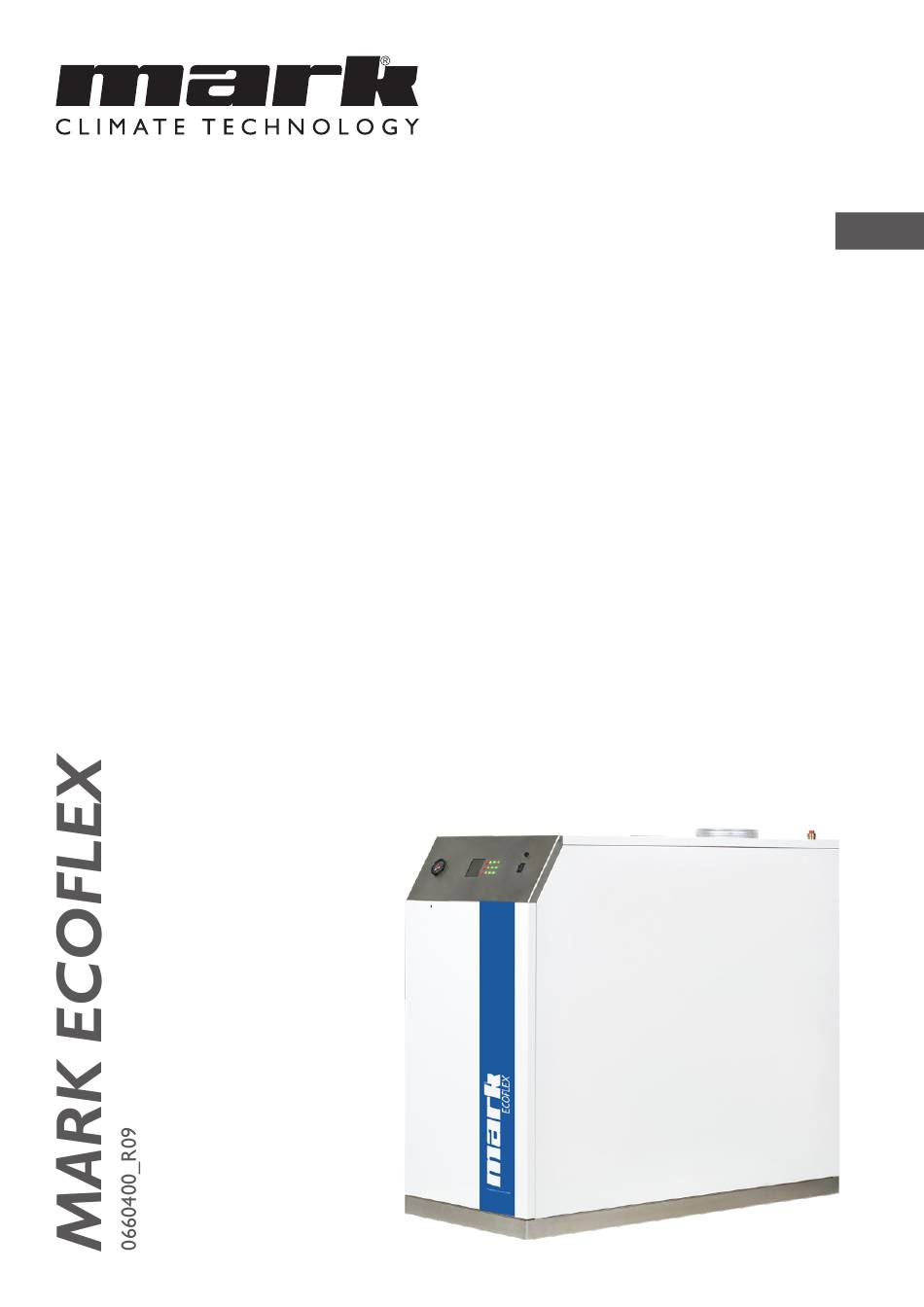

  • Page 1 Technical manual...

  • Page 2: Starting The Boiler

    INSTRUCTIONS FOR USER Warning Incorrect installation, adjustment, alteration, repair or maintenance work may lead to material damage or injury. All work must be carried out by certified, qualified professionals. If the appliance is not positioned in accordance with the instructions, the warranty shall be rendered void. This appliance is not intended for use by children or persons with a physical, sensory or mental handicap, or who lack the required experience or expertise.Children must be supervised to ensure that they do not play with the appliance.

  • Page 3: Switching Off The Boiler

    Switching off the boiler During summer time the room thermostat can be set to a lower value to turn off the boiler. During winter or during a longer periode of absence this temperature never should be set to a lower value than 15 °C.

  • Page 5: Description Boiler

    DESCRIPTION BOILER Terminal strip Venturi Boiler controller (Maxsys) Return Gas valve 10 Return NTC Flow 11 Fill and drain valve Exhaust 12 Water pressure sensor Automatic air vent 13 Air supply...
  • Page 6 14 Syphon 21 Sight glass 15 Syphon pressure switch 22 Ignition and ionization electrode 16 Fluegas NTC 23 Display LCD 17 Inspection cover 24 Manometer 18 Gas pipe 25 Burnerhood 19 Overheat limiter Flow 26 Air pressure switch 20 NTC 27 Sump inspection cover...

  • Page 7: Technical Data

    TECHNICAL DATA 168-5 210-6 252-7 294-8 Central heating Nominal input max load (H Nominal input min load (H 33,6 50,4 58,8 Nominal output max load 80-60 ºC 163,6 204,5 245,4 282,5 Nominal output min load 80-60 ºC 32,6 40,7 48,9 Efficiency max load 80-60 ºC (Hi) 97,4 97,4...

  • Page 8: Component Matrix

    230/50 230/50 230/50 230/50 Maximum power-consumption 1150 1150 1150 1150 Standby power-consumption Fuse Component Matrix Overview of main components used in EcoFlex-series Part 168-5 210-6 252-7 294-8 Boiler control Honeywell Maxsys S4966V2052 S4966V2052 S4966V2052 S4966V2052 Display (user interface) DSP 49G2193...
  • Page 9 INSTALLATION MANUAL DEJATECH FLOORFLEX DIMENSIONS DIMENSIONS 11/74 DEJATECH tel. + 31 77 475 2270 Revision 10 subject to changes without prior notice printdatum 15-08-19...

  • Page 10: Operation

    OPERATION General The EcoFlex is a floor standing boiler, equipped with a cast aluminium heat-exchanger. During heat demand the controller activates the pump. The controller checks the air pressure switch (zero check) and increases the fan speed to perform an airflow-check. Once the air pressure switch closes the fan speed increases to ignition speed and a 30 second pre-purge is performed.
  • Page 11 4.2.2.2 0-10Vdc Setpoint A value between 2 and 10Vdc generates a CH setpoint demand proportional to this value between CH minimum flow temperature and maximum CH flow temperature. The heat demand is removed when the control signal falls below 1 volt. The minimum and maximum CH flow temperature can be set in the technician menu, advanced CH settings, CH temperatures.
  • Page 12 4.2.4 Optional digital communication The boiler supports digital communication with room thermostats using Open-Therm communication protocols (automatically recognised if connected to pins 1 + 2 on terminal strip C2, also see 4.2.1). 4.2.5 Slow start The boiler uses a “slow start” procedure to prevent the boiler from supplying excessive power in low load situations.
  • Page 13 Domestic Hot Water preparation (DHW) 4.3.1 External storage tank with thermostat (electric 3-way valve) As standard the DHW configuration is factory pre-set for an external storage tank + tank thermostat. For hydraulic connection of an external storage tank to the boiler via an electric 3-way valve one should either use: - the default configuration 2 pumps: 230 VAC DHW pump (terminal strip C1: 6,7,8) and CH pump (ter- minal strip C1: 9,10,11)
  • Page 14 Cascade For cascade application see document 0660460 Appendix B: Cascade...

  • Page 15: Control Panel

    BOILER CONTROL BOILER CONTROL BOILER CONTROL 5.1 Control Panel 5.1 Control Panel Control Panel The control panel has 12 buttons and a display as shown in the figure below. The control panel has 12 buttons and a display as shown in the figure below. The control panel has 12 buttons and a display as shown in the figure below.

  • Page 16: Parameter/Value Setting

    5.3 User menu User menu By pressing the “menu-button” the display will show the text as given in the figure below. By pressing the “menu-button” the display will show the text as given in the figure below. By pressing the button right to “3” (R1-C1 see 5.2) the user menu is accessed. Pressing the button right to “5”...

  • Page 17: Parameters Accessible By User

    The actual value can be changed by pressing the R1-C1 and R2-C1 buttons. The changed value can be confirmed by pressing the ok (R2-C2) button The actual value can be changed by pressing the R1-C1 and R2-C1 buttons. Pressing the back (R3-C1) button leaves the actual displayed parameter. The changed value can be confirmed by pressing the ok (R2-C2) button.

  • Page 20: Installer (Technician) Menu

    5.4 Installer (technician) menu 5.4 Installer (technician) menu If the button (R2-C1) right to “4” (see figure above is) is pressed the screen as given in If the button (R2-C1) right to “4” (see figure above is) is pressed the screen as given in the figure below the figure below will appear.
  • Page 21 By pressing up and down (R1-C2 and R3-C2) 1 of the 6 options as shown above will be highlighted. By pressing the ok button (R2-C2) the chosen option will be confirmed. Once an option has been chosen it is possible to change the parameters corresponding with the chosen option.

  • Page 27: Holiday Mode

    Manual Chimney sweep mode For routine maintenance and/or service intervention a CH request can be generated to force the burner to a specific load from minimum to nominal (0-100%). This is only possible if no error condition is present. The chimney sweep function can be started from the user menu and will be active for 15 minutes.
  • Page 28 Technician menu ----> 3 system settings ----> 1 boiler parameters ----> 1 ignition power The setting of 20 % must not be changed If instructions as written above are not followed Mark Climate Technology cannot be held responsible for eventual consequences...
  • Page 29 USER MENU Recommended 1. HEATING 1. CH Temperature / 1. CH setpoint 90/Technician OTC set 2. Outside temperature for CH off 2. ECO setpoint reduction 3. Scheduler set 1. Enable/disable on board scheduler Enabled Disabled Enabled 2. Scheduler set ON/OFF 2.
  • Page 30 TECHNICIAN MENU Recom- After mended factory reset 3. SYSTEM 1. Boiler 1. Ignition power SETTINGS parameters HIGHER THAN 30% NOT ALLOWED 2. Delay siphon check CHECK SYPHON IS NOT EMPTIED BY NEW VALUE 3. Number of boiler pumps 2 pump Pump 3-w-valve 2 pump 2 pump...

  • Page 31: Installation

    INSTALLATION Installing the boiler The installation must be done in accordance with all local and national codes, regulations and standards, and in accordance with the directives of all relevant authorities. When installed and for the first-time operated fill in the date and data in the table in chapter 9.1 1.

  • Page 32: Water Connection

    6.3.1 Pump The boiler does not have a built in CH-pump. Therefore a CH-pump should be mounted into the EcoFlex installation. Select a pump that matches the hydraulical resistance of the boiler and the installation. In the graph below you’ll find the resistance characteristics for all types.
  • Page 33 < 0,11 °dH For instance: For a EcoFlex 210 kW boiler and a total hardness of 11,2 °dH (German hardness) the total volume of filled, refilled and topped up water must not exceed 20 ltr/kW. If this hardness value is excee- ded the total amount of filling, refilling and topping up water is: (11,2/actual hardness in °dH) x ltrs/kW.

  • Page 34: Air-Supply And Flue-Gas Connection

    X200 : Noise reducer long life system treatment to eliminate noise X300 : System cleaner for new hydronic heating systems X400 : System restorer non acid cleaning of older systems X500 : Inhibites antifreeze against scale and corrosion in all types of indirect heating systems at low temperatures Note that these products must be used strictly in accordance with the water treatment manufactu- rers instructions.
  • Page 35 Note: C63 is not possible for Belgium. If the inlet air contains dust or dirt one should install a filter or a leaf catcher in the air supply. Contact your supplier. 6.5.1 B23 As standard the boiler is delivered as type B23 where the supply air is taken from the room where the boiler has been installed in.
  • Page 36 210-6 1,12 252-7 50,4 1,12 294-8 1,12 The maximum allowed recirculation rate under wind conditions is 10 %. Maximum allowable combustion air temperature 45 °C. The tables below give an indication of maximum lengths (in mtrs) for parallel air supply and flue outlet pipes.
  • Page 37 Pressure drop table per component Boiler type Component 168-5 210-6 252-7 294-8 Pressure drop [Pa] Flue gas Air [Pa] Flue gas Air [Pa] Flue gas Air [Pa] Flue gas Air [Pa] [Pa] [Pa] [Pa] [Pa] Pipe length 1m ø 200mm Pipe length 1m ø...
  • Page 38 - Column 4 pressure drop from pressure drop table /component for flue gas components - Column 5: pressure drop from pressure drop table /component for air components Select the correct column for the selected boiler type (168-5: 1,2 , 210-6: 3,4 , 210-7: 5,6 294-8: 7,8) - Column 6 total pressure drop flue gas: multiply column 2 *4 - Column 7...
  • Page 39 Roof Terminal ALU Expander 110-150 200/200-200/300 EPDM Roofterm ALU 200 Wall Terminal air PP 150 Expander 110-150 Roofterm PP 200 7021 EPDM Components OEM Art.no M&G PP Ø 200 mm ELBOW PP 200 90° EPDM 41.007.04.11 ELBOW PP 200 45° EPDM 41.007.04.12 EXTENSION PP 200x500 41.007.04.01...

  • Page 40: Installing Flue-Exhaust And Air Inlet

    EXTENSION ALU 200x500 41.008.05.31 ROOFTERM ALU 200 B23-C53 41.008.67.20 ROOFTERM ALU 200/200-200/300 C33 40.045.29.27 WALLTERM ALU 200/200-200/300 C13 41.002.78.30 General Wall Bracket 200 41.008.71.98 SEAL EPDM 200 (PP DN 200) 41.007.52.95 SEAL SIL 200 (ALU 200) 41.002.73.70 Wall Bracket 150 41.008.71.96 SEAL EPDM 150 mm (PP DN 150) 41.002.73.58...
  • Page 41 Flue exhaust • A horizontal flue way pipe must be installed with a fall of 3° (50 mm per mtr) downwards to the boiler to allow condensate to flow back in the sump or condensate collector. • The minimum insert length into the sleeve and the minimum length of the pipe end for aluminium and stainless steel must be 40 mm.

  • Page 42: Important Notice

    Important notice If instructions as written above are not followed and or the materials for air inlet and fluegas outlet as quoted above are not used Mark Climate Technology can not be held responsible for eventual consequences Electrical connection 1. The electrical installation should be in accordance with national and local regulations.
  • Page 43 General remarks: Use the lowest tube on the right side to guide the low voltage connections from C2. Use the two upper tubes on the right side to guide the 230 V connections from C1. Also see wiring diagram on next page. 6.7.1.
  • Page 44 INSTALLATION MANUAL DEJATECH FLOORFLEX 51/74 DEJATECH tel. + 31 77 475 2270 Revision 10 subject to changes without prior notice printdatum 15-08-19...
  • Page 45 6.7.2 Table resistance NTC’s Temperature Resistance [ºC] [Ω] 98.200 75.900 58.800 45.900 36.100 28.600 22.800 18.300 14.700 12.000 9.800 8.050 6.650 5.520 4.610 3.860 3.250 2.750 2.340 1.940 1.710 1.470 1.260 1.100...
  • Page 46 Pneumatics connection A pneumatic diagram for the EcoFlex 168 (5 sections) and the EcoFlex HR 294 (8 sections) is given in the figure below. A pneumatic diagram for the EcoFlex HR 210 (6 sections) and the EcoFlex HR 252 (7 sections) is given...
  • Page 47 The siphon pressure switch, connected to the sump (P1), prevents overflow of the syphon in case of excess back pressure in the flue. The air pressure switch, (P1 and P2), connected to the venturi, checks the amount of air (by means of a ∆p measurement) before start.

  • Page 48: Gas Category

    Gas category The types of gas and supply pressures vary per country. In the table below the gas category and supply pressure are listed per country. Country Category Pressure [mbar] Austria Belgium I2E(R) 20/25 Bulgaria Croatia Cyprus Czech Republic Germany I2ELL Denmark Estonia...
  • Page 49 7.2 Adjustment % CO2 and check on input The boiler is equipped with an automatic gas/air regulator. This means that the amount of gas is regulated depending on the amount of air. The % CO2 needs to be adjusted according to the table below. Type of boiler Gas type Inlet pressure...
  • Page 50 ERRORS General If there is no data visible on the display, the fuse (5,0 AT) in the controlpanel near the mainswitch should be checked (as well as the position of the on/off switch) and should if required be replaced (after the cause for break down has been determined and rectified).
  • Page 51 F1: T3.15A 250 V F2: T3.15A 250 V If you are not sure there is any heat demand, you can force the boiler to start as described in 5.5. At heat demand, the boiler control will perform zero-check of air pressure switch before starting the fan. After that the fan will start and wait for air pressure switch to close.

  • Page 52: Dhw Errors

    DHW errors Boiler does not respond to DHW heat request Check the storage tank-NTC or thermostat and its wiring (also see electrical wiring diagram). Check if DHW is enabled using the control panel Insufficient DHW flow Dirty filters in taps. Insufficient water pressure.
  • Page 53 Hard Description Soft Description Lockout Lockout Code Code Failed ignition High flue temperature False flame Internal control fault High boiler temperature Reset limit reached Air flow/damper Internal control fault Blower speed DHW sensor shorted Air flow/damper DHW sensor open Flame circuit error Low voltage Gas valve circuit error Low water...

  • Page 54: Annual Inspection Maintenance

    ANNUAL INSPECTION MAINTENANCE Maintenance must only be done by a qualified installer or technician. The appliance must be inspected once every two years according to table 9.1. Maintenance must be done once every two years according to table 9.1 The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Page 55 Maintenance (also see 9.1, 9.2, 9.3 and 9.4) Maintenance set (article nr 101103) must be used. All parts of the set should be used as replacement. Switch off the boiler. Disconnect from the mains electricity supply. First check the air-inlet and the exhaust flue-outlet.
  • Page 56 Procedure putting back in place inspection covers on the left-hand side of the heat-exchanger Procedure putting back in place inspection covers on the left-hand side of the heat-exchanger First slide the lower bar over the M8 studs First slide the lower bar over the M8 studs Then mount the lower nuts loose (2-3 rotations) Then mount the lower nuts loose (2-3 rotations) Then put for each opening and inspection cover foreseen with a seal...
  • Page 57 Figure 9.1 special tool for cleaning Figure 9.1 special tool for cleaning 68/74 DEJATECH tel. + 31 77 475 2270 Revision 10 subject to changes without prior notice printdatum 15-08-19...

  • Page 58: Service-Maintenance Table

    Service-maintenance table When commissioning/inspecting the boiler CO2, CO, T flow, T return, ∆P air pressure switch and Psyphon pressure switch must be measured and the measured values must be written down in the table below. Measure these values when the boiler is in equilibrium at maximum load (also see chapter 5.5). Repeat for minimum load.
  • Page 60 9.2 Tubing and fixation During the inspection and maintenance also all the tubing and its fixations as shown in 9.2 Tubing and fixation the pneumatic diagram in chapter 6.8 must be checked. During the inspection and maintenance also all the tubing and its fixations as shown in the pneumatic Check for leakage and correct fixation.
  • Page 61 9.3 Non return valve NRV in burner hood 9.3 Non return valve NRV in burner hood For cascade also read the “cascade” manual. During maintenance the outer seal (red part) of the non-return valve must be replaced. For cascade also read the “cascade” manual. For cascade also read the “cascade”...
  • Page 62 9.4 Torque table Concerning part Torque in Nm Inspection cover sump Burner hood on heat-exchanger Venturi on fan Fan on burner hood Air-inlet on fan Gas valve on fan Electrode ignition Electrode ionisation Inspection cover on left-hand side heat-exchanger middle Inspection cover on left-hand side heat-exchanger front Inspection cover on left-hand side heat-exchanger back Manifold return...
  • Page 63 (EU) 2016/426 (9 March 2016) Report number Scope 0063CQ3790 EU TYPE EXAMINATION CERTIFICATE (GAR) Kiwa hereby declares that the condensing central heating boilers, type(s): EcoFlex HR 168, EcoFlex HR 210, EcoFlex HR 252, EcoFlex HR 294 Mark B.V. Manufacturer Veendam, The Netherlands meet(s) the essential requirements as described in the Regulation (EU) 2016/426 relating to appliances burning gaseous fuels.
  • Page 64 Report number Scope 0063CQ3790 1 of 1 Page APPENDIX TO EU TYPE EXAMINATION CERTIFICATE (GAR) Manufacturer: Mark B.V. Types: EcoFlex HR 168, EcoFlex HR 210, EcoFlex HR 252, EcoFlex HR 294 Appliance types: *, C (11)3 Appliance categories: 2E(R) 2E(S)
  • Page 65 Der Unterzeichnete, J.K. de Boer, Direktor von Mark B.V., erklärt, dass die oben beschriebene Maschine, wenn sie gemäß Bedienungsanleitung The models EcoFlex HR 168, 210, 252 and 294 are approved. und nach den anerkannten Regeln der Technik installiert, gewartet und gebraucht wird, den grundlegenden Sicherheits- und Gesundheits- Anforderungen der Richtlinie “Maschinen”, sowie folgenden...
  • Page 66 DECLARATION DE CONFORMIDAD ‘CE’ EC- DEKLARATION (Directiva 2006/42/EC sobre maquinaria (EC direktiv 2006/42/EC om maskiner para máquinas 1) til maskinen 1) El suscrito, J.K. de Boer, autorizado por Mark B.V., certifica que la Undertegnede, J.K. de Boer, autoriseret af Mark B.V., bekræfter at máquina anteriormente descrita, a condicón de que esté...
  • Page 68 MARK BV MARK DEUTSCHLAND GmbH BENEDEN VERLAAT 87-89 MAX-PLANCK-STRASSE 16 VEENDAM (NEDERLAND) 46446 EMMERICH AM RHEIN POSTBUS 13, 9640 AA VEENDAM (DEUTSCHLAND) TELEFOON +31(0)598 656600 TELEFON +49 (0)2822 97728-0 FAX +31 (0)598 624584 TELEFAX +49 (0)2822 97728-10 info@mark.nl info@mark.de www.mark.nl www.mark.de MARK EIRE BV MARK POLSKA Sp.
