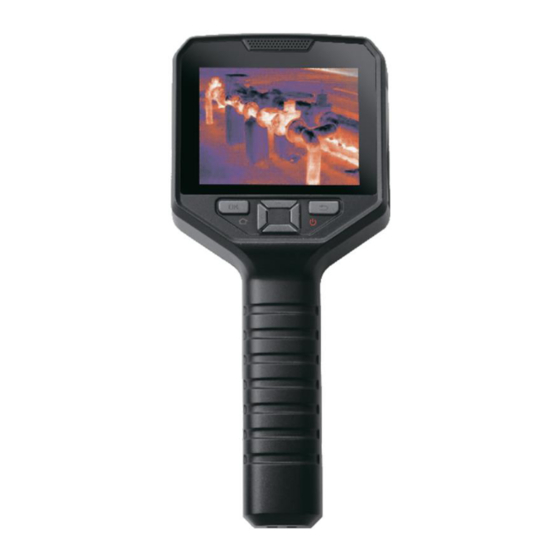

TI332 Handheld Thermal Imaging Camera
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI332 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Owon TI332

  • Page 1 TI332 Handheld Thermal Imaging Camera User Manual V1.0...
  • Page 2 TI332 Handheld Thermal Imaging Camera User Manual Version Date Modified Author Approved By Note number V1.0 202001...

  • Page 3: Table Of Contents

    Contents OVERVIEW ....................1 ..................1 PPEARANCE ................. 6 OWER ................6 UICK EASUREMENT ..........12 ELETE AND NFRARED HERMAL MAGE ................... 16 ..............17 ONTROL AND TRIGGER KEYS ..............17 HARGE AND XPORT ICTURES Charge ................17 1.7.1 Export Picture ..............18 1.7.2 OPERATION AND SETTINGS ................
  • Page 4 Alarm below threshold ..........29 2.2.3.2 WiFi ................29 2.2.4 Enable and Disable WiFi ..........29 2.2.4.1 WiFi Configuration ..........29 2.2.4.2 LED ................. 30 2.2.5 More ................30 2.2.6 Temperature Unit ........... 31 2.2.6.1 Storage .............. 31 2.2.6.2 Date ..............32 2.2.6.3 Automatic Power Off ..........

  • Page 5: Overview

    1.Overview Overview Appearance TI332 handheld thermal imaging camera appearance is shown below,...
  • Page 6 1.Overview...
  • Page 7 1.Overview The front of TI332 handheld thermal imaging camera has 6 buttons, as shown below,  OK & Homepage  Up arrow  Down arrow  Left arrow  Right arrow  Return & Power...
  • Page 8 1.Overview The back of TI332 handheld thermal imaging camera has 1 button,  Trigger...
  • Page 9 1.Overview...

  • Page 10: Power On/Off

    1.Overview Power On/Off  Press “Return & Power” key >1 second to power on TI332 handheld thermal imaging camera, the thermal imaging will display later.  Press “Return & Power” key >3 seconds to power off TI332 handheld thermal imaging camera ...
  • Page 11 1.Overview  Point the lens at the measured object as shown in the figure below, and the infrared image of the measured object will be displayed on the screen.
  • Page 12 1.Overview  If the temperature value is not displayed on the screen, press "OK & Homepage", then select the "Measurement" icon , and then select "Center Spot", "Hot Spot" and "Cold Spot" in the figure below to display the temperature,...
  • Page 13 1.Overview...
  • Page 14 1.Overview  Press the trigger button will freeze the image as the figure below,...
  • Page 15 1.Overview  As shown in the figure below, you can save the thermal image and visible light image by pressing the "trigger button" or "OK & Homepage", and press the "Return & Power" to cancel saving.

  • Page 16: Save, Delete And View Infrared Thermal Image

    1.Overview Save, Delete and View Infrared Thermal Image  Power on the thermal camera.  Point the lens to the object.  Press the "trigger" to freeze the thermal image and visible light image, continue to press the "trigger" or "OK & Homepage" to save the thermal image and visible light image, press the "Return &...
  • Page 17 1.Overview  Press Return will view the saved thermal images and visible images.
  • Page 18 1.Overview  Every time take pictures will save 3 frames into 1 picture, frame: the image frame of what you see is what you get frame: the raw image frame of thermal image...
  • Page 19 1.Overview 3rd frame: the raw image frame of visible light image  In the album, press "OK & Homepage" to preview the image in full screen. You can view the 3 frames of each picture by using the up and down arrow keys. The left and right arrow keys select the previous or next picture.

  • Page 20: Main Page

    1.Overview Main Page 1. Current Emissivity 2. Hot spot, cold spot and central spot 3. Time 4. WiFi 5. Battery...

  • Page 21: Control And Trigger Keys

    1.Overview 6. Color bar 7. Second level menu 8. First level menu Control and trigger keys According to the below description to operate control and trigger keys,  "OK & Homepage" is only used as the homepage key to open the menu when the main page interface is turned on, other times as the Ok key.

  • Page 22: Export Picture

    1.Overview 1.7.2 Export Picture There are several methods to export camera pictures,  When the thermal imaging camera is power on, connect the camera USB interface to the computer with the accessory's USB cable. A USB drive letter will appear on the computer. You can select the pictures to copy to the computer.

  • Page 23: Operation And Settings

    2.Operation and Settings Operation and Settings Main Page Operation 2.1.1 Quick Operation 2.1.1.1 Quick Switch Color Palettes When there is no menu on the main page, you can press the left and right arrow keys to quickly switch between 8 types of color palettes. For details about color palettes, see 2.1.3.4 Color palette.

  • Page 24: First Level Menu

    2.Operation and Settings 2.1.2 First Level Menu Power on the camera, press the "OK & Homepage" to display the first-level menu and the status bar on the top. In this state, press the "Return & Power" to close the first-level menu and status bar.

  • Page 25: Second Level Menu

    2.Operation and Settings Temperature measurement options, such as displaying the highest and lowest temperature. Measurement Select the image display mode, such as picture-in-picture, outline fusion etc. Image Mode Select the effect of the image, such as high contrast, gentle and so on. Thermal AGC Select the infrared thermal imaging palette, such as iron, white hot, etc.

  • Page 26: Measurement

    2.Operation and Settings 2.1.3.1 Measurement The function is shown below, Function Icon Description Cancel all measurement measurements Measure the center point temperature of the Center spot thermal imaging camera Track and measure the highest temperature Hot spot points imaged by the camera Track and measure the lowest temperature Cold spot point imaged by the camera...

  • Page 27: Image Mode

    2.Operation and Settings 2.1.3.2 Image Mode The function is shown below, Function Icon Description Fusion of visible edge lines and infrared thermal Outline Fusion imaging Infrared thermal imaging and visible light overlay Overlay fusion display Picture in Infrared thermal imaging as a picture-in-picture Picture display in the center of visible light Only display infrared thermal image...

  • Page 28: Thermal Agc

    2.Operation and Settings 2.1.3.3 Thermal AGC The function is shown below, Function Icon Description Choose high contract mode to view infrared High contrast thermal image Choose legacy mode to view infrared thermal Legacy image Choose gentle mode to view infrared thermal Gentle image 2.1.3.4...

  • Page 29: Settings

    2.Operation and Settings The function is shown below, Function Icon Description Tyrian White Hot Black Hot Rainbow Glory Iron Hottest Coldest Settings The settings interface is shown below, 2.2.1 Language Select the language in the setting interface, click "OK & Homepage" to select the following different languages,...
  • Page 30 2.Operation and Settings Language English Simplified Chinese Spanish French Japanese Korean Russian Arabic Traditional Chinese...

  • Page 31: Emissivity

    2.Operation and Settings 2.2.2 Emissivity Select the emissivity in the setting interface, and press "OK & Homepage" to set different emissivity of the object, or you can manually edit the emissivity. Emissivity Value Matt 0.95 Semi-matt 0.80 Semi-glossy 0.60 Glossy 0.30 Edit Emissivity Customization...

  • Page 32: Alarm Above Threshold

    2.Operation and Settings 2.2.3.1 Alarm above threshold Edit the upper limit alarm value, and then turn on the upper limit alarm switch (these two steps are in no particular order). If the temperature value in the screen area is higher than the set threshold temperature, an alarm icon will pop up on the screen.

  • Page 33: Alarm Below Threshold

    2.Operation and Settings 2.2.3.2 Alarm below threshold Edit the lower limit alarm value, and then turn on the lower limit alarm switch (these two steps are in no particular order). If the temperature value in the screen area is higher than the set threshold temperature, an alarm icon will pop up on the screen.

  • Page 34: Led

    2.Operation and Settings 2.2.5 Select the LED in the setting interface, and press "OK & Homepage" to turn the LED on or off. 2.2.6 More Select More in the setting interface, and press "OK & Homepage" to set more settings.

  • Page 35: Temperature Unit

    2.Operation and Settings 2.2.6.1 Temperature Unit Temperature unit support below,  Celsius  Fahrenheit  Kelvin 2.2.6.2 Storage In the storage option, you can view the current and used capacity of the internal storage memory, and you can choose to format the storage memory.

  • Page 36: Date

    2.Operation and Settings 2.2.6.3 Date Date setting can set the current date and time.

  • Page 37: Automatic Power Off

    2.Operation and Settings 2.2.6.4 Automatic Power Off Automatic power off can be selected for the following duration if without operating the camera  5 minutes  10 minutes  30 minutes  60 minutes  Never...

  • Page 38: Temperature Bar

    2.Operation and Settings 2.2.7 Temperature Bar This option can display or not display temperature bar in the home page. 2.2.8 Brightness This option can adjust the brightness of the screen. 2.2.9 Restore factory settings Restore factory settings will perform default factory settings on the handheld thermal imaging camera.
  • Page 39 2.Operation and Settings...

  • Page 40: Maintenance

    3.Maintenance Maintenance Battery Service and Replacement If the battery cannot be charged and needs to be replaced, please contact your local distributor for repair and replacement. Calibration The camera is calibrated in the factory. If calibration is required, please contact your local distributor.

  • Page 41: Specification

    4.Specification Specification The specification of TI332 is below, Parameter Specification Resolution 320x240 Frequency band 8~14um Frame rate NETD 70mK@25°C Field of view Horizontal 34.4°, vertical 25.8 Lens 6.5mm Infrared Thermal Temperature range -20°C ~ +350°C Imaging Temperature measurement ±2°C or ±2%...

  • Page 42: Appendix

    5.Appendix TIFF format, support full frame pictures File format temperature analysis Windows platform analysis Provide professional analysis functions to analyze software full pixels temperature analysis Image analysis Android platform analysis Provide professional analysis functions to analyze software full pixels temperature analysis USB Type-C（Support battery charging and data Interface Data and charging interface...

  • Page 43: Technical Support

    6.Technical Support Plaster 0.80 - 0.90 Iron oxide 0.78 - 0.82 Stucco 0.89 - 0.91 textile brick 0.93 - 0.96 Technical Support...
