Summary of Contents for SIGLENT SC1016

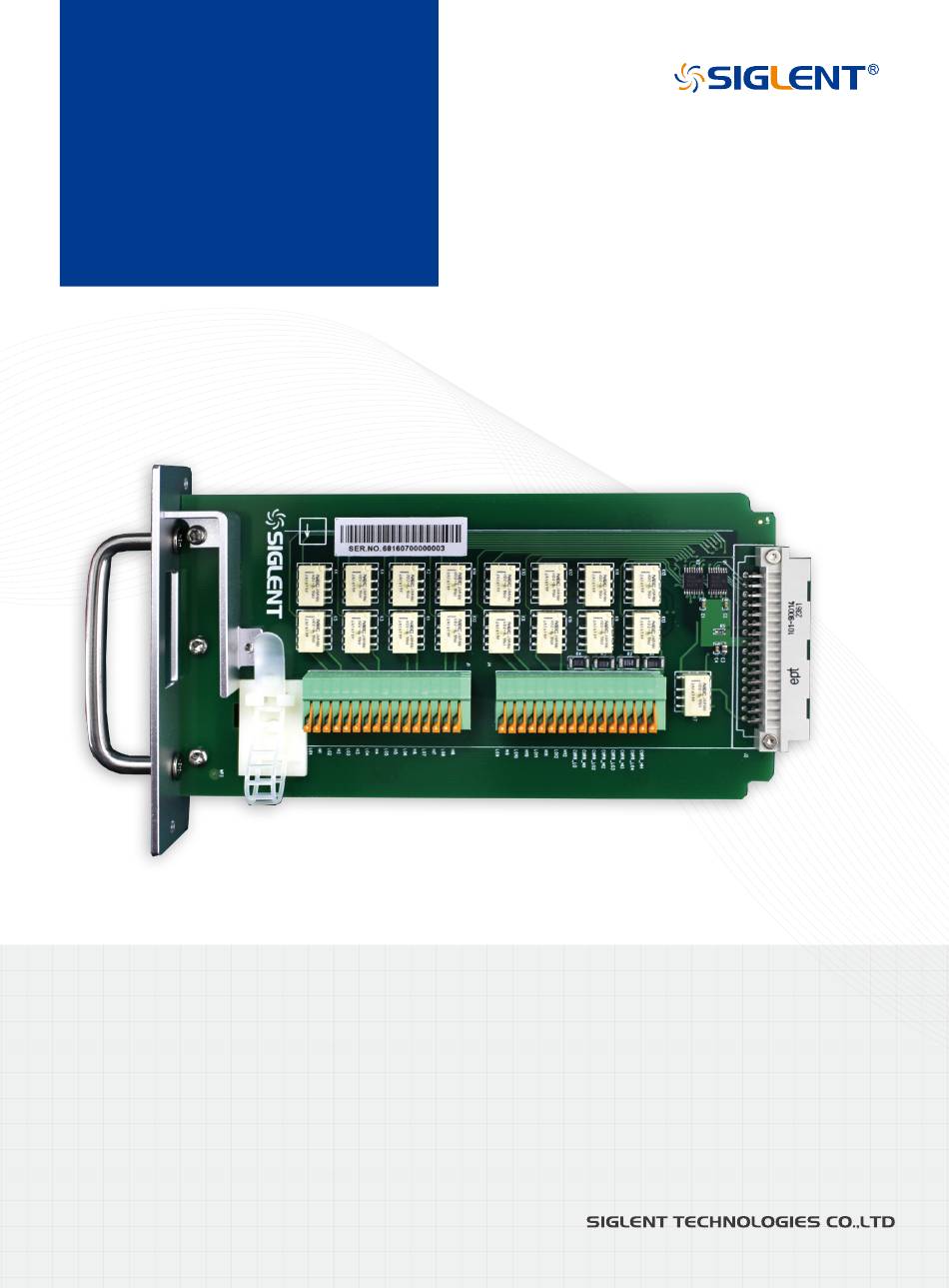

- Page 1 SC1016 User's Guide...
-
Page 2: Product Overview

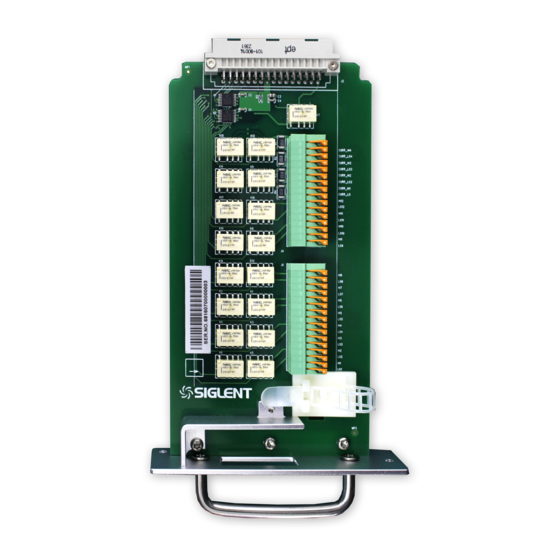

SC1016 User’s Guide Product Overview The SIGLENT SC1016 is a multiplexer that provides multi-point measurement capabilities to the SDM3000 series of digital multimeters. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple).It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in... -
Page 3: Specifications
Safety SIGLENT thanks you for purchasing the SC1016 module. To achieve the best performance from the product, please read this guide carefully. To avoid electrical shock and personal injury, please don’t use the product to measure signals that exceed the published specification. - Page 4 WARNING The SC1016 is not designed to be “hot swappable”. Remove power from all inputs and turn the instrument power off before installation or removal of the scanner card. Hot swapping the card could cause damage and is not covered under the warranty.
- Page 5 SIGLENT Digital Multimeter SC1016 User’s Guide 2.Application of 16 Channels (1) 2-Wired Application (DCV/ DCI/ ACV/ ACI 2WR/ 4WR/ CAP/ FREQ/ DIODE/ CONT / TEMP) Remarks：[1] CH1 to CH12 can be used to measure DCV /ACV/ 2WR/ 4WR/ CAP/ FREQ/ DIODE/ CONT / TEMP.
- Page 6 SIGLENT Digital Multimeter SC1016 User’s Guide 4.Channel setup Press the [Channel Setup] to enter the setup interface. Table 2. Scanner Function Menu Description Function Menu Description Channel Config Open/close the channel and set the measurement function, measurement parameters of specified channel.
- Page 7 SIGLENT Digital Multimeter SC1016 User’s Guide 6.Start scan operation Set the [Start] to on to start the scan operation The upper part of the interface displays the function, range, and result of the current channel. The table below records the measurement result of each channel.
- Page 8 The data can then be automatically or manually saved to a database or exported as a CSV files Channel Configuration Data Acquisition Trend Chart Histogram The latest version of EasyDMM can be downloaded for free from the SDM3000 series of digital multimeter. Take a look at www.siglent.com for more information. WWW.SIGLENT.COM...
