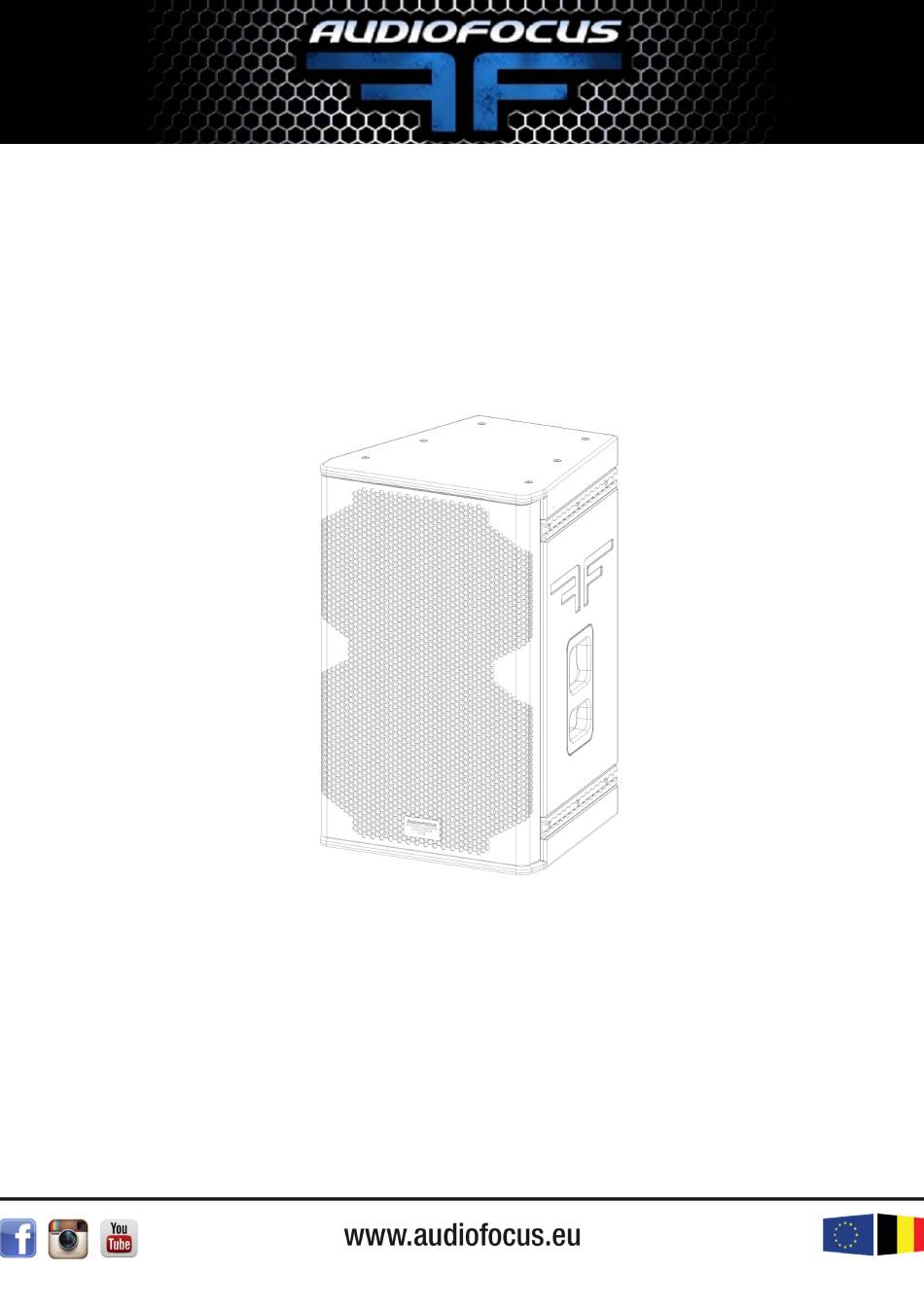

- Page 1 AUDIOFOCUS FRX-HQ series USER’S MANUAL AUDIOFOCUS FRX series USER’S MANUAL Page...
- Page 2 3.4 HARDWARE AND COVER 4 SETUP 4.1 LED DISPLAY 4.2 PRESET 4.3X COMB 4.4 DIRECTIVITY 4.5 EASE PREDICTION 4.6 RIGGING 4.7 WIRING 4.8 ETHERNET PORT 4.9 MAINTENANCE 5 TECHNICAL SPECIFICATIONS 6 CONTACT AND LINK AUDIOFOCUS FRX series Page USER’S MANUAL...
-
Page 3: Security Statement
EN55020:2002=A1:2003+A2:2005 EN61000-3-2:2000+A2:2005 EN61000-3-2:2295+A1:2001+A2:2005 Ing. Xavier Marchal Audiofocus R&D Director Maximum load have been tested and approved by Vinçotte, s.a.-CERTEST Products 2.2 HANDLING Keep the device away from moisture! AF is not responsible for third party material use, for example foot lift. -
Page 4: System Component
3 SYSTEM COMPONENT 3.1 INTRODUCTION Thank you for choosing the AUDIOFOCUS FRX series. This user manual contains essential information for rigging and deploying FRX series elements to their full capability. Carefully read this document in order to become familiar with the system. - Page 5 The MTsub218 mkII is recommended for the FRX series Xcomb configuration. Use 3 MTsub218mkII for three FRX series in Xcomb mode. 3.3.3 S21 The S21is recommended subwoofer for the FRX series Pole mounted configuration and Comb configuration. AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 6 3.3.4 FOUR WAY SYSTEM S21 in infra mode can be combined with another S21, an S18 or an S15 in bass mode an than form a 4 way system with the FRX series speaker on top. AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 7 Ambient temperature and amplifier temperature are related but not the same! (amplifier start limiting at 75°c). Transport cover and flight cases for FRX series are recommended to ensure a long life to the system AUDIOFOCUS FRX series Page USER’S MANUAL...
-
Page 8: Led Display
Error ON: light up if an error is detected Knob: one turn and push all function knob PRIM AND SEC D NET: controller input AESOP I/O and link for AFnetwork management and Dante IO if Dante option chosen AUDIOFOCUS FRX series Page USER’S MANUAL... -
Page 9: Load Preset
(our dedicate software-remote control of the amplifier with computer). Turning the knobs change the sector number and pushing the knobs selected the next sector. SOURCE selection of the input source of the amplifier. analog (input 1)AES (input2) AESOP. AUDIOFOCUS FRX series Page USER’S MANUAL... - Page 10 Preset 3,5: ODD preset on Xcomb configuration, see 4.3 Preset4,6: EVEN preset on Xcomb configuration, see 4.3 Preset 7: High Pass preset. Make FRX more even more efficient, especially with a four way system (Sub/Bass/FRX), see AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 11 4 for odd and even with MTsub 218 mkII and preset 5 and 6 for odd and even with S21. Use the Audiofocus coupling board or coupling bar in order to align them in the correct position. Left and right stack presets have to be selected in a symmetrical way: AUDIOFOCUS FRX series USER’S MANUAL...
- Page 12 Center preset have to be of an EVEN kind (preset 4 with MTsub 218 mkII or preset 6 with S21): AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 13 (also XCOMB): 80° 30° 30° 80° Remove the magnetic Remove the 4 nuts and front grill turn the horn AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 14 4.5 EASE PREDICTION Please refer to Easefocus quick start guide. 4.6 RIGGING Use AUDIOFOCUS coupling bar and bumper to hang FRX series on any way needed, with the help of flying track. AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 15 AUDIOFOCUS FRX series Page USER’S MANUAL...
- Page 16 4.7 WIRING Audiofocus power and signal cables with the appropriate section, length and connectors for passive and active speaker are recommended Connect power and signal cables as describe on the technical drawing. Make sure the preset, volume are right. Check the signal output before application.
-
Page 17: Ethernet Port
You want to have regular check of the general aspect of the cabinet. Wood paint part can be clean with maintenance furniture product, metal part with a microfiber. Audiofocus preset upgrade is available on every speaker thru AF Manager software, with a RJ45 connection. See AUDIOFOCUS website for the last upgrade. -
Page 18: Technical Specifications
680 x 429 x 437 mm (incl. feet) / 22,5° Weight 35 kg / 77 lb Cabinet Baltic birch plywood Finish Black ecological waterborne paint Front Steel removable grill on magnets Mounting accessories d35 steel flange AUDIOFOCUS FRX series Page USER’S MANUAL... - Page 19 6 CONTACT AND LINK www.audiofocus.eu info@audiofocus.eu www.facebook.com/AudiofocusPage/ www.facebook.com/groups/AUDIOFOCUS/ AUDIOFOCUS FRX series Page USER’S MANUAL...
