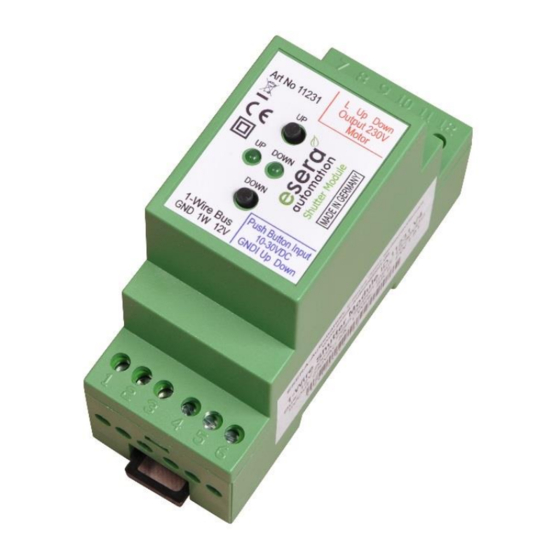

esera automation Shutter Pro V4 User Manual

Art. No. 11231
Operation purpose / area of operation:
 Control of shutters, awnings, blinds or venetian blinds by
control or manual operation

Control of heating mixers
Equipment:

Standard 1-Wire interface and control input

Push-button interface for external DC voltage

Manual control via push-button

Control of powerful tubular motors through
robust module design

Automatic safety switch-off of the motor

LED display for up or down operation

DIN rail housing for control cabinet installation

screw terminal connection

New, with DS2408 interface
1

Introduction

Before you start assembling the Shutter Pro V4 and put the device into operation, please read this assembly and
operating instructions carefully to the end, especially the section referring to the safety notes.
2

Product description

With the Shutter Pro a motor or motor group* for external roller shutters, awnings, blinds or venetian blinds can
easily be controlled. An operation in combination with a heating mixer is also possible.
The Shutter Pro has three interfaces for control. Manual operation via push-button on the module surface, control
inputs for manual operation and the 1-Wire data interface.
The combination of the interfaces makes central and convenient automatic control as well as local decentralised
control possible. All three interfaces can be operated in parallel.
The roller shutter can be operated manually or automatic operation can be stopped at any time by means of
external up/down buttons, which are mounted in the area of the window, for example.
An external DC voltage in the range of 10-30V is used for the operation of the push-buttons.
The Shutter Pro has two modes of operation, which can be divided into the functions of the module push-buttons,
Up/Down and the external interface (push-button interface). The difference is that in this operating mode an
additional push-button function is available for tilting the external blinds (see table Push-button function, no. 6).
An integrated safety function automatically switches off the connected motor after 120 seconds.
If the running direction changes (up/down), a pause is automatically maintained to protect the mechanics of the
tubular motors and roller blinds.
All internal functions are controlled and monitored by a modern microcontroller.
*
The use of one isolating relay per tubular motor is necessary to control roller shutter groups.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de

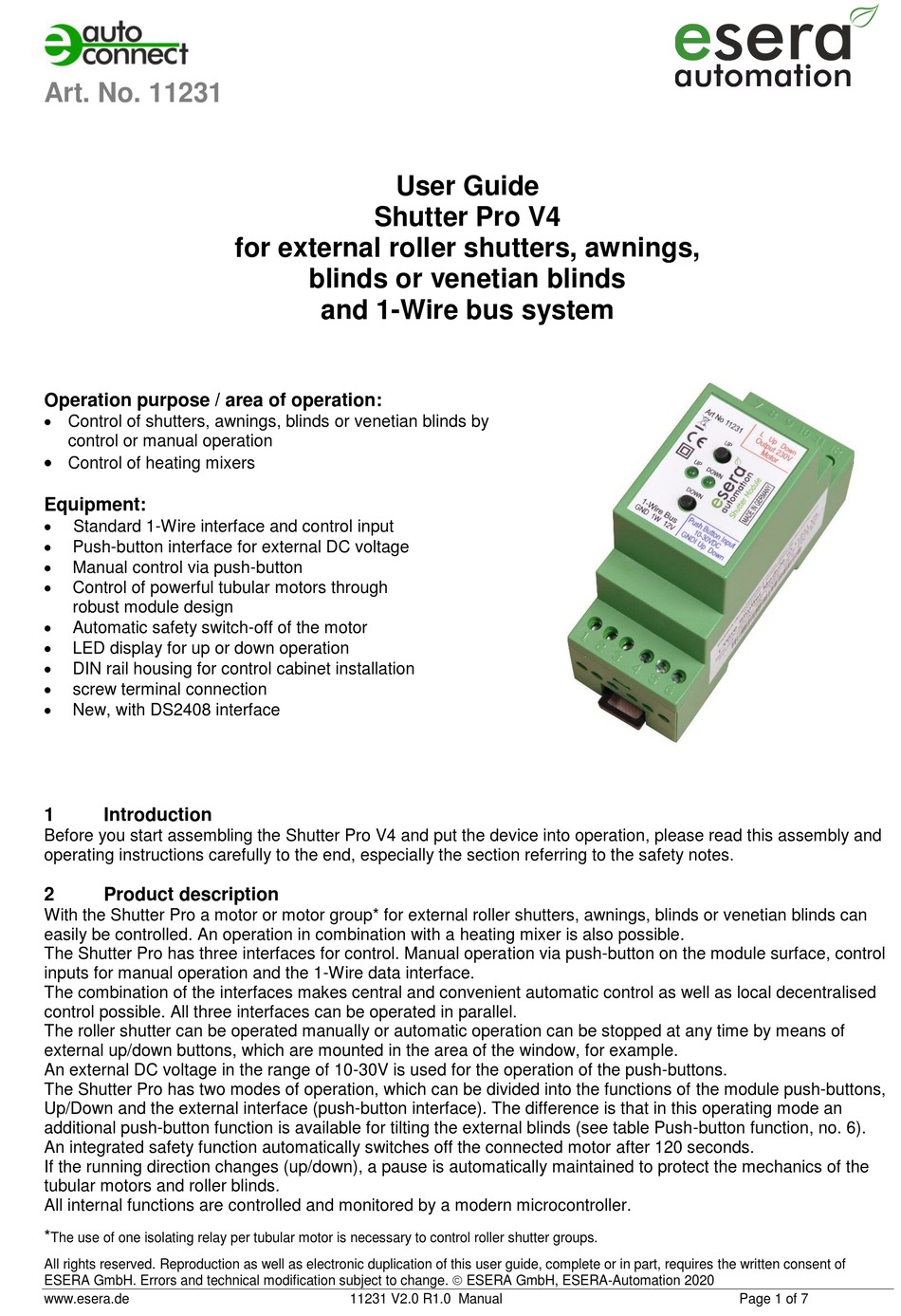

User Guide
Shutter Pro V4
for external roller shutters, awnings,
blinds or venetian blinds
and 1-Wire bus system
11231 V2.0 R1.0 Manual Page 1 of 7
