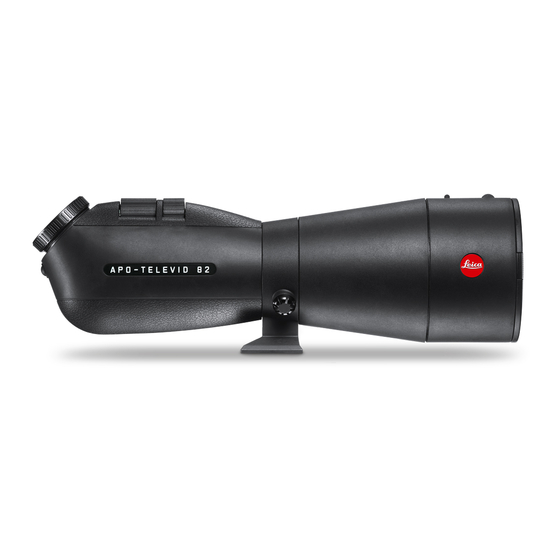

Leica APO-TELEVID 65 Instructions Manual
  1. Manuals
  2. Brands
  3. Leica Manuals
  4. Telescope
  5. APO-TELEVID 65
  6. Instructions manual

Leica APO-TELEVID 65 Instructions Manual

Hide thumbs Also See for APO-TELEVID 65:
Table of Contents

Advertisement

Quick Links

APO-TELEVID 65/82
ANLEITUNG | INSTRUCTIONS
NOTICE D'UTILISATION | GEBRUIKSAANWIJZING
ISTRUZIONI | INSTRUCCIONES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APO-TELEVID 65 and is the answer not in the manual?

Questions and answers

Related Manuals for Leica APO-TELEVID 65

Summary of Contents for Leica APO-TELEVID 65

  • Page 1 APO-TELEVID 65/82 ANLEITUNG | INSTRUCTIONS NOTICE D’UTILISATION | GEBRUIKSAANWIJZING ISTRUZIONI | INSTRUCCIONES...

  • Page 2: Table Of Contents

    We wish you a great deal of pleasure and success using Designation of parts ..........13 your new Leica Apo-Televid. In order to make best use Attaching / Removing the eyepiece ......13 of all the opportunities offered by this high performance Use with and without glasses ........

  • Page 3: Designation Of Parts

    ATTACHING / REMOVING THE EYEPIECE 3. Eyepiece release button 4. Dual focusing roller for A Leica Apo-Televid consists of the spotting scope body a.Rough focusing and an eyepiece. To attach one of these eyepieces to b.Fine adjustment the spotting scope, the red mark (1b) on the bayonet 5.

  • Page 4: Use With And Without Glasses

    USE WITH AND WITHOUT GLASSES FOCUSING Users who do not wear glasses should turn (see below) The dual focusing roller of the Leica Apo-Televid models the eyepiece cup to the left (anticlockwise) until it clicks is equipped with two different ratios. The rear section into place.

  • Page 5: Extendable Lens Hood

    For this side light (stray light), mechanical damage and soiling of reason, the Leica Apo-Televid models are equipped with the front lens by rainwater, fingerprints etc. an especially large support with a 1/4“ tripod thread (5c).

  • Page 6: Interchangeable Eyepieces

    Notes: All eyepieces are supplied with case, bayonet cap, and protective front cap. These eyepieces cannot be used on the earlier Leica Televid/APO-Televid 62 and 77 models. The earlier eyepiece models for the earlier Leica Televid/ APO-Televid 62 and 77 models cannot be used on the current Leica Televid 65 and 82 models.
  • Page 7 TECHNICAL DATA FOR THE EYEPIECE Eyepiece 25-50x WW Magnification 25-50x Objective field of view [in m/1000m] [in degrees] 40-26 / 2.3-1.5° Exit pupil diameter 3.28-1.64 mm Focal length 17.6-8.8 mm Diameter (approx.) 57 mm Length (approx.) [with the eyepiece cups turned in] 90 mm Weight (approx.) 380 g...

  • Page 8: Accessories

    (41 003) The LEICA Digital Adapter 3 (order no. 42 304) allows 40x WW (41 007) the Leica Apo-Televid 65 and 82 spotting scopes to be 20-60x (41 012) used with many of the Leica digital compact cameras (and other models with similarly dimensioned lens barrels).

  • Page 9: Spare Parts

    82 eyepieces ......... 434-829.000-015 Order no. Front cap for Apo-Televid 65/ For LEICA APO-TELEVID 65 with angular sight ..42 311 82 eyepieces ......... 434-829.000-014 For LEICA APO-TELEVID 65 with straight sight ..42 312 For LEICA APO-TELEVID 82 with angular sight ..42 313...

  • Page 10: Troubleshooting

    TROUBLESHOOTING Problem Operating error Remedy/explanation A circular image with no - The viewer’s pupil is not at the - Correct the position of the vignetting cannot be exit pupil of the eyepiece, head, the eyes, or the obtained. i.e. not on the axis and/or not spotting scope.

  • Page 11: Maintenance And Cleaning

    MAINTENANCE / CLEANING Special maintenance is not necessary. However, to maintain performance over many years, the optical system should always be carefully cleaned. Coarse dirt particles, such as sand, should be removed with a fine hair brush or blown away. Marks such as fingerprints on the front lens and eyepiece lenses can be cleaned with a damp cloth and then wiped off...

  • Page 12: Technical Data

    TECHNICAL DATA LEICA APO-TELEVID 65 LEICA APO-TELEVID 82 Optical system uncemented 4 lens element apochromatic system, special fl uorite glass lens elements with anomalous partial dispersion Lens diameter 65 mm 82 mm Coating multiple layer and AquaDura™ hard coated outer lens element surfaces...

  • Page 13: Leica Service Adresses

    LEICA PRODUCT SUPPORT LEICA CUSTOMER CARE The Leica information service can provide you For servicing your Leica equipment or in the event of damage, the Leica Camera AG Customer with an answer to any technical application questions relating to the Leica range either in Care department or the repair service provided writing, on the telephone or by e-mail.

This manual is also suitable for:

Apo-televid 82
