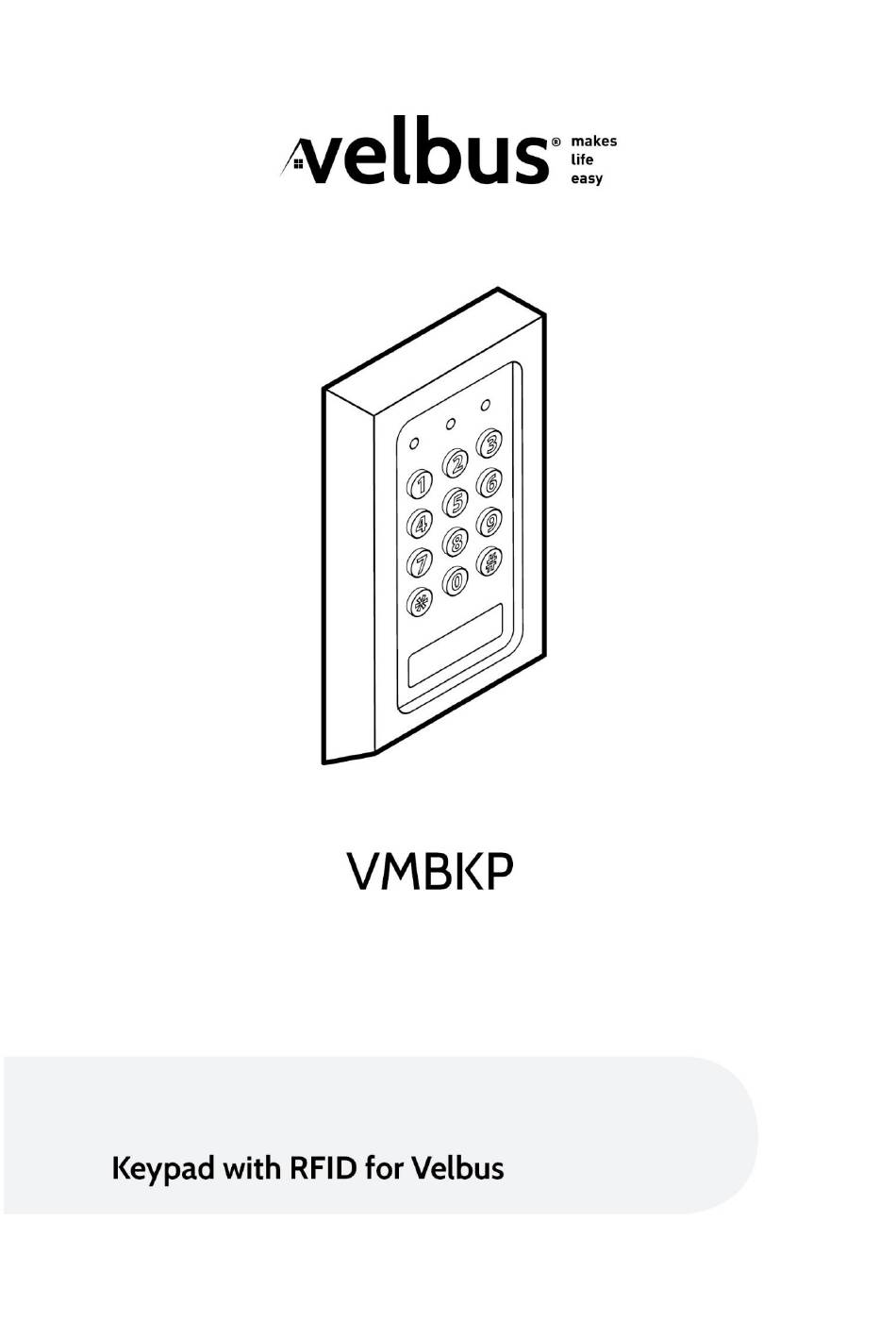

Summary of Contents for Velbus VMBKP
-
Page 2: Table Of Contents
1) EM Card Only – Operation Mode 1 .......................... 13 2) User Code Only – Operation Mode 2 ........................13 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... - Page 3 Door propped-up warning (location 81) ........................... 31 Intelligent Egress Button – A unique feature of the keypad .................... 32 Introduction .................................. 32 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
- Page 4 N.O....................................43 Transistor open collector output ............................43 Open collector output..............................43 Equivalent N.O. contact output ............................ 43 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
-
Page 5: Description
The User group channels that appear in VelbusLink will typically be used to activate a magnetic door lock connected to a Velbus relay. The Tamper channel can control a Velbus relay which in turn is connected to e.g. a siren or the input of an alarm system. -
Page 6: Egress Button
INH (User Group 1 Inhibit Control Input – Normally Open)” on p. 9. This hardware inhibition is executed locally in the keypad and is not communicated to the rest of the Velbus system. It can be controlled by a directly connected button, alarm system output, etc. -
Page 7: Features
(sunrise and sunset timing) are included to operate, lock and unlock the channels automatically (configurable in VelbusLink) Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 8: Specifications
-20 to +70°C, 5-95% relative humidity non-condensing • housing: die-cast zinc alloy protection bracket • faceplate material: stainless steel Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 9: Overview Of Connection Terminals
Overview of connection terminals Velbus connections (required) (-, +, L, H) The connector for the Velbus bus cable. The – and + connections are for the 15±3VDC power supply. The L and H connections are for the Velbus data communication. -
Page 10: Int Lock
TAMPER N.C. (Tamper Switch Normally Closed Contact) Reserved by the Velbus system. (This dry contact is closed while the keypad is secured on is box, and open while the keypad is separated from the box. The corresponding Velbus “tamper alarm” channel is “released” while the keypad is secure on its box and “pressed”... -
Page 11: Facilities
(* * *) The Standby flashing can be turned ON or OFF through the programming option at location 73 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 12: Jumper For Back-Lit Selection (Top Right Of The Pcb)
2. Auto Back-lit: The backlit is OFF in standby. It turns to fully backlit when a key button is pressed, then back to OFF 10 seconds after the last key button is pressed. 3. OFF: Back-lit function disabled Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 13: General Concepts
Secondary User Code. This is useful to trigger a silent alarm when the user is forced to open the door. See “Duress codes (for user groups 1 & 2) (locations 41 & 42)” on p.26 for more information. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 14: 3B) Em Card + Group Secondary User Code - Operation Mode 3 (Using The Same Secondary User Code For Various Users)
Secondary User Code. This is useful to trigger a silent alarm when the user is forced to open the door. See “Duress codes (for user groups 1 & 2) (locations 41 & 42)” on p.26 for more information. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 15: List Of User Information
See the VMBKP Quickstart Guide (delivered with the VMBKP, or free download on www.velbus.eu) for an example and a template. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 16: Programming & Operation
Master Code. It is ready to accept new programming data until you exit programming mode. Egress button DAP code Validation Press once 2 8 2 8 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 17: Refresh The System With The Refreshing Code
Code = 1, Lock-out 60 seconds after 10 False Codes/Cards User Code Entry Mode Code = 2, Manual Entry Mode Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 18: Master Code (Location 01)
4 to 8 digits cfr. “O/P 1 INH (User Group 1 Inhibit Control Input – Normally Open)” on p.8 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 19: Examples
“O/P 1 INH (User Group 1 Inhibit Control Input – Normally Open)” on p.8 cfr. “Personal safety and system lock-up (location 60)” on p.30 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 20: Common User Codes For User Groups 1 & 2 (Locations 03 & 04)
1 – Cards Only – 125Khz Proximity EM Card cfr. “DOOR SENS (Door Position Sensing Input – Normally Closed)” on p.11 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 21: Examples - Programming And Operation
Read Card Present the Card. A double beep confirms that the card is read and User Group 1 channel activates. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... - Page 22 (a) The card is programmed for operating User Group 1 channel (b) The operation mode is Card + Common User Code Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
- Page 23 (c) Confirm the deletion with #. All the User Codes and Cards in Group 1 are cleared. It takes a few seconds to a minute to complete depending on the amount of data stored. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
-
Page 24: Visitor Codes (For User Group Channel 1 Only) (Location 40)
The Visitor Codes can not reset the Duress Output (see “DUR O/P (Duress Output)” p.9). cfr. “DUR O/P (Duress Output)” on p.10 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 25: Examples
0 9 9 9 1. Visitor Code programming 2. Deletion command code 3. Confirmation, all visitor codes are cleared Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 26: Duress Codes (For User Groups 1 & 2) (Locations 41 & 42)
1. Duress Code for User Group 1 2. Duress ID See “DUR O/P (Duress Output)” on p. 8 for more information Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 27: Operation And Function Of The Duress Code
Duress Output keeps activating (keeps switching to (-) ground) & User Group Channel 1 activates again. cfr. “DUR O/P (Duress Output)” on p.10 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 28: Output Mode & Timing For User Group 1 & 2 Channels (Locations 51 & 52)
SUPER USER CODE # 1: User Group 1 channel deactivates (and timer is reset) SUPER USER CODE # 2: User Group 2 channel deactivates (and timer is reset) Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 29: Personal Safety And System Lock-Up (Location 60)
Press the # key once. A double beep confirms the entry. Notification tones on-off selection (location 71) Location Function modes Validation 1 or 0 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 30: Channel State Announcer (Location 72)
1: Standby flashing ON (default) The Status LED flashes during standby. It also indicates the operation status of the system. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 31: Door Forced Open Warning (Location 80)
“Intelligent Egress Button – A unique feature of the keypad” on p.31 see “DOOR SENS (Door Position Sensing Input -- Normally Closed)” on p.8 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 32: Intelligent Egress Button - A Unique Feature Of The Keypad
An egress button with a short delay and warning beeps helps the people outside to pay attention to the door opening, to prevent injuring them when the door is pushed outward. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 33: Egress Mode, Delay, Warning Beep And Alarm (Location 90)
0: No Delay (default). User Group 1 channel activates instantly when the Egress Button is pressed. See “ALM O/P (Alarm Output)” on p.12 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 34: Examples
Set Egress Button in Holding Mode with an Egress Delay of 10 seconds and Warning beeps 1. Egress function programming 2. Holding mode with Warning beeps Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 35: Exit Programming Mode (* *)
Always exit programming mode with * * to set the keypad back to normal operation after programming. Validation Keypad is back to normal operation mode. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 36: Programming Summary Chart
00: One time 4 0 CODE 1 CODE 2 CODE 3 # 01-99 hours CODE 3: Visitor Code 4-8 digits Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... - Page 37 1: Beep 1s 2: 2 short beeps MODE Standby LED flashing 0: OFF 7 3 MODE # 1 (ON) 1: ON Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
- Page 38 CODE 2: DELAY TIME 0: no delay 1-99: delay in seconds between button press and User Group 1 channel activation Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
- Page 39 40: Visitor Group 41: Duress Group 1 42: Duress Group 2 System back to normal operation EXIT PROGRAMMING CODE after programming Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
-
Page 40: Application Hints For The Auxiliary Terminals
Enable the function at Location 81. For more information see “Door propped-up warning (location 81)” on p.31. Cfr. “ALM O/P (Alarm Output)” on p.10 Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 41: Alarm Output
(location 90)” on p.33 for more information about these functions. Make sure that the sink current does not exceed the maximum rating of 100mA. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 42: Duress Output
It is recommended to use only one connection option. Make sure that the sink current does not exceed the maximum rating of 100mA. Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... -
Page 43: Auxiliary Information
Open collector output Output switches to ground when activated Equivalent N.O. contact output Output switches to ground when activated Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4... - Page 44 VMBKP Velbus – Legen Heirweg 33, BE-9890 Gavere, Belgium – tel. +32 9 384 36 11 – e-mail: info@velbus.eu – www.velbus.eu PN-VMBKP-ed1-A4...
