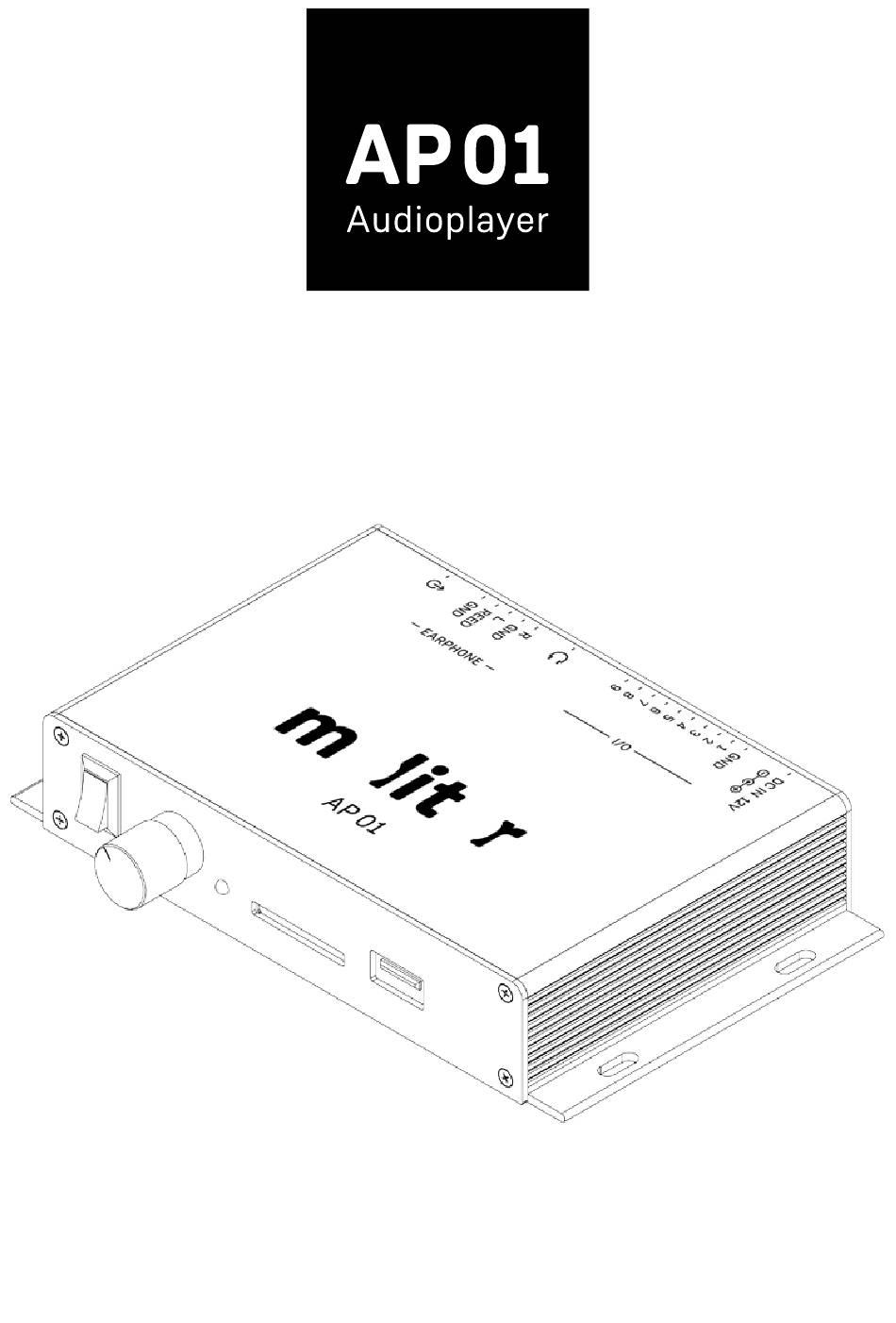

- Page 1 Instruction manual molitor...
-
Page 2: Table Of Contents
GmbH not only produces be carried out by qualified personnel. the internationally renowned USO and VIA hand- The new AP 01 molitor audio player plays back sets, but has also been planning and organis- audio files in premium quality and boasts prac- ing domestic and international exhibitions for tical functionality. -
Page 3: Technical Specifications
3. technIcal specIFIcatIons Article number molitor AP 01 Power supply and 12 V DC power consumption approx. 3 W / 215 mA Supported media SDHC (Secure Digital High Capacity) USB-Stick (USB Flash Drive) up to 64 GB Formatting FAT, NTFS, FAT32 •... -
Page 4: Overview
4. overvIew 135,4 156,5 ON / OFF switch Headphone output (3.5 mm stereo jack), adjustable volume Volume control 5-pin port for headphones or up to 2 hand- LED (red = power off / green = ready for use) sets und switch contacts (Phoenix plug: SDHC memory card slot R, GND, L, REED, GND), adjustable volume USB interface, type A... -
Page 5: Start-Up Procedure
USO or VIA have been picked up. Alternatively, you can also use a USB stick Up to nine more audio files can be called as the data storage. -
Page 6: Pin Assignment 10-Pin I/O Port
other applications / uses: The Scripts folder contains further playlists you can open the files using a text editor where for MP3 and WAV applications. To make use of you will be able to see the differences. Please these, please swap the playlist.txt file on the adhere to note no. -
Page 7: Pin Assignment Headphone Jack
7. pIn assIGnment headphone Jack Pin 1 = Audio output right Pin 2 = Ground (GND) Pin 3 = Audio output left Pin 4 = Switch contact (reed contact, yellow) Pin 5 = Ground (GND) (reed contact, green) Assigning pins when using bilingual audio files: You can connect the audio and reed contact For bilingual audio files, a USO / VIA with lan- circuits of up to two handsets. -
Page 8: Create Playlists Yourself
To download the list of commands and sample and can be created using any common text playlists, please visit editor program. You will also find an easy editor www.molitor-berlin.de/support molitor Gmbh Schlesische Straße 31 10997 Berlin tel +49 30 629019-0 fax +49 30 629019-19 The AP 01 audio player is CE certified.
