Summary of Contents for Habegger HIT-TRAC 16B

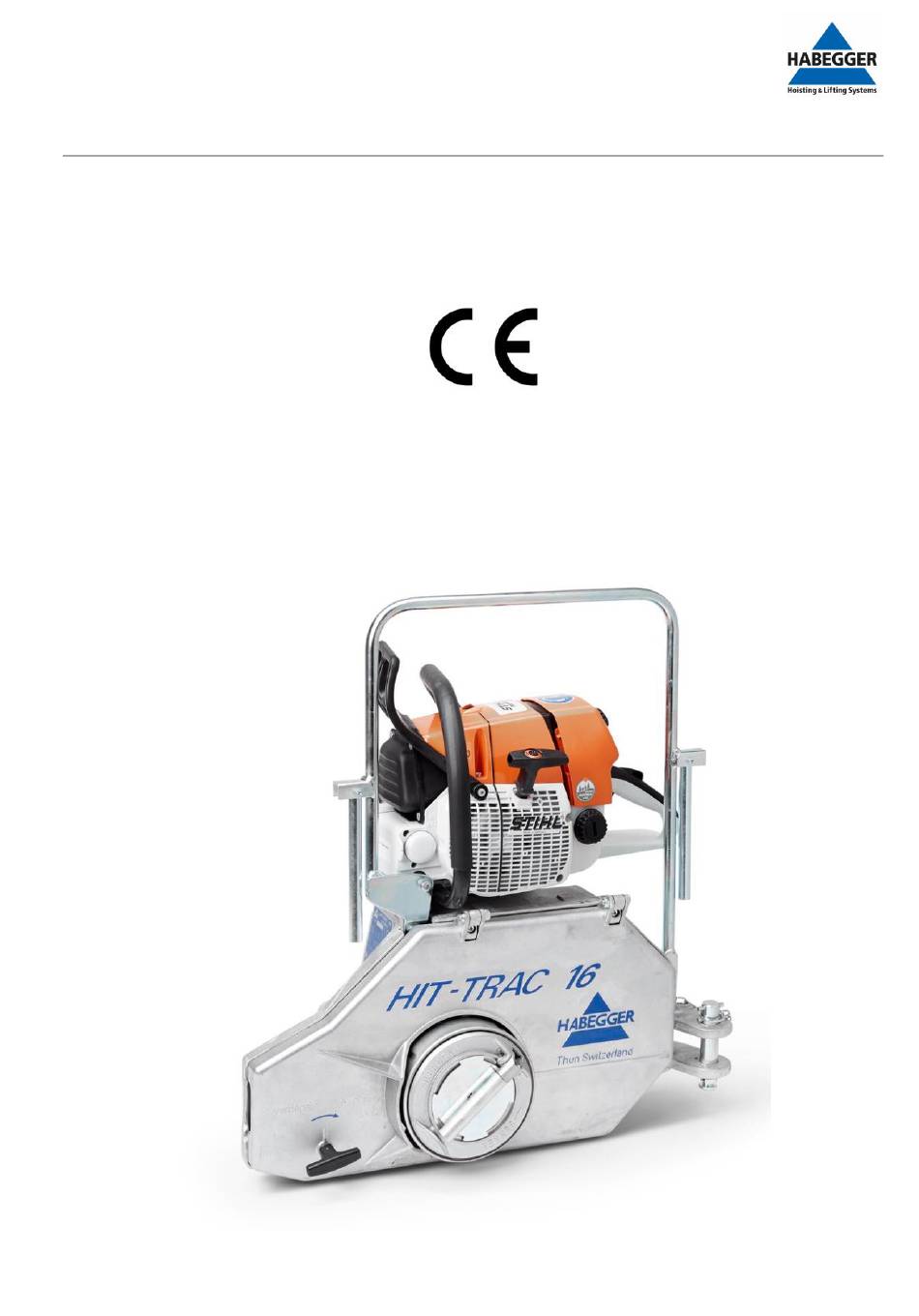

- Page 1 User Guide TGT. 27.09.2017 Technical Page 1 of 20 Original User Guide Version: 02 HIT-TRAC 16B 07016/11_HIT-TRAC 16B v=10m/min 5.2kW 07042_BA zu HIT-TRAC 16B ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...

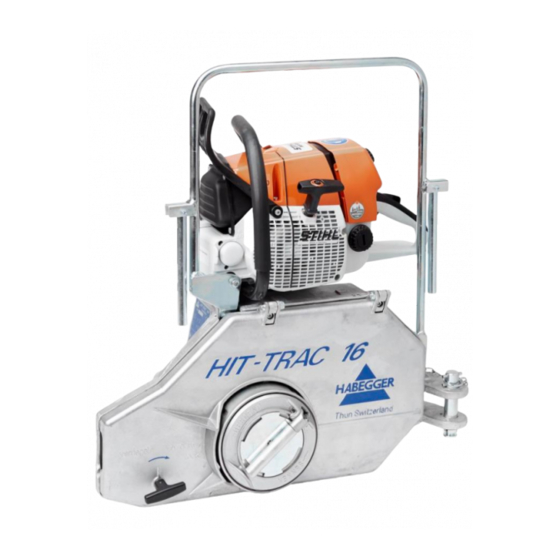

- Page 2 Motor-driven rope pulling machine HIT-TRAC® 16 with petrol motor Geräte Nr. /N° de la machine / Machine no.: ..........Art. Nr./ N° art./ Product. no.: ..........Motor-Nr. / N° du moteur / Motor no.: ..........Datum/Date/Date: ..........Unterschrift/Visa/Visa: ..........©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 3: Table Of Contents
Pulling and hoisting ..............................16 Lowering ..................................17 Faults ....................................18 Maintenance ..................................19 Replacement parts ................................19 Disposal ....................................20 Accessories ..................................20 10.1 Supporting pipe ................................20 10.2 Carrying handle ................................20 ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... - Page 4 Page 4 of 20 Warranty and Guarantee Habegger will grant the user replacement as well as installation and removal of any parts which are rendered unusable due to material or manufacturing errors. The warranty period (guarantee period) is 12 months.
- Page 5 This declaration of conformity also loses its validity if the relevant user guide and maintenance manual are not followed or are violated. Applicable EC directives: EC Machinery Directives 2006/42/EG Applied harmonised standards: EN ISO 12100: 2011-01 Location: Thun Date: 27. September 2017 Technical manager Thomas Gerber Urs Schneider ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 6: General Specifications
The motor-driven rope pulling machine HIT-TRAC 16 is designed for pulling, hoisting and lowering loads. Drive mechanism A special HABEGGER steel cable of desired length which is guided over the relevant guide elements by the driving wheel and then ejected in an unloaded state is used as the drive mechanism. -
Page 7: Assembly And Performance
Page 7 of 20 Assembly and performance Thrust roller Compression sleeve Rope guide Guiding pulley Lowering brake Anchor bolts Driving wheel Information sign Chain brake Cover fastening Starter motor Driving plate ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 8: Safety Instructions
Page 8 of 20 Safety instructions The HABEGGER motor-driven rope pulling machine HIT-TRAC 16 complies with current technical stand- ards. To protect against accidents it is equipped with effective safety devices as required by the recog- nised safety standards, guidelines and laws. -
Page 9: General Safety Instructions
- strong/heavy boulders - Trees - other suitable objects Technical anchorage points: - Habegger field anchor with piles - Rock bolt, concrete anchor - Round timber anchor in the ground - These anchors are highly dependent on soil conditions. Secure the machine to the anchoring bolts with sufficiently strong straps or loops. - Page 10 The reliability of the driving system is dependent on the condition of the traction rope. Rope construction and inherent stability (crush resistance, impact resistance) must be able to withstand the active loads. You should therefore only use ropes provided or approved by HABEGGER. The traction rope should not be lubricated.
- Page 11 Petrol motor See the safety instructions in the attached STIHL user guide. Danger! Wear ear defenders when working with the petrol motor! ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
-
Page 12: Approved Users
Actions in case of emergency Check before starting operation if and where you can get mobile phone reception or where there is an available telephone. Check the availability of a first-aid kit. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 13: Technical Specifications
Effective driving wheel diameter: 250 mm Dead weight rope pulling machine 42 kg Gear oil 0,2l / 80 W 90 Traction rope: Model HABEGGER 4 x 25 FW+FC galvanised Diameter 11.2 mm Length optional Breaking load 88 kN Petrol motor Driving motor:... -
Page 14: Operation
The rope pulling machine must be able to freely position itself in the direction in which the rope is mov- ing. Danger of housing breaking! Laying the rope. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 15: Insert Rope
Place load-bearing rope in guiding pulley. Place load-bearing rope in rope guide Place empty rope in empty rope guide Gently tighten rope using motor. Double check rope placement is correct. Close and lock cover ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 16: Pulling And Hoisting
Caution! If the brake release lever is not swivelled upwards, the load will fall at the lowering speed after the throttle lever is released. Pivot throttle lever upwards immediately In emergencies, e.g. in the case of jams: Block the motor using the chain brake. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 17: Lowering
Danger of falling! Pay attention to end of rope! The unloaded rope should slide into the machine freely and without kinks. Stop lowering at least 2 m before the end of the rope. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 18: Faults
Groove in driving wheel heavily soiled clean no load on rope Load rope The tension in the Brake wet Return to HABEGGER for repair rope cannot be relieved Chain brake engaged Release chain brake ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 19: Maintenance
Additionally, local regulations, as well as additional checks for severe operating conditions in short operating distances, must be implemented by a qualified professional. Replacement parts Replacement parts are provided on a separate list. This can be requested from HABEGGER. ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017... -
Page 20: Disposal
A carrying handle can be affixed to the rope pulling machine. HABEGGER Maschinenfabrik AG Mittlere Strasse 66 CH-3600 Thun, Switzerland Phone +41 (0)33 225 44 44 +41 (0)33 225 44 40 Email info@habegger-hit.ch Website www.habegger-hit.ch ©Copyright by Habegger Maschinenfabrik AG Version 02 / 27.09.2017...
