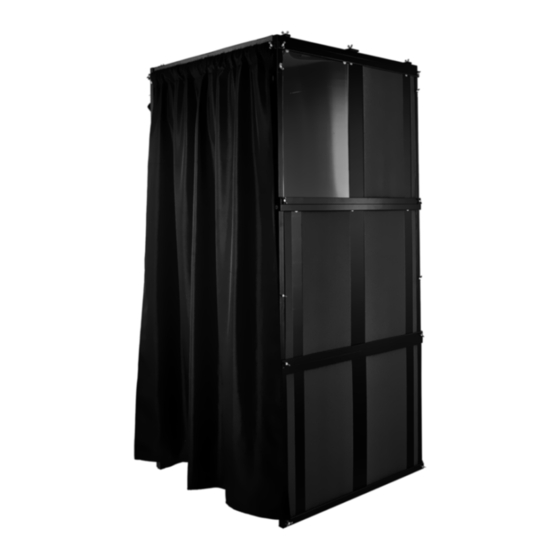

Summary of Contents for thomann t.akustik Vocal Booth
- Page 1 Vocal Booth portable vocal and singing booth assembly instructions...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 24.01.2019, ID: 444592 (V1)
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Installation............................................6 Technical specifications......................................10 Protecting the environment....................................11 Vocal Booth... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke! Never let children play unattended with the product. -
Page 5: Scope Of Delivery
Scope of delivery Scope of delivery Before you assemble your portable vocal and singing booth, make sure the contents of package is complete according to the fol‐ lowing list. Carton 1 4 × vertical frame bar S1…S4 1 × angle bar T1 5 ×... -
Page 6: Installation
Installation Installation Frame mounting Place all components on a suitable mounting surface for mounting. Use a soft padding to prevent damages to the surfaces. When aligning the poles, pay attention to the positions of the attached stickers. Connect S2 and S3 at the top to a P1 and lightly tighten the two thumbscrews. Connect S3 and S4 at the top to a P1 and lightly tighten the two thumbscrews. - Page 7 Installation Connect S5 and S6 at the top to a P1 and lightly tighten the two thumbscrews. Connect S6 and S7 at the top to the P3 and lightly tighten the two thumbscrews. Connect S7 and S8 at the top to a P1 and lightly tighten the two thumbscrews. Now plug this part onto the first by plugging S5 on S1, S6 on S2, etc.
- Page 8 Installation Attaching foam sheets and plexiglass window Foam cover sheet 2 LED light Foam cover sheet 1 Plexiglass window Foam sheet B Foam sheets A Push the foam sheets into the frame structure. Also push the plexiglass window into the frame structure. Attach the LED light to the intended position, e.g.
- Page 9 Installation Mounting the curtain Slide the curtain onto a P2. Attach the P2 to the curtain using two thumbscrews on the frame structure. Vocal Booth...
-
Page 10: Technical Specifications
Technical specifications Technical specifications Colour Black-anthracite Curtain colour black Material Stainless steel Dimensions (W × H × D) Outside: 1000 mm × 2100 mm × 1000 mm Inside: 930 mm × 2070 mm × 930 mm Weight In total: approx. 55 kg Carton 1 and 2: each 20 kg Carton 3: 15 kg Frame bar dimensions (L ×... -
Page 11: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 12 Notes portable vocal and singing booth...
