Attention
This product uses the following terms to classify the potential hazards that may be caused by
improper operation.
Note: If not follow the instructions, it may cause property damage, major accidents and serious
injuries.
Warning: Misuse of this product may result in injury, damage or loss of property. Read the
manual carefully before using this product. This item is not a toy. This item is intended for use by
professional UAV operators and installers only. Donot use this product if you lack the knowledge
and expertise to install and maintain UAV radio equipment. Do not use unapproved or unofficial
components with this system. Operators must strictly follow the operation guides set forth in this
manual. Skydroid does not accept any liability for the use or misuse of this product.
1、Main purpose and scope of application
It is used to remotely operate helicopters, fixed wings, multi-rotors, vehicles, ships, etc. for video
image transmission (optional camera), data transmission, and control drone flight.
2、Specifications
Receiver Specification
Model No.
Working Voltage
Size

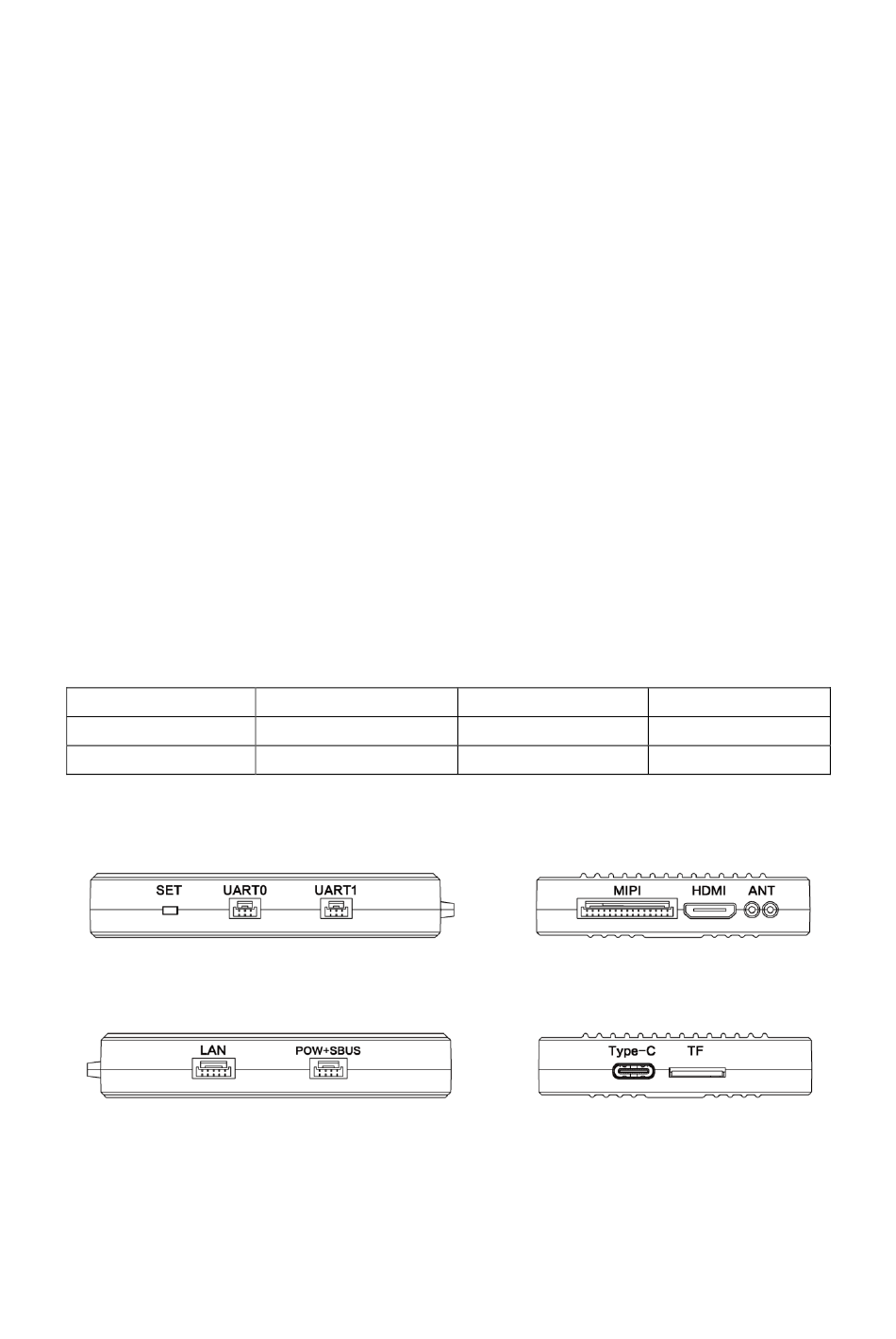

3、The composition of the model and its significance
SKYDROID R16
User Manual V1.0
R16
42V
76*59*11MM
Channels
RF Power
Weight
16
20DB
90G
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Skydroid R16
- Page 1 UAV radio equipment. Do not use unapproved or unofficial components with this system. Operators must strictly follow the operation guides set forth in this manual. Skydroid does not accept any liability for the use or misuse of this product. 1、Main purpose and scope of application It is used to remotely operate helicopters, fixed wings, multi-rotors, vehicles, ships, etc.
- Page 2 Number Annotation Number Annotation Network port Uart 0 Power and Sbus input Uart1 MIPI 摄像头接口 Type-C TF slot HDMI input Button for binding 4、Port definition...
- Page 3 5、Environment conditions Pay attention A） Working temperature b） Storage temperature c） Relative humidity d） Atmospheric pressure e） Working environment should not contain explosive material or any corrosive or harmful gas may cause interference in the operation of the product. f） Always work under shelter to prevent rain, snow, wind, sand and dust contamination. 6、Working conditions Power supply and attentions H16 series uses a built in Li-ion battery.
- Page 4 Part one Operation 1、Preparation and pre-checking before use Pay attention ① Check battery level. ② Check position of the antenna to get the best performance ③ Make sure the firmware is the latest version ④ DO NOT operate under the influence of alcohol or drugs 2、Operation Language setting ①...
- Page 5 Part two Status bar ①②③④ ⑤ ⑥ ⑦ ① Icon for connecting internet by network port or USB ② Icon for connecting well between the TX and RX (icon in picture shows no connecting with ③ Icon for Power level ④...
- Page 6 firmware, and modify the receiver’s serial port baud rate (password 999, it is only for professional debugging) Part four Binding operation ① After powering on the receiver, wait 3-5 seconds, then press and hold the receiver “SET”, and release “SET” when the white light flashes ②...
- Page 7 Part six Joystick calibration Click on the rudder value in the H16 helper to view, and refer to the value for calibration ① When the remote controlscreen is completely off, center the knob. Long press the C and D keys in the six-position switcher, then slide the screen up and wake up the screen ②...
- Page 8 ③ Change the video source to RTSP Video Stream ④ Enter RTSP address of the video/image to RTSP URL Showing MIPI, HDMI video/image ① Enter “rtsp://192.168.0.10:8554/H264Video” to RTSP URL is OK Take QGC as the example for reference to connect data/telemetry transmission ①...
- Page 9 Part nine How to share internet, video/image transmission and data/telemetry transmission ① Sharing network When the remote control is connected to the Internet via the USB wireless internet card, the hotspot of the remote control can be turned on for network sharing ②...
- Page 10 ① ② ④ ⑤ ③ ⑥ （4）Download VLC exe. to show video/image （5）Open VLC and choose network streaming （6）Enter “rtsp://192.168.43.1:8554/fpv_stream” to URL and click “play” ①...
- Page 11 ② ③ Q & A 1. Can the remote control install other apps? The permissions of the remote control are all open, and there is no special software or restricted software installation and uninstallation. 2. How does the remote control enter the fast charge mode? Only under using the original charger to enter the fast charge mode, and there is a text prompt on the lock screen interface 3.
-
Page 12: Fcc Statement
Please check if there is a hotspot connected to the remote control 3、Maintenance, servicing Storage for not using certain period Put H16/H16 Pro in a dry and ventilated area. No direct sun light to prevent harm to the internal li-ion battery. If store it over three months, it is highly recommended to put room temperature between 22℃to 28 ℃.
