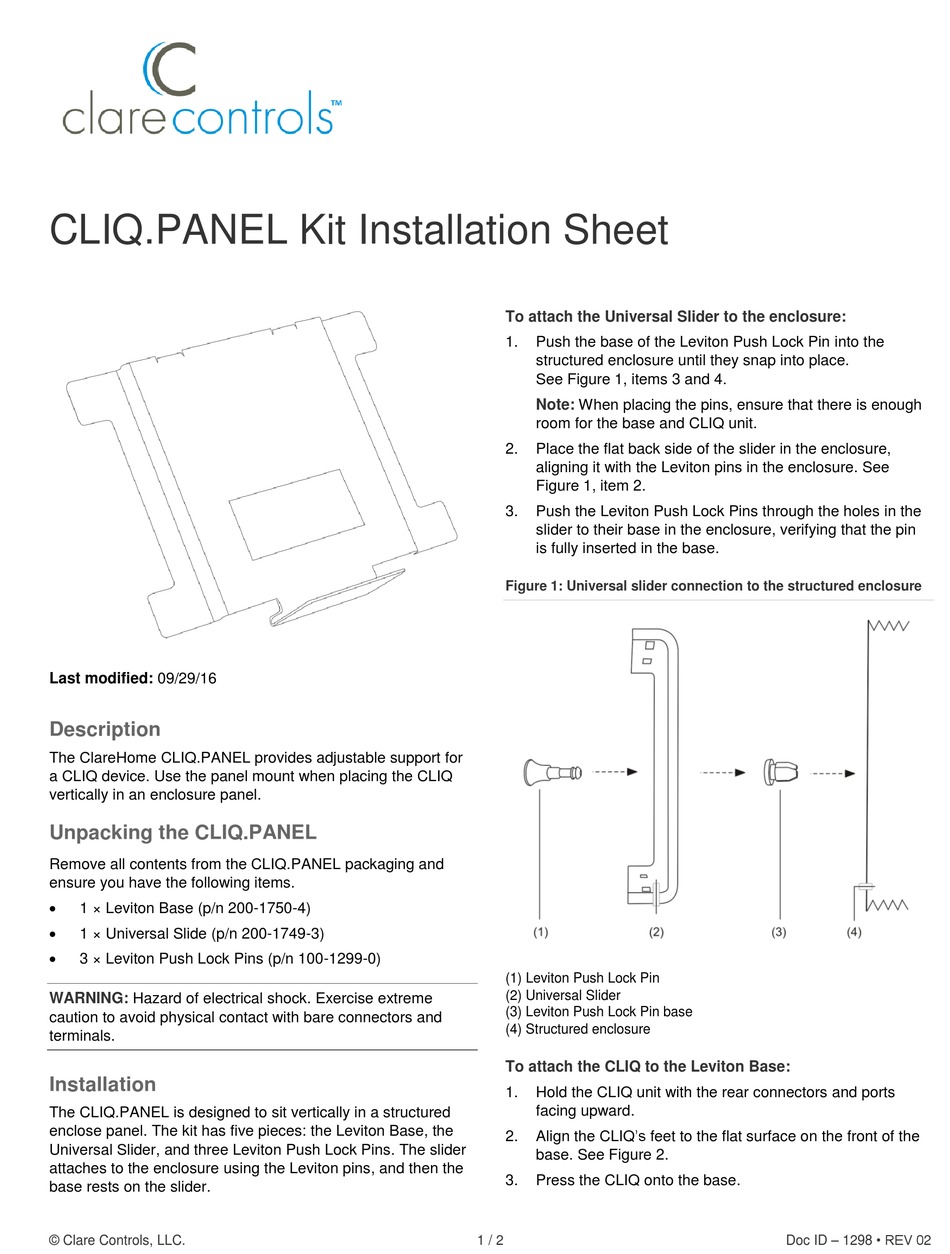

CLIQ.PANEL Kit Installation Sheet
Last modified: 09/29/16

Description

The ClareHome CLIQ.PANEL provides adjustable support for
a CLIQ device. Use the panel mount when placing the CLIQ
vertically in an enclosure panel.

Unpacking the CLIQ.PANEL

Remove all contents from the CLIQ.PANEL packaging and
ensure you have the following items.

1 × Leviton Base (p/n 200-1750-4)

1 × Universal Slide (p/n 200-1749-3)

3 × Leviton Push Lock Pins (p/n 100-1299-0)
WARNING: Hazard of electrical shock. Exercise extreme
caution to avoid physical contact with bare connectors and
terminals.

Installation

The CLIQ.PANEL is designed to sit vertically in a structured
enclose panel. The kit has five pieces: the Leviton Base, the
Universal Slider, and three Leviton Push Lock Pins. The slider
attaches to the enclosure using the Leviton pins, and then the
base rests on the slider.
© Clare Controls, LLC.
To attach the Universal Slider to the enclosure:
1. Push the base of the Leviton Push Lock Pin into the
structured enclosure until they snap into place.
See Figure 1, items 3 and 4.
Note: When placing the pins, ensure that there is enough
room for the base and CLIQ unit.
2. Place the flat back side of the slider in the enclosure,
aligning it with the Leviton pins in the enclosure. See
Figure 1, item 2.
3. Push the Leviton Push Lock Pins through the holes in the
slider to their base in the enclosure, verifying that the pin
is fully inserted in the base.
Figure 1: Universal slider connection to the structured enclosure
(1) Leviton Push Lock Pin
(2) Universal Slider
(3) Leviton Push Lock Pin base
(4) Structured enclosure
To attach the CLIQ to the Leviton Base:
1. Hold the CLIQ unit with the rear connectors and ports
facing upward.
2. Align the CLIQ's feet to the flat surface on the front of the
base. See Figure 2.
3. Press the CLIQ onto the base.
