Joranalogue GENERATE 3 Manual

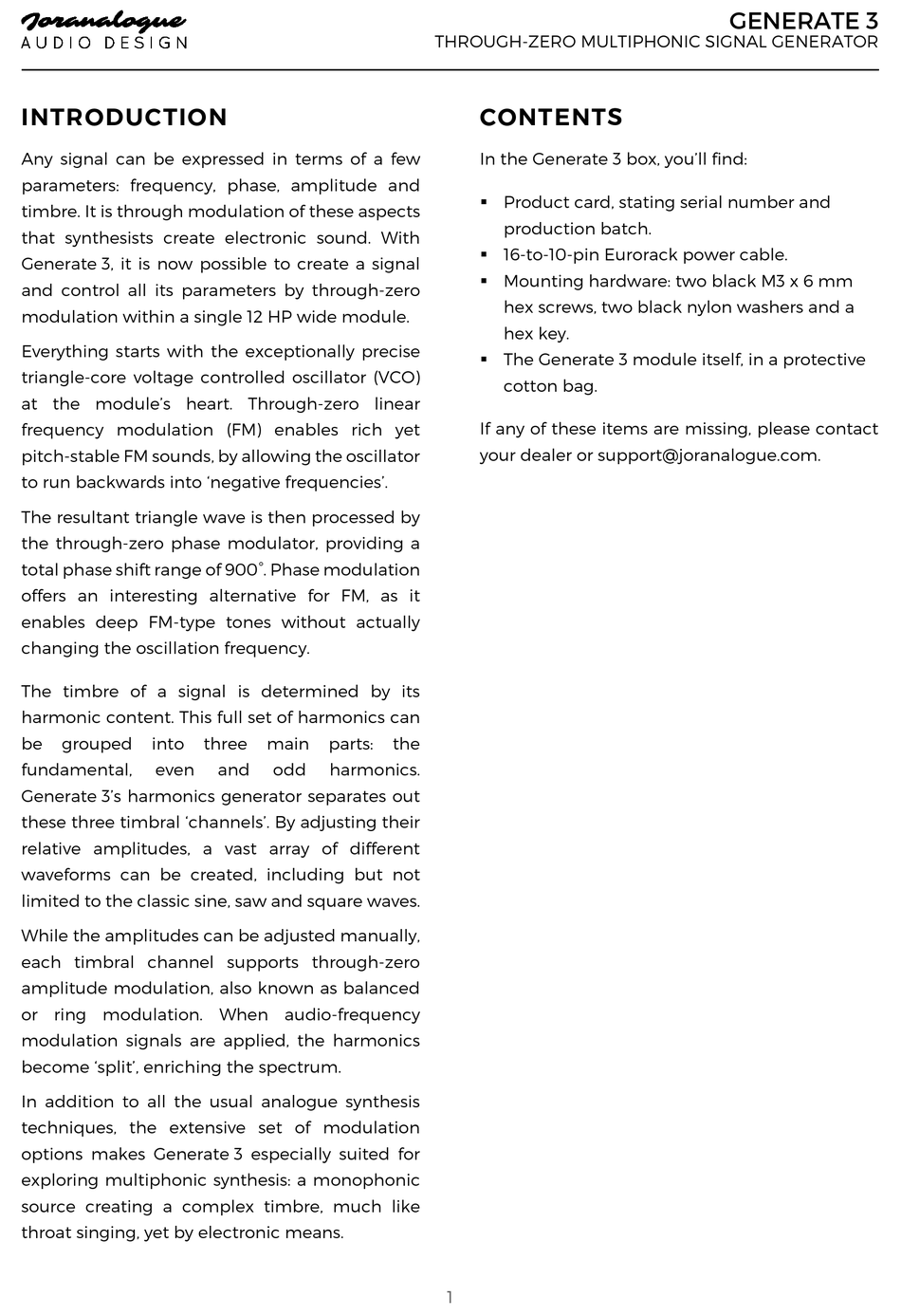

INTRODUCTION
Any signal can be expressed in terms of a few
parameters: frequency, phase, amplitude and
timbre. It is through modulation of these aspects
that synthesists create electronic sound. With

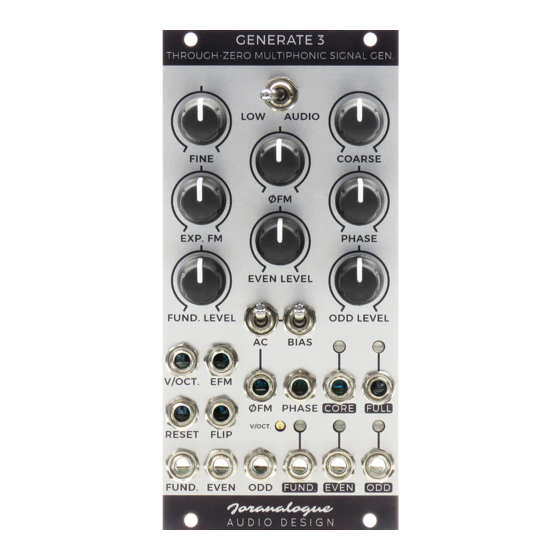

Generate 3, it is now possible to create a signal
and control all its parameters by through-zero
modulation within a single 12 HP wide module.
Everything starts with the exceptionally precise
triangle-core voltage controlled oscillator (VCO)
at the module's heart. Through-zero linear
frequency modulation (FM) enables rich yet
pitch-stable FM sounds, by allowing the oscillator
to run backwards into 'negative frequencies'.
The resultant triangle wave is then processed by
the through-zero phase modulator, providing a
total phase shift range of 900°. Phase modulation
offers an interesting alternative for FM, as it
enables deep FM-type tones without actually
changing the oscillation frequency.
The timbre of a signal is determined by its
harmonic content. This full set of harmonics can
be grouped into
fundamental, even
Generate 3's harmonics generator separates out
these three timbral 'channels'. By adjusting their
relative amplitudes, a vast array of different
waveforms can be created, including but not
limited to the classic sine, saw and square waves.
While the amplitudes can be adjusted manually,
each timbral channel supports through-zero
amplitude modulation, also known as balanced
or ring modulation. When audio-frequency
modulation signals are applied, the harmonics
become 'split', enriching the spectrum.
In addition to all the usual analogue synthesis
techniques, the extensive set of modulation
options makes Generate 3 especially suited for
exploring multiphonic synthesis: a monophonic
source creating a complex timbre, much like
throat singing, yet by electronic means.
three main parts:
and odd harmonics.
THROUGH-ZERO MULTIPHONIC SIGNAL GENERATOR
CONTENTS
In the Generate 3 box, you'll find:
 Product card, stating serial number and
production batch.
 16-to-10-pin Eurorack power cable.
 Mounting hardware: two black M3 x 6 mm
hex screws, two black nylon washers and a
hex key.
 The Generate 3 module itself, in a protective
cotton bag.
If any of these items are missing, please contact
your dealer or support@joranalogue.com.
the
1
