RWD WJH1355-2 Operation Instructions

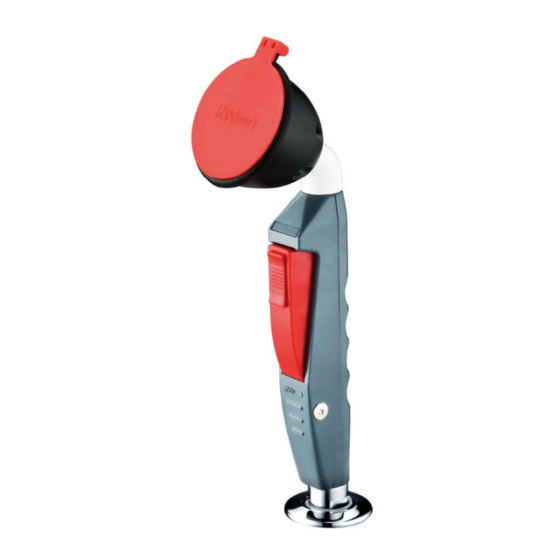

Operation instructions of bench removable eye wash (WJH1355)

Using

※
Security Eye-washing sprayer is not only the essential equipment of labors protection but
also the essential protection facilities against poisonous and corrosive material. If
accidents happen, please reduce the hurt to the minimum degree by quickly spraying and
washing the hurt with the sprayer.

Product performance characteristic

※
1. The shell of eye wash is ABS plastic injection molding, handfeel comfortable,
ergonomic design.
2. Bench Installation, usually placed on the worktop, when emergency, to draw out
optional, use convenient.
3. Has the self-locking function, switch is flexible, suitable for emergency use situation.
4. The outlet hole made special reducer processing, so the water flow more soft, rich.

Main technical parameter

※
Pressure grade (MPa)
Normal Seal
pressure pressure
0.4

※Installing instruction:

A. Installation Environment
1. Before installing, should confirm whether the inlet pipe is installed completely and
washing, to ensure that no impurities in the pipe.
.
2 Inlet water pressure requirement:0.15Mpa<inlet water pressure<0.4Mpa
B. Installation steps
1. Before installation, please make sure have 32 mm diameter hole is drilled.
2. Remove the stable sleeve in the tray, end of lock nut and flat washer etc.
3. The hose through the tray, taper mother upwards.
4.Put the stable sleeve into the hose, install in the hole of tray.
5.Screw the taper mother of hose (built in
main body.
Working
pressure
0.45 0.20~0.40
Flux Applicable condition
L/min
The normal temperature pure
water or conforms to the hygienic
≥6
) into the end screw thread of eye wash
cushion
standard water
